M.2 boot adapter cable routing
Follow the instructions in this section to learn how to do cable routing for the M.2 boot adapter.
Note
When routing the cables, make sure that all cables are routed appropriately through the corresponding cable guides and cable clips.
Internal M.2 boot adapter

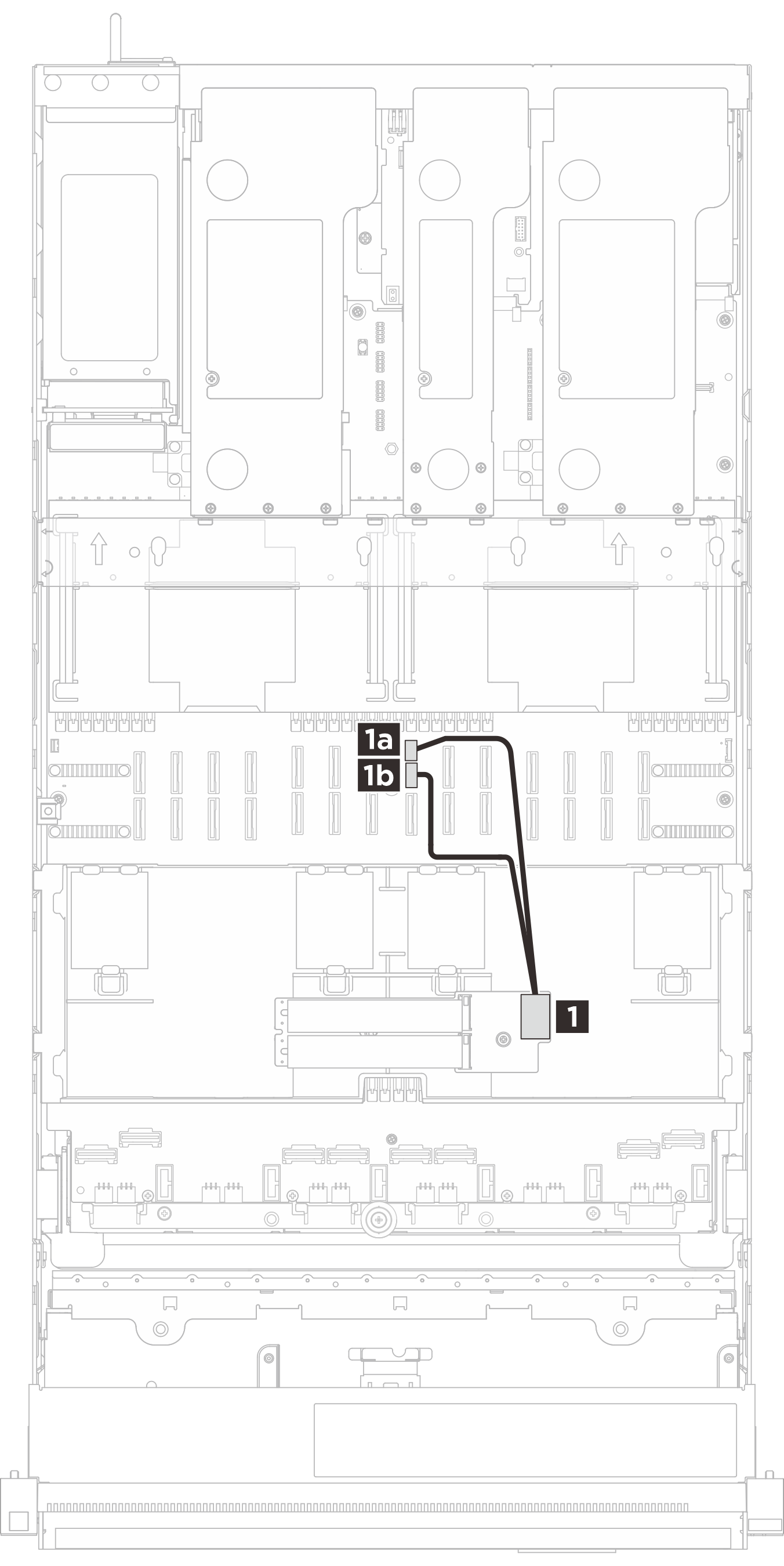

Figure 1. Cable routing for the internal M.2 boot adapter
| Cable | From | To |
|---|---|---|
| MCIO x4+2x10p to ULP 82p (300/300 mm) | 1 Internal M.2 boot adapter | 1a M.2 power connector |
| 1b M.2 signal connector |
Rear M.2 boot adapter

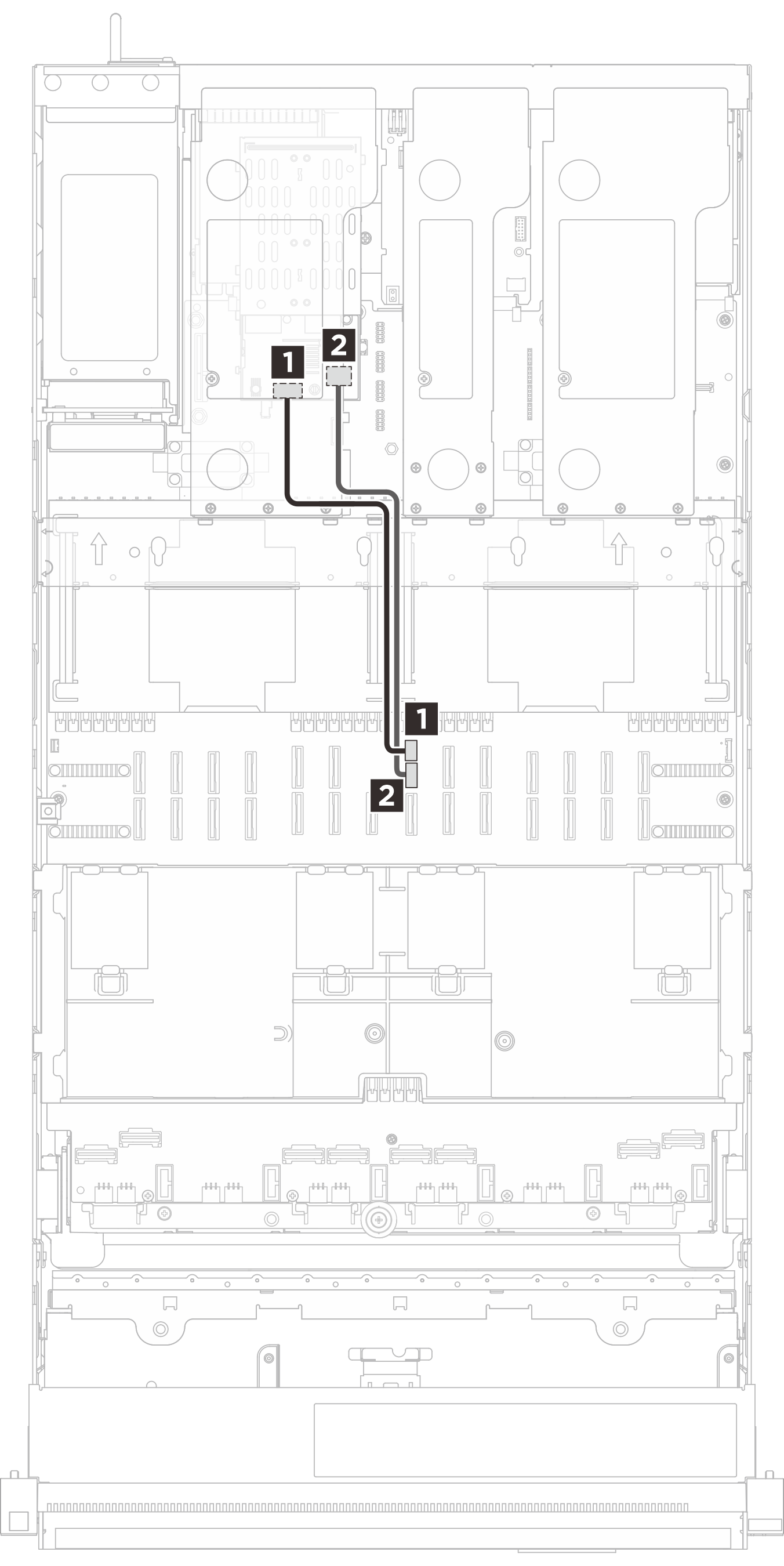

Figure 2. Cable routing for the rear M.2 boot adapter
| Cable (length) | From | To |
|---|---|---|
| 2x10p to 2x10p (520 mm) | 1 M.2 power connector | 1 M.2 power connector |
| MCIO x4 to MCIO x4 (520 mm) | 2 M.2 signal connector | 2 M.2 signal connector |
