Serial port cable routing
Follow the instructions in this section to learn how to do cable routing for the serial port module.
Note
Route the serial port cable as shown in the following illustration. Make sure that the cable is not routed across the system I/O board (DC-SCM).

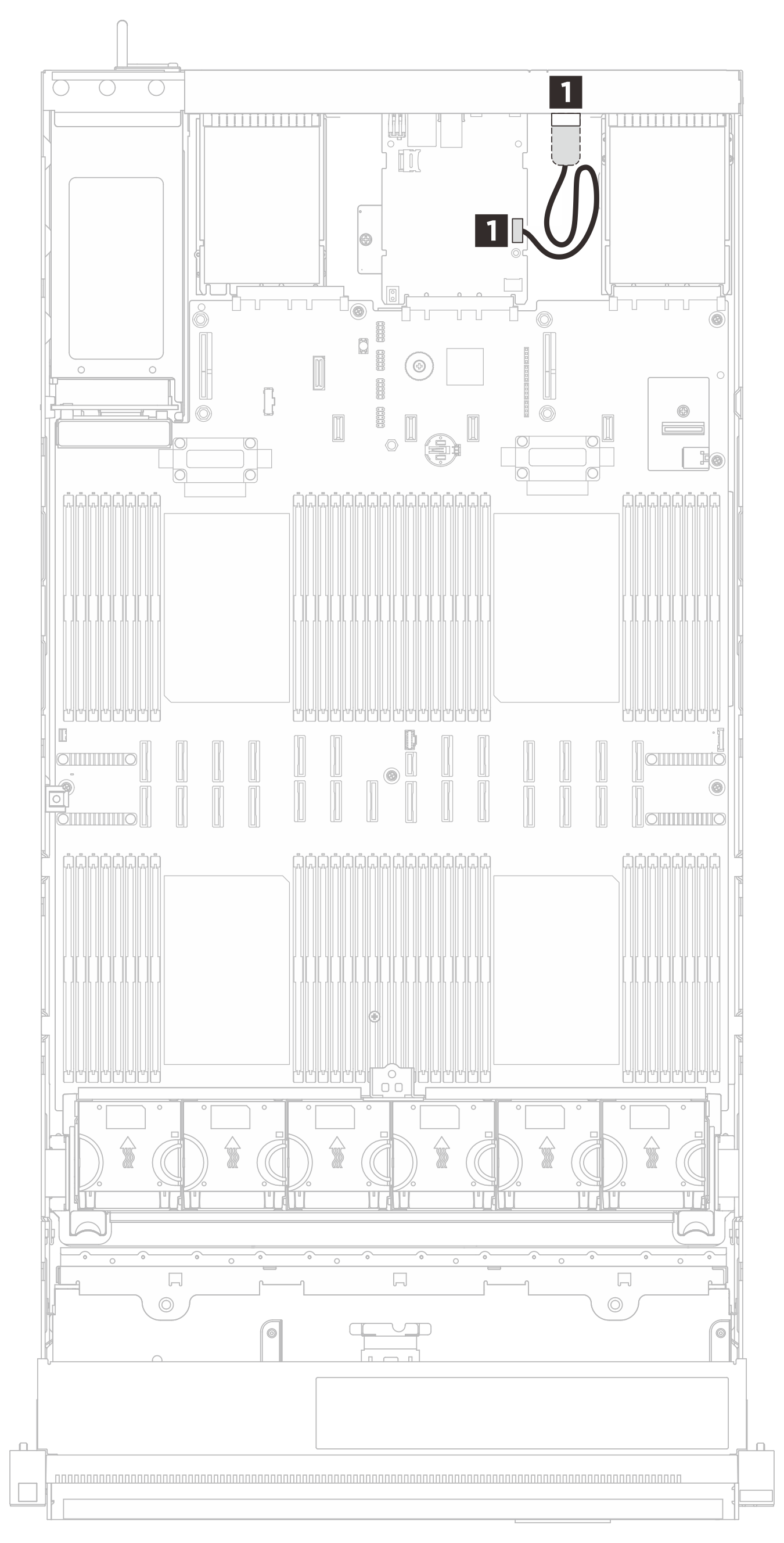

Figure 1. Cable routing for the serial port module
| Cable | From | To |
|---|---|---|
| 2x6p to com port 9p (220 mm) | 1 Serial port connector | 1 Serial port module |
