Flash power module cable routing
Follow the instructions in this section to learn how to do cable routing for the RAID flash power modules (supercap).
Note
When routing the cables, make sure that all cables are routed appropriately through the corresponding cable guides and cable clips.
Based on the location of the RAID adapter, select the corresponding routing path from the following table.

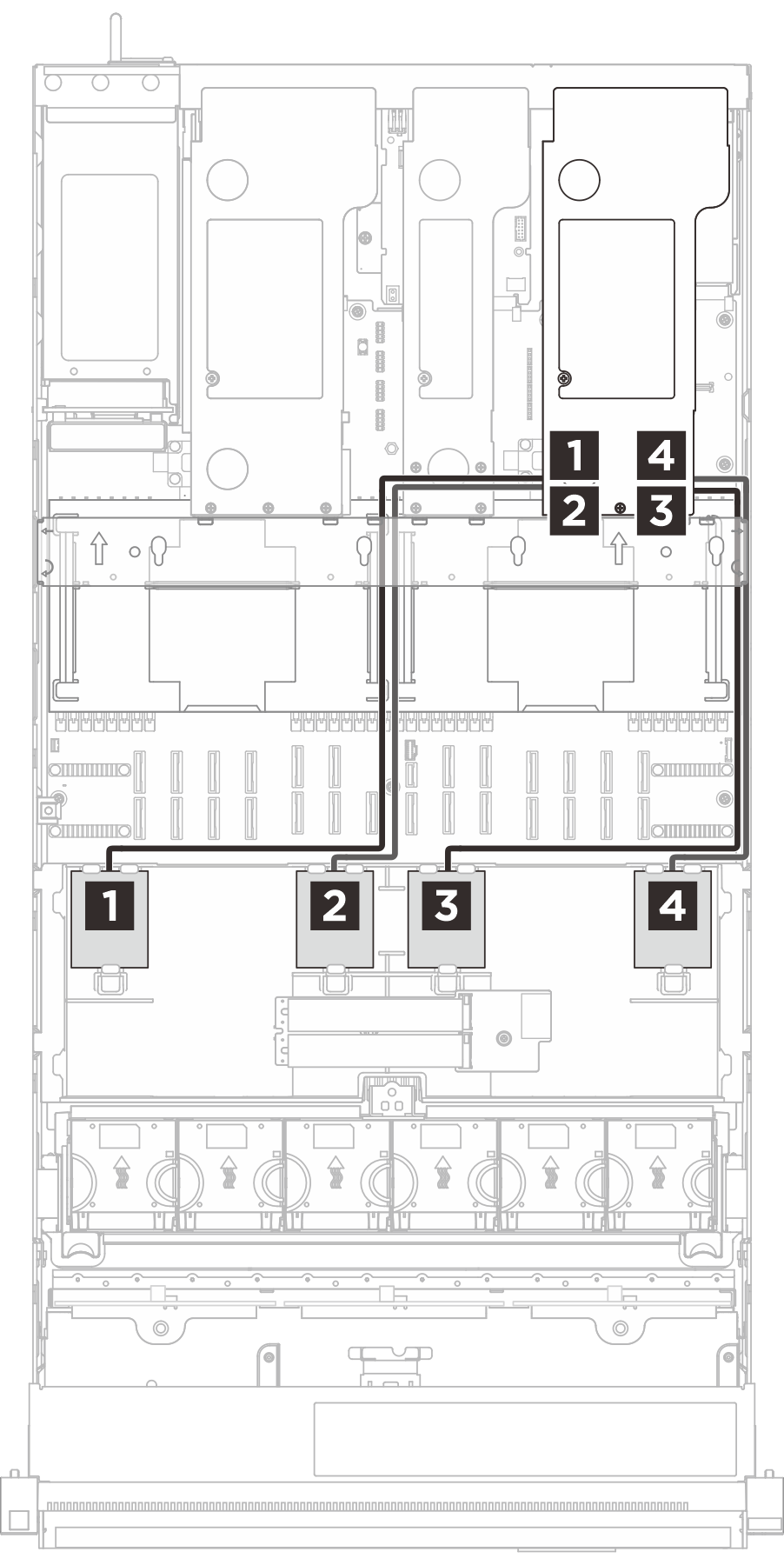

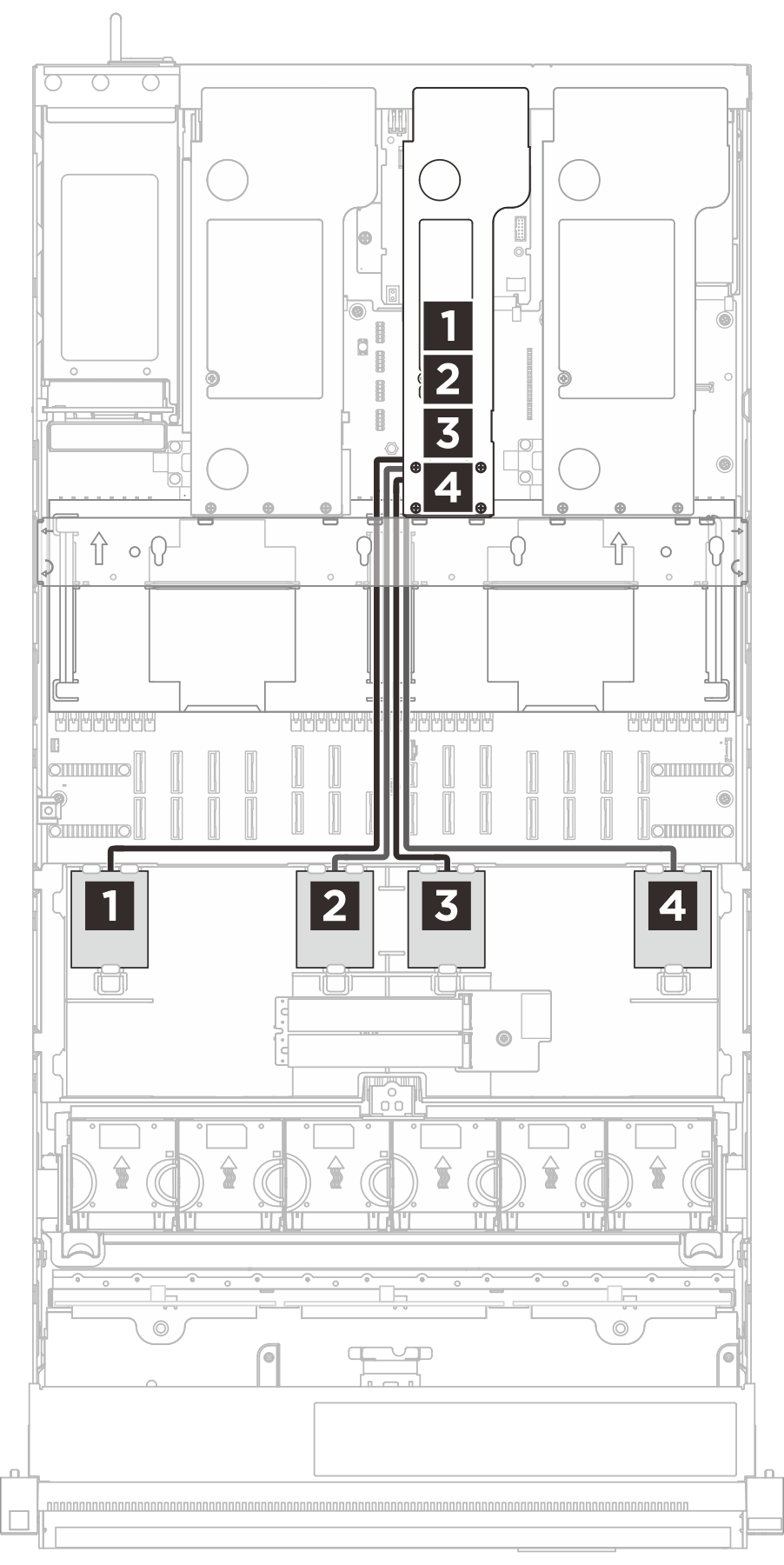

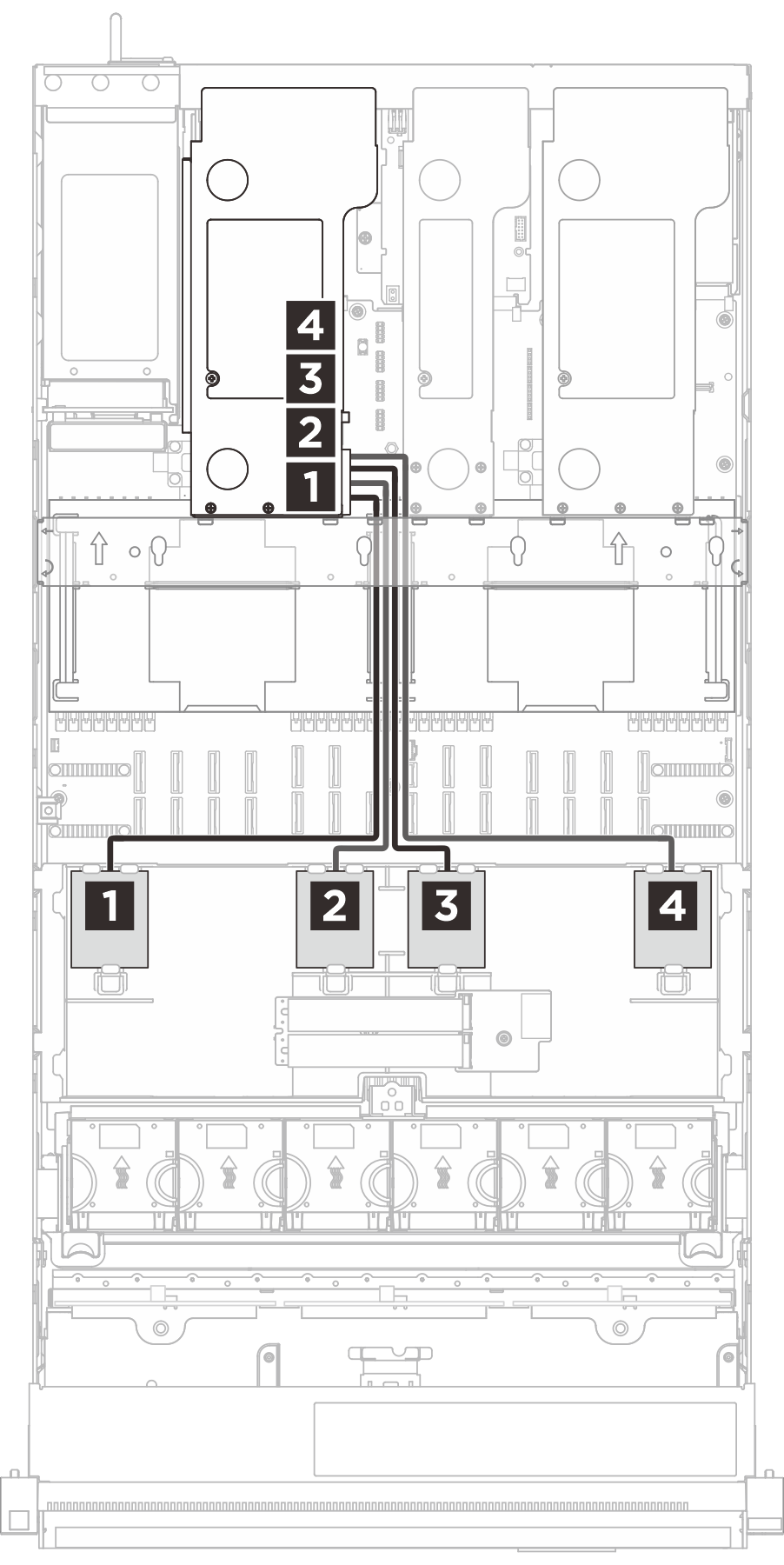

| Cable routing to riser 3 | Cable routing to riser 2 | Cable routing to riser 1 |
|---|---|---|
 |  |  |
| Cable | From | To |
|---|---|---|
| 2x4p to 1x9p (680 mm) | 1 Flash power module | 1 RAID adapter on the riser |
| 2x4p to 1x9p (680 mm) | 2 Flash power module | 2 RAID adapter on the riser |
| 2x4p to 1x9p (680 mm) | 3 Flash power module | 3 RAID adapter on the riser |
| 2x4p to 1x9p (680 mm) | 4 Flash power module | 4 RAID adapter on the riser |
