Rack latch cable routing
Follow the instructions in this section to learn how to do cable routing for rack latches.
Note
When routing the cables, make sure that all cables are routed appropriately through the corresponding cable guides and cable clips.

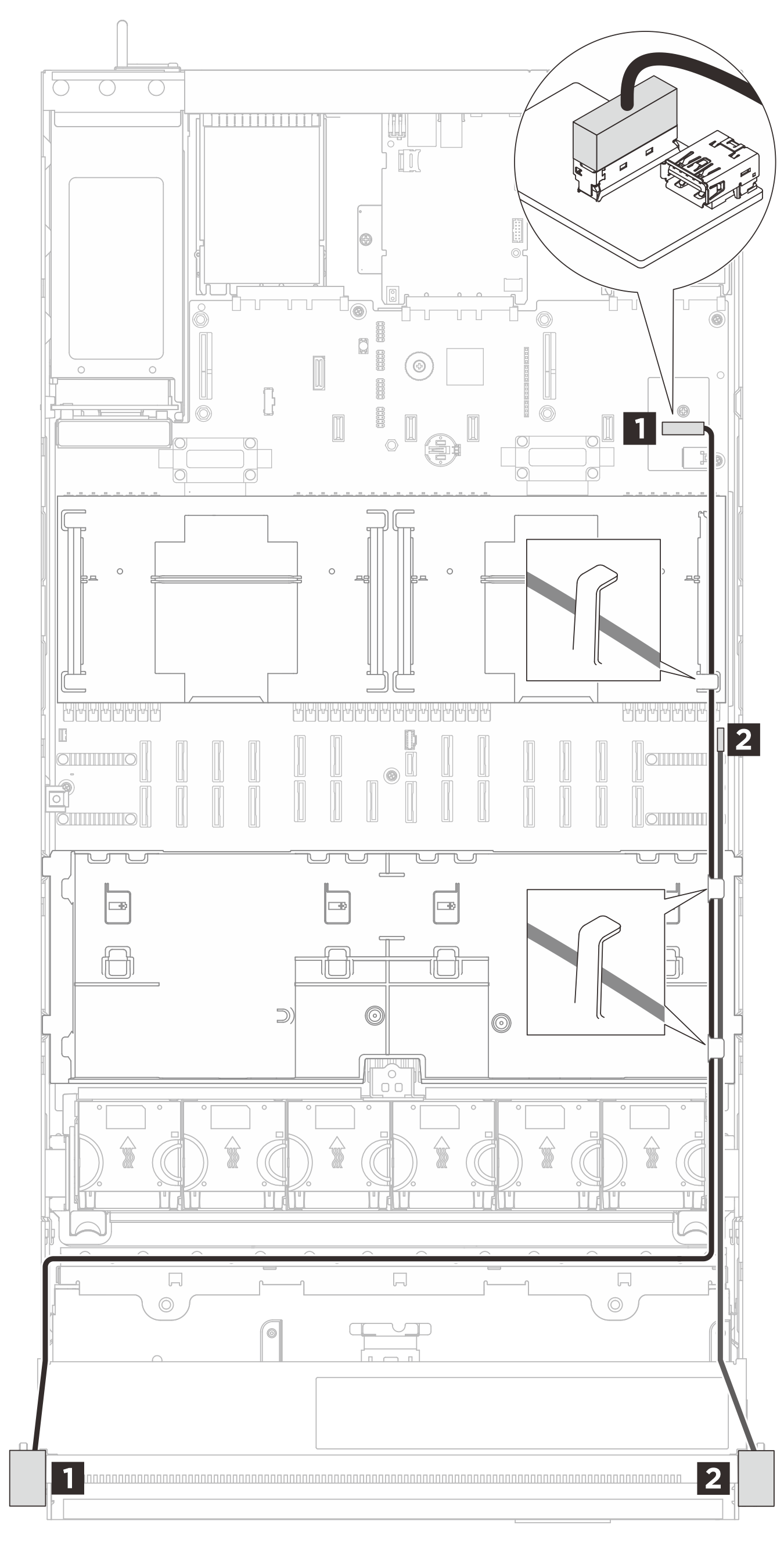

Figure 1. Cable routing for the rack latches
| Cable | From | To |
|---|---|---|
| MCIO x8 to USB 2x/Mini HD(1200 mm) | 1 Internal USB I/O board | 1 Left rack latch |
| 1x9p to PCBA (550 mm) | 2 FIO connector | 2 Right rack latch |
