GPU cable routing
Follow the instructions in this section to learn how to do cable routing for double-wide GPU adapters.
Note
When routing the cables, make sure that all cables are routed appropriately through the corresponding cable guides and cable clips.

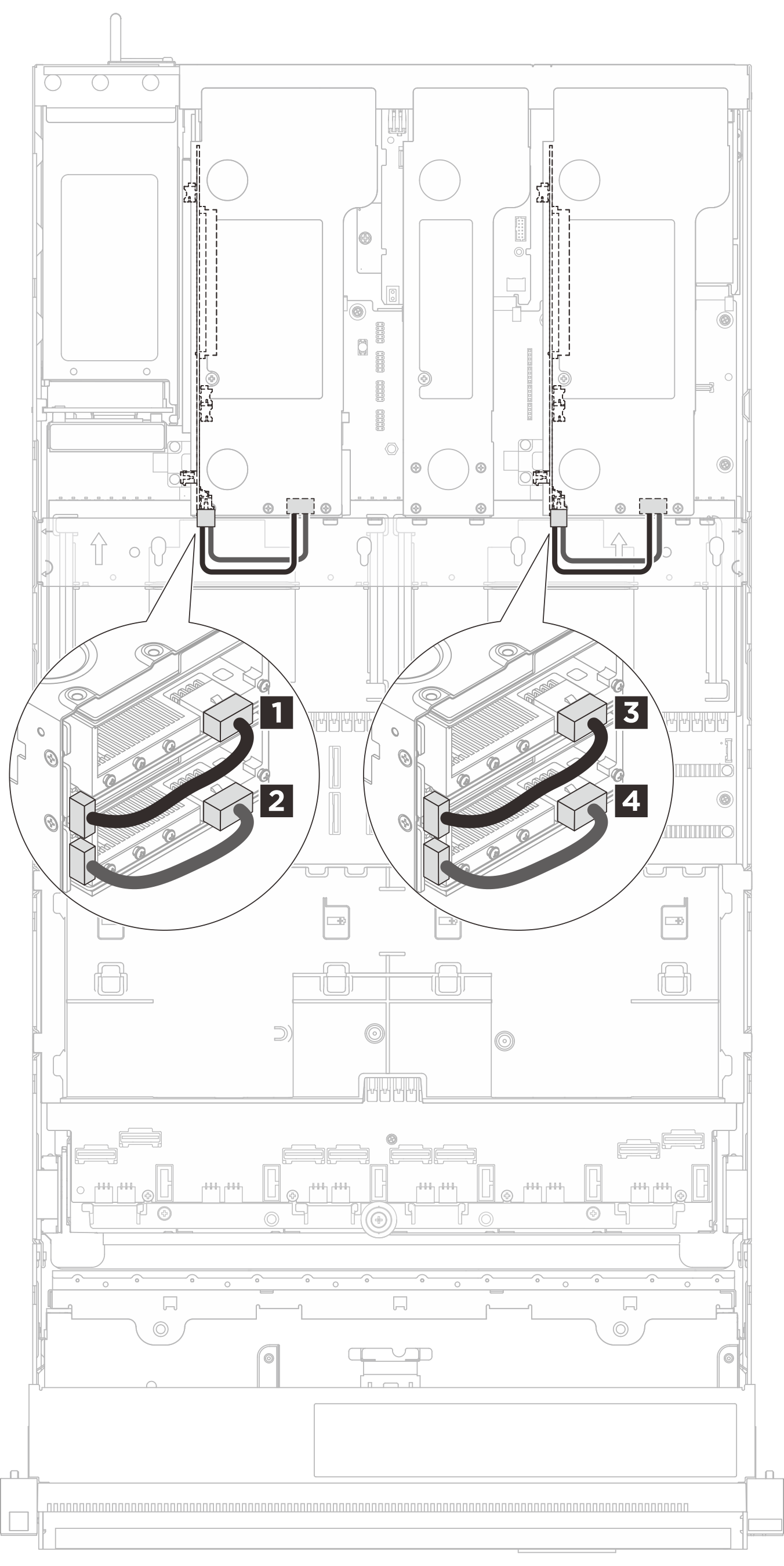

Figure 1. Cable routing for DW GPUs
| Cable | From | To |
|---|---|---|
| Micro-Hi 2x4 to MPIC 12p+4s (200 mm) | 1 GPU power 1 connector on riser 3 | 1 GPU on PCIe slot 16 |
| Micro-Hi 2x4 to MPIC 12p+4s (200 mm) | 2 GPU power 2 connector on riser 3 | 2 GPU on PCIe slot 18 |
| Micro-Hi 2x4 to MPIC 12p+4s (200 mm) | 3 GPU power 1 connector on riser 1 | 3 GPU on PCIe slot 4 |
| Micro-Hi 2x4 to MPIC 12p+4s (200 mm) | 4 GPU power 2 connector on riser 1 | 4 GPU on PCIe slot 6 |
