Power distribution board cable routing
Follow the instructions in this section to learn how to do cable routing for the power distribution board.
Note
When routing the cables, make sure that all cables are routed appropriately through the corresponding cable guides and cable clips.

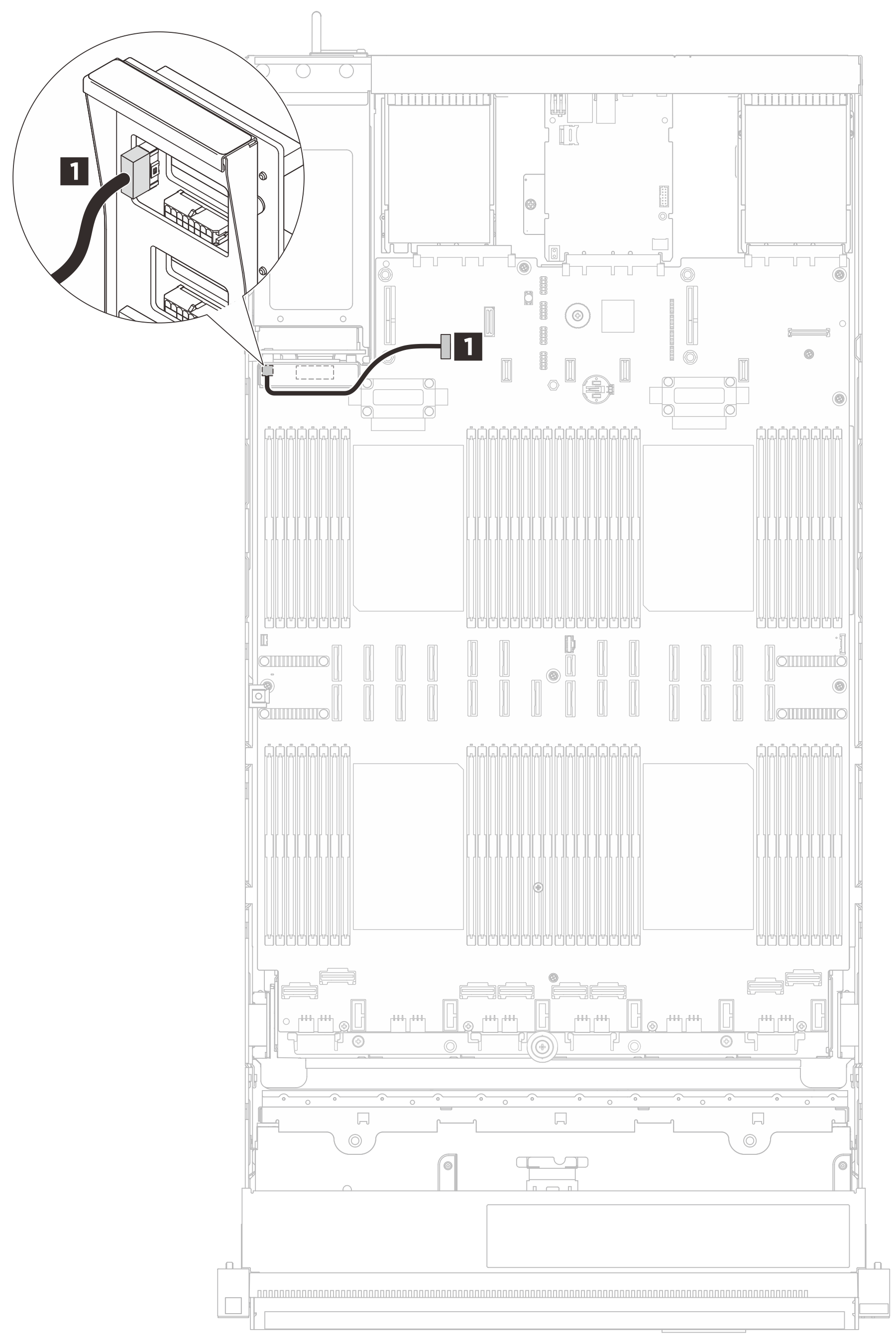

Figure 1. Cable routing for the power distribution board
| Cable | From | To |
|---|---|---|
| 2x15p ST to 2x15p (210 mm) | 1 PDB sideband connector | 1 PDB sideband power connector |
