Intrusion switch cable routing
Follow the instructions in this section to learn how to do cable routing for intrusion switch.
Note
When routing the intrusion switch cable, route the cable through the cable clip on the air baffle as shown in the illustration. Ensure that the cable does not touch the VR area (marked in dotted lines) on the system board assembly and is not entangled with other high-speed signal cables.

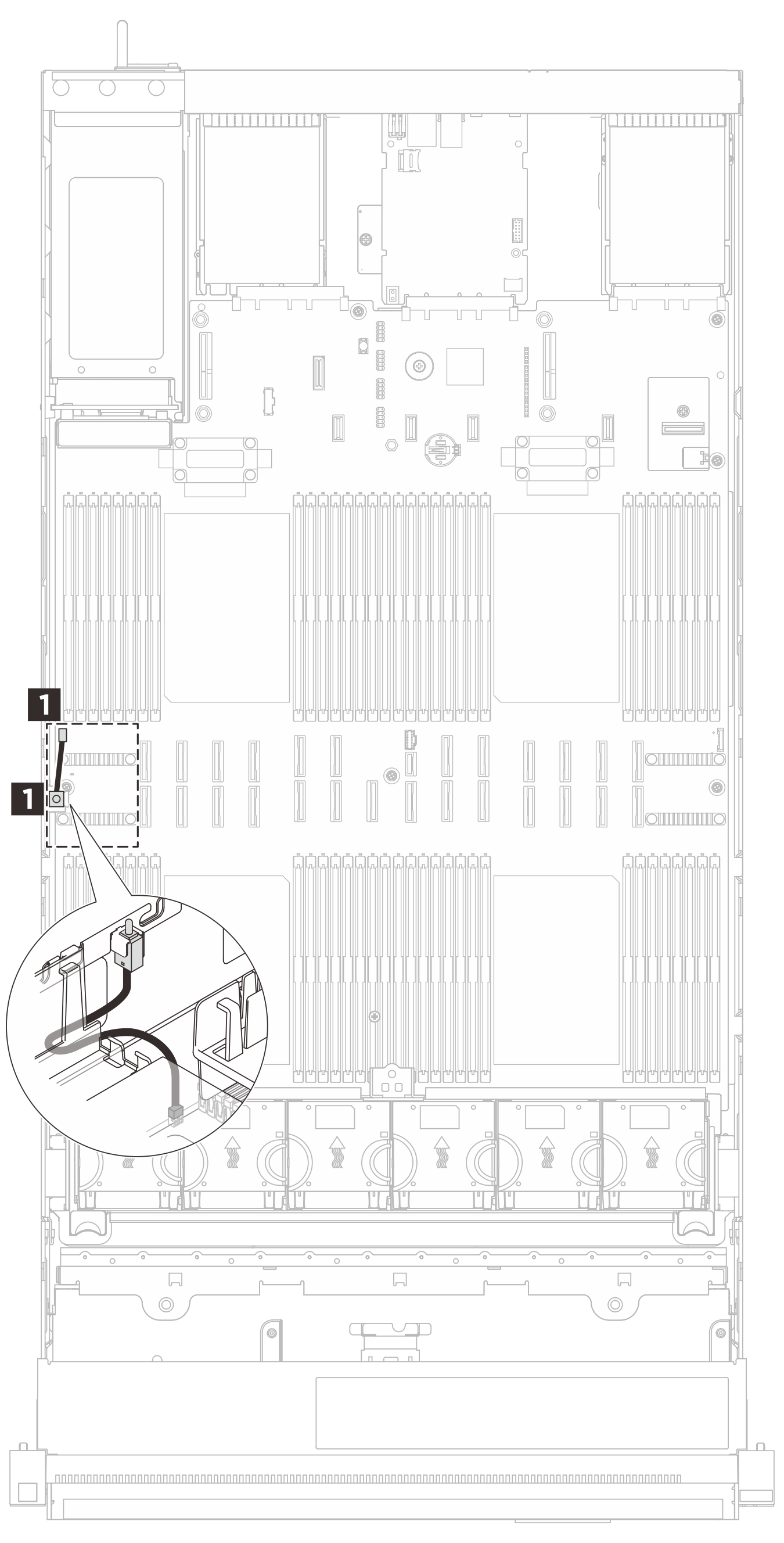

Figure 1. Cable routing for the intrusion switch
| Cable | From | To |
|---|---|---|
| 1x3p to Push switch (250 mm) | 1 Intrusion switch | 1 Intrusion switch connector |
