PCIe riser card connectors
See this section to locate the connectors on the PCIe riser card.
The server supports the following PCIe riser cards.
Two-slot PCIe Gen4 riser card

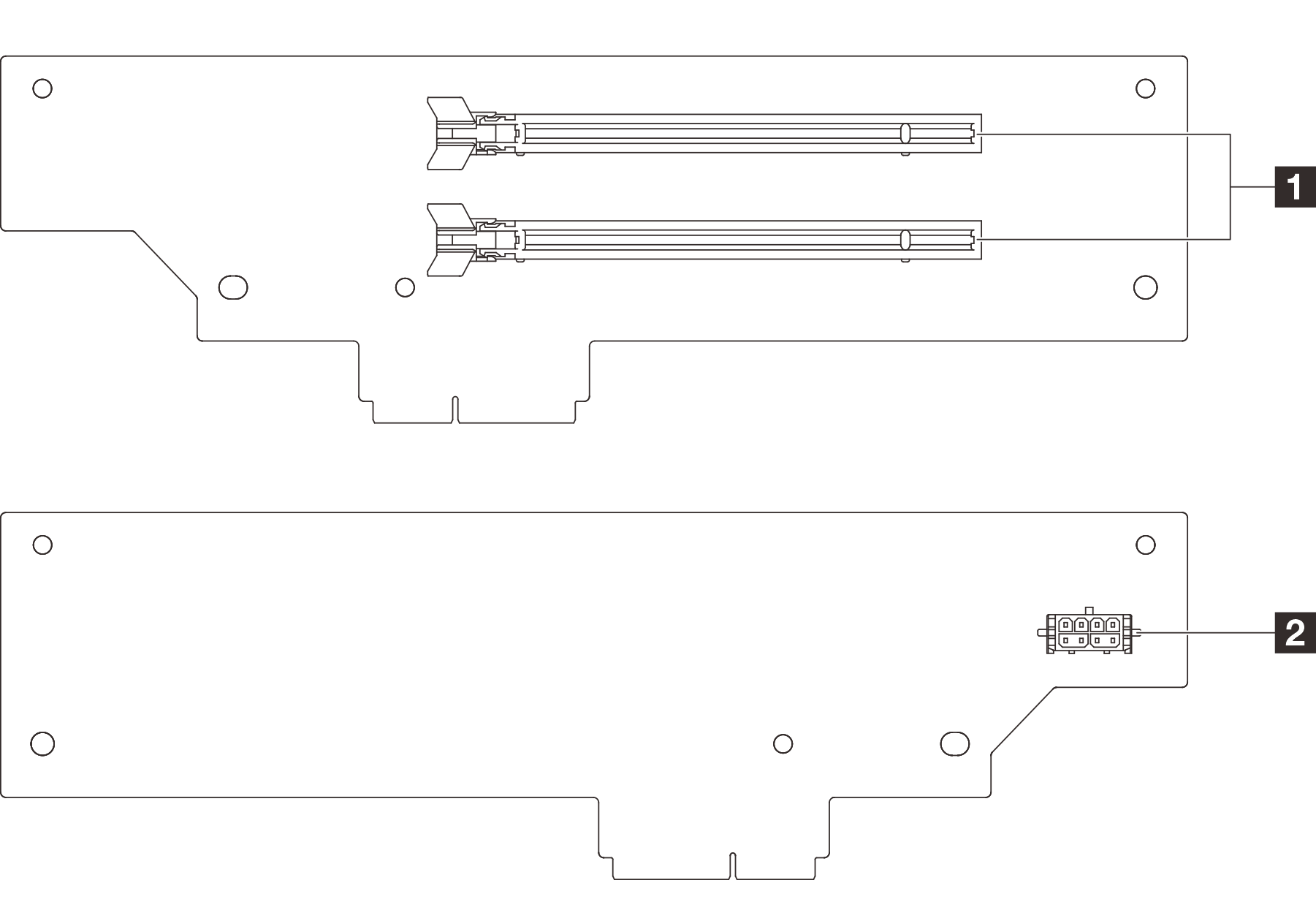

Figure 1. Two-slot PCIe Gen4 riser card connectors
| 1 PCIe slots (x2) | 2 Riser power connector |
Six-slot PCIe Gen5 riser card (HH)

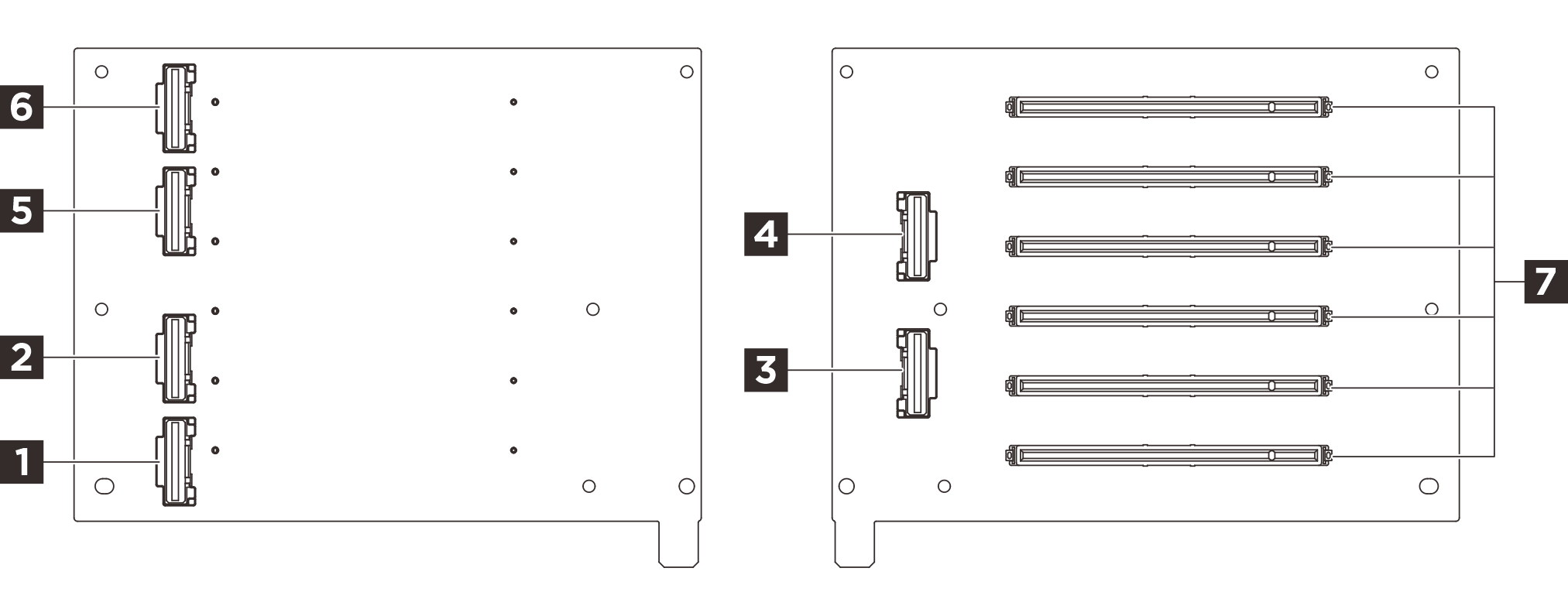

Figure 2. Six-slot PCIe Gen5 riser card (HH)
| 1 R1 connector | 2 R2 connector |
| 3 R3 connector | 4 R4 connector |
| 5 R5 connector | 6 R6 connector |
| 7 PCIe slots (x6) |
Six-slot PCIe Gen5 riser card (FH)

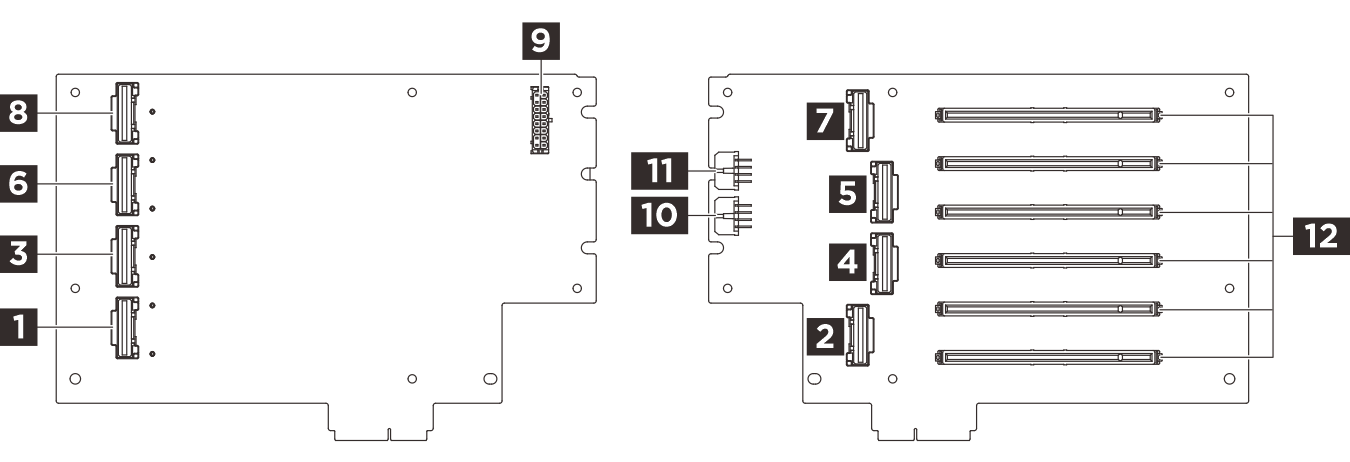

Figure 3. Six-slot PCIe Gen5 riser card (FH)
| 1 R1 connector | 2 R2 connector |
| 3 R3 connector | 4 R4 connector |
| 5 R5 connector | 6 R6 connector |
| 7 R7 connector | 8 R8 connector |
| 9 Riser power connector | 10 GPU power 2 connector |
| 11 GPU power 1 connector | 12 PCIe slots (x6) |
