System-board-assembly connectors for cable routing

The following illustrations show the internal connectors on the system board assembly that are used for internal cable routing.

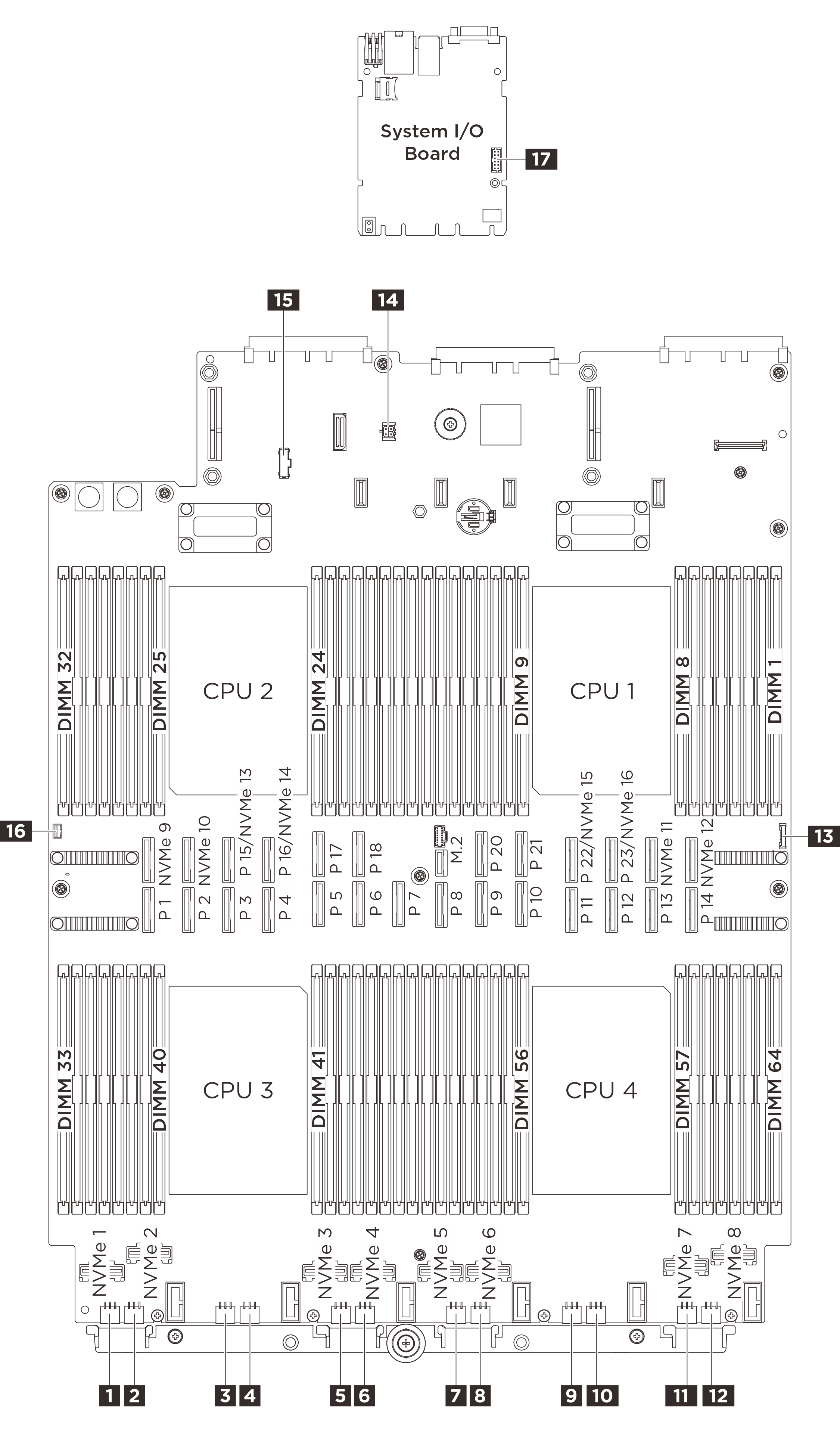

Figure 1. System-board-assembly connectors for cable routing

1 Backplane 1 power connector	2 Backplane 2 power connector
3 Backplane 3 power connector	4 Backplane 4 power connector
5 Backplane 5 power connector	6 Backplane 6 power connector
7 Backplane 7 power connector	8 Backplane 8 power connector
9 Backplane 9 power connector	10 Backplane 10 power connector
11 Backplane 11 power connector	12 Backplane 12 power connector
13 Front panel USB connector	14 Leakage sensor connector
15 PDB sideband connector	16 Intrusion switch connector
17 Serial port connector
