E3.S backplane 2

See this section to understand the cable routing of E3.S backplane 2.

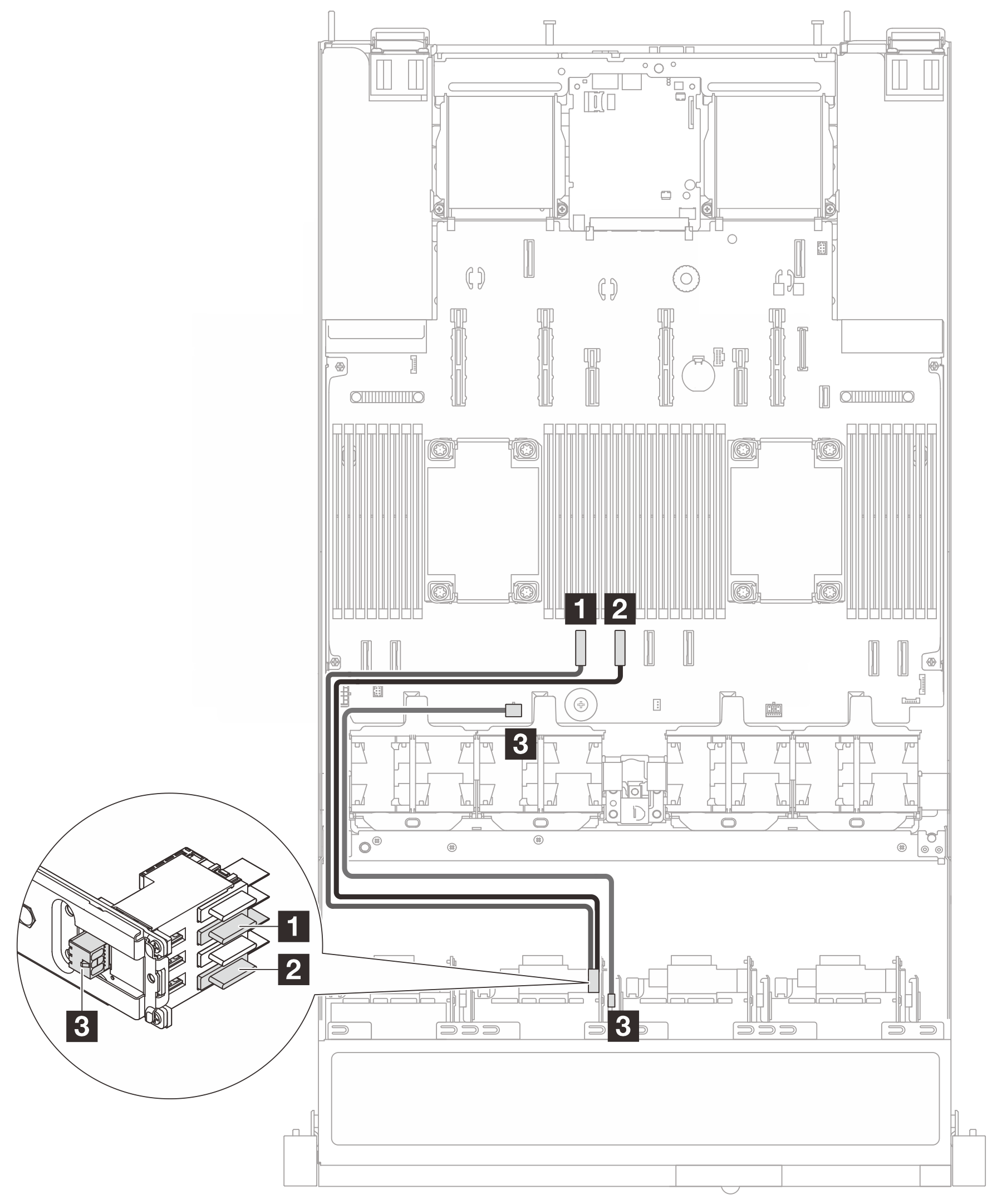

Figure 1. Cable routing for onboard configuration of E3.S backplane 2 (standard configuration)

FromToCable length
1

  • Bay 0, Bay 1 (4X1T backplane)

  • Bay 1 (2X2T backplane)

1 PCIe connector 6300 mm
2

  • Bay 2, Bay 3 (4X1T backplane)

  • Bay 3 (2X2T backplane)

2 PCIe connector 5300 mm
3 Power connector3 Power connector 2A520 mm

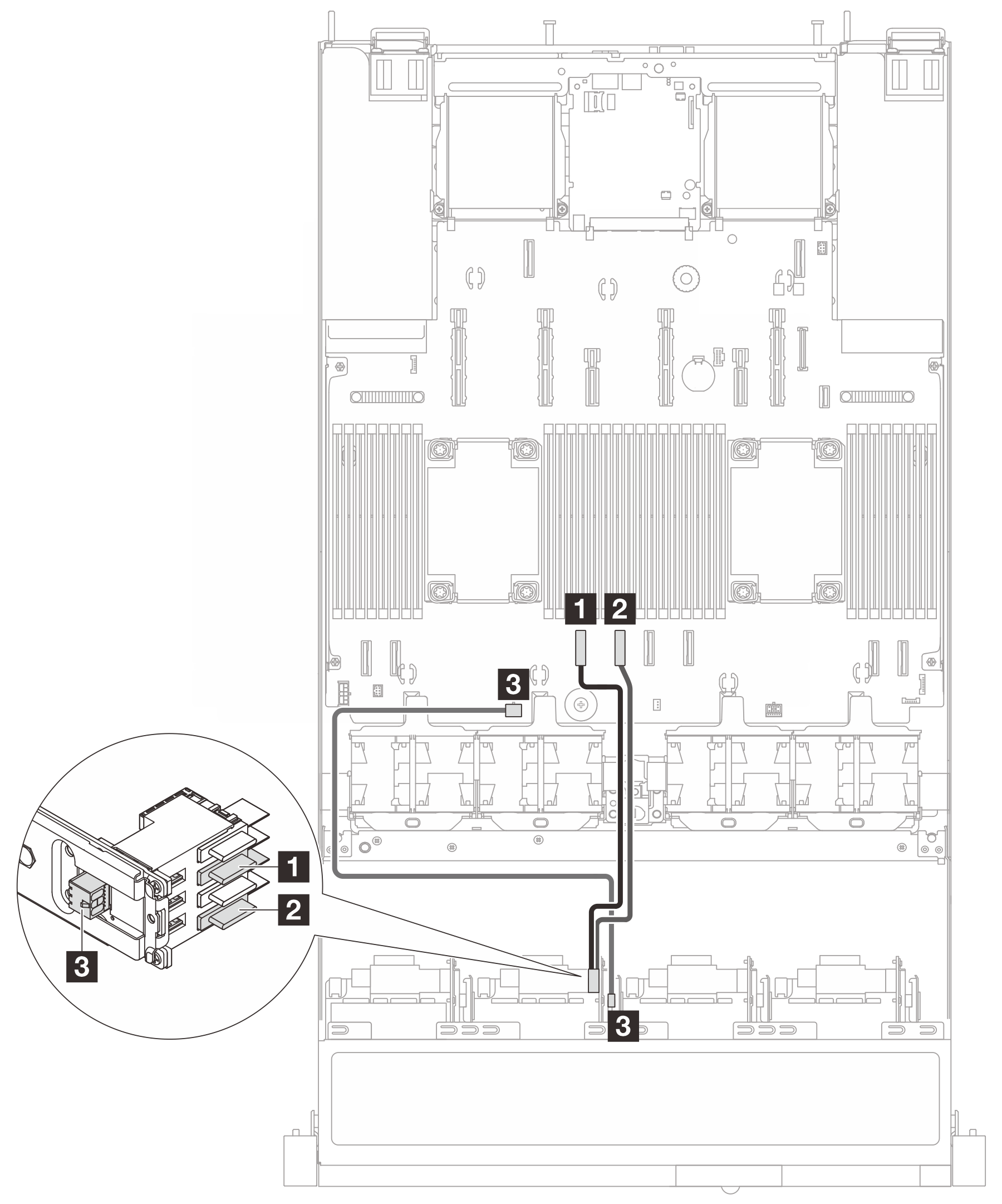

Figure 2. Cable routing for onboard configuration of E3.S backplane 2 (liquid cooling)

FromToCable length
1

  • Bay 0, Bay 1 (4X1T backplane)

  • Bay 1 (2X2T backplane)

1 PCIe connector 6630 mm
2

  • Bay 2, Bay 3 (4X1T backplane)

  • Bay 3 (2X2T backplane)

2 PCIe connector 5630 mm
3 Power connector3 Power connector 2A520 mm
