E3.S backplane 3
See this section to understand the cable routing of E3.S backplane 3.

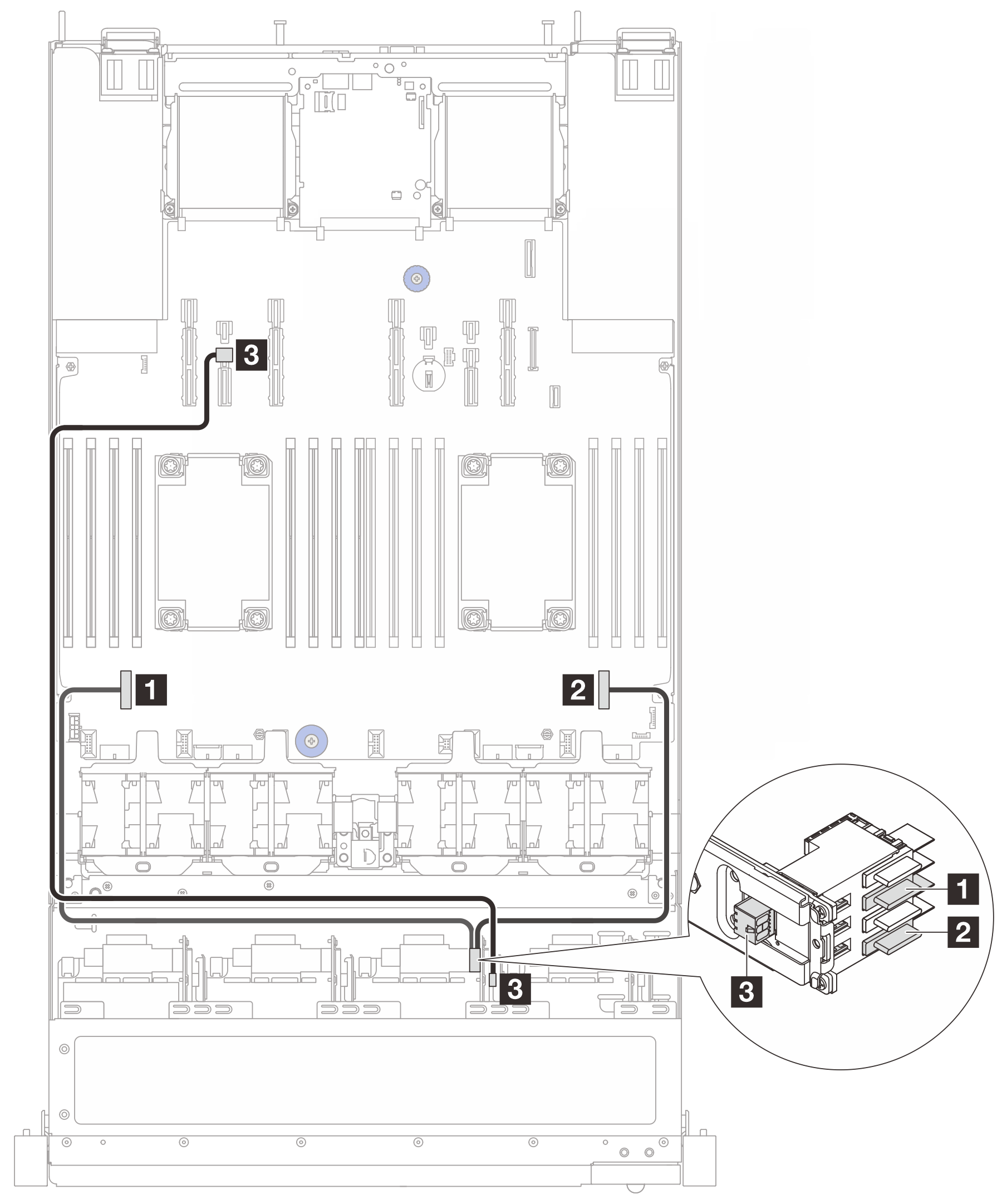

Figure 1. Cable routing for onboard configuration of E3.S backplane 3
| From | To | Cable length |
|---|---|---|
1
| 1 PCIe connector 4 | 300 mm |
2
| 2 PCIe connector 3 | 300 mm |
| 3 Power connector | 3 Power connector 3A | 520 mm |

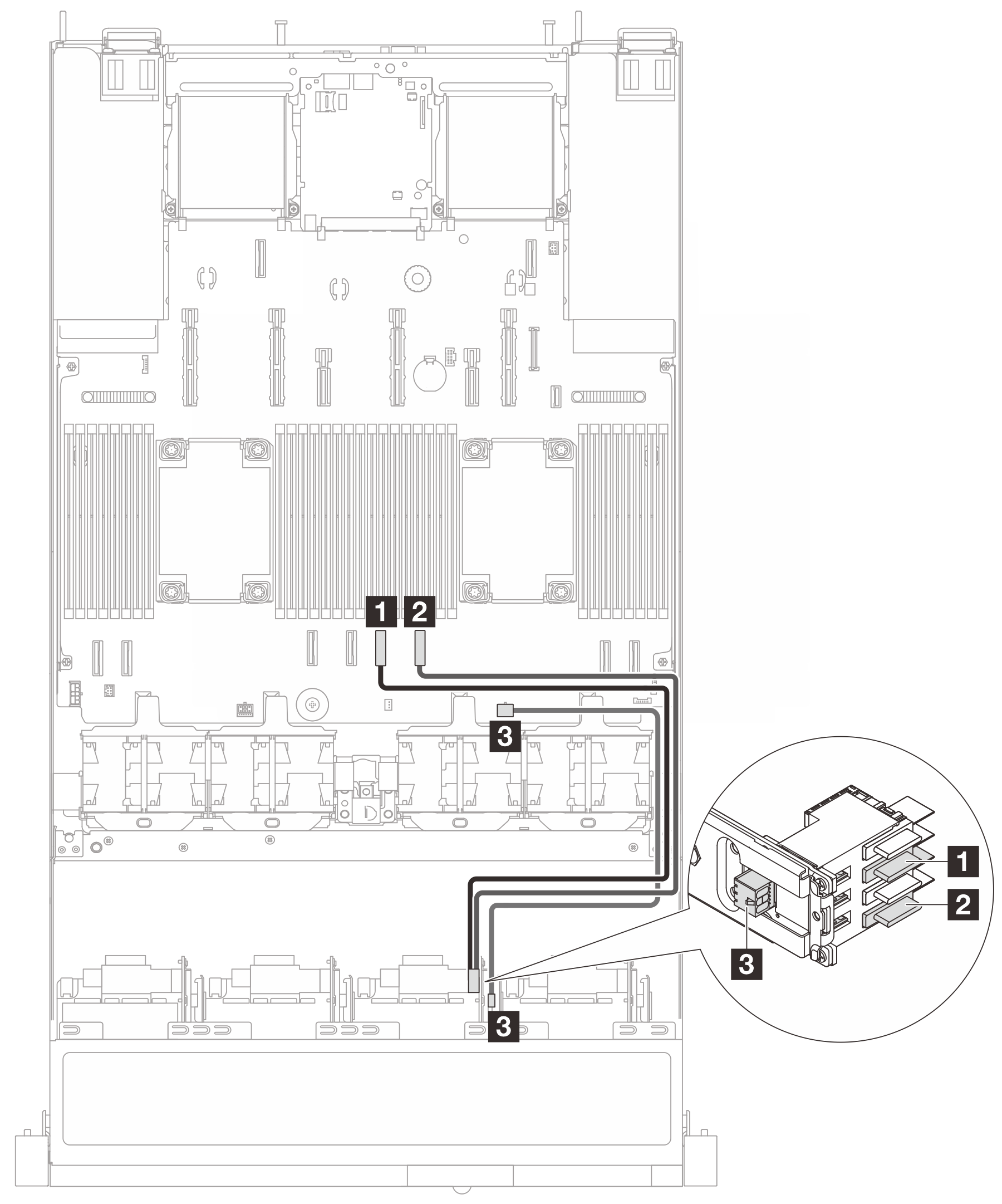

Figure 2. Cable routing for onboard configuration of E3.S backplane 3 (liquid cooling)
| From | To | Cable length |
|---|---|---|
1
| 1 PCIe connector 4 | 630 mm |
2
| 2 PCIe connector 3 | 630 mm |
| 3 Power connector | 3 Power connector 3A | 520mm |

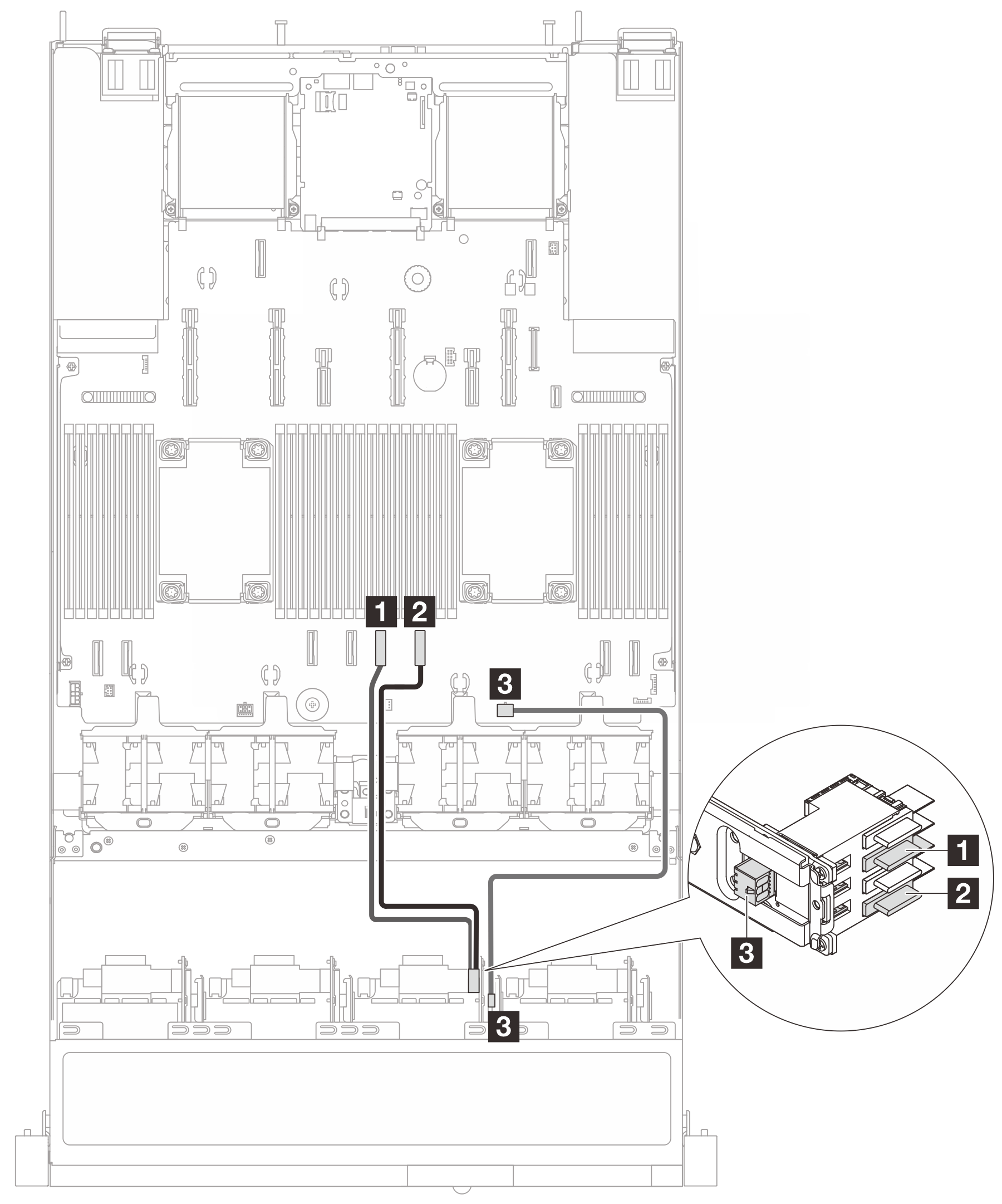

Figure 3. Cable routing for onboard configuration of E3.S backplane 3 (Compute Complex Neptune Core Module)
| From | To | Cable length |
|---|---|---|
| 1 Bay 0, Bay 1 (4X1T backplane) | 1 PCIe connector 7 | 550 mm |
| 2 Bay 2, Bay 3 (4X1T backplane) | 2 PCIe connector 2 | 550 mm |
| 3 Power connector | 3 Power connector 14 | 900 mm |
