Kabelführung für vordere M.2-Boot-Rückwandplatine und Controllerplatine

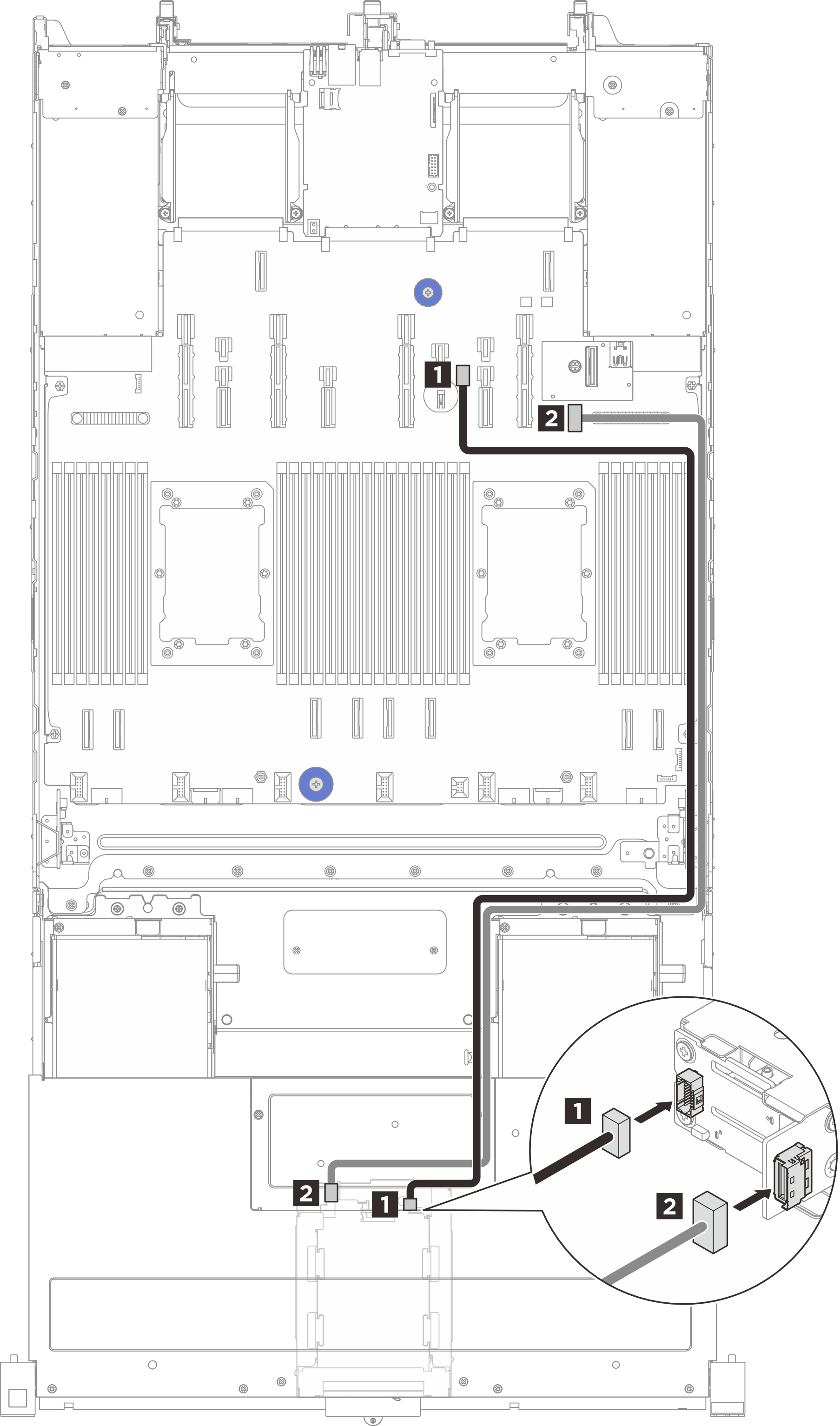

In diesem Abschnitt erfahren Sie, wie die Kabelführung für die vordere M.2-Boot-Rückwandplatine und die Controllerplatine funktioniert.



VonKabelwandZu (Prozessorplatine)Kabellänge
1 M.2-Boot-RückwandplatineKabelwand rechts1 M.2-Netzteilanschluss1.000 mm
2 M.2-ControllerplatineKabelwand rechts2 Signalanschluss für M.2-Rückwandplatine900 mm
