Install the PCS leakage tray

(Trained service technician only) Use this information to install the PCS leakage tray.

About this task

S002

CAUTION

The power-control button on the device and the power switch on the power supply do not turn off the electrical current supplied to the device. The device also might have more than one power cord. To remove all electrical current from the device, ensure that all power cords are disconnected from the power source.

Attention

• Read Installation Guidelines and Safety inspection checklist to ensure that you work safely.

Watch the procedure

• A video of this procedure is available at YouTube.

Procedure

1. Install the top PCS leakage tray.
   1. Align the top PCS leakage tray with the four guide holes on the top part of the front side of the mid-plate assembly.

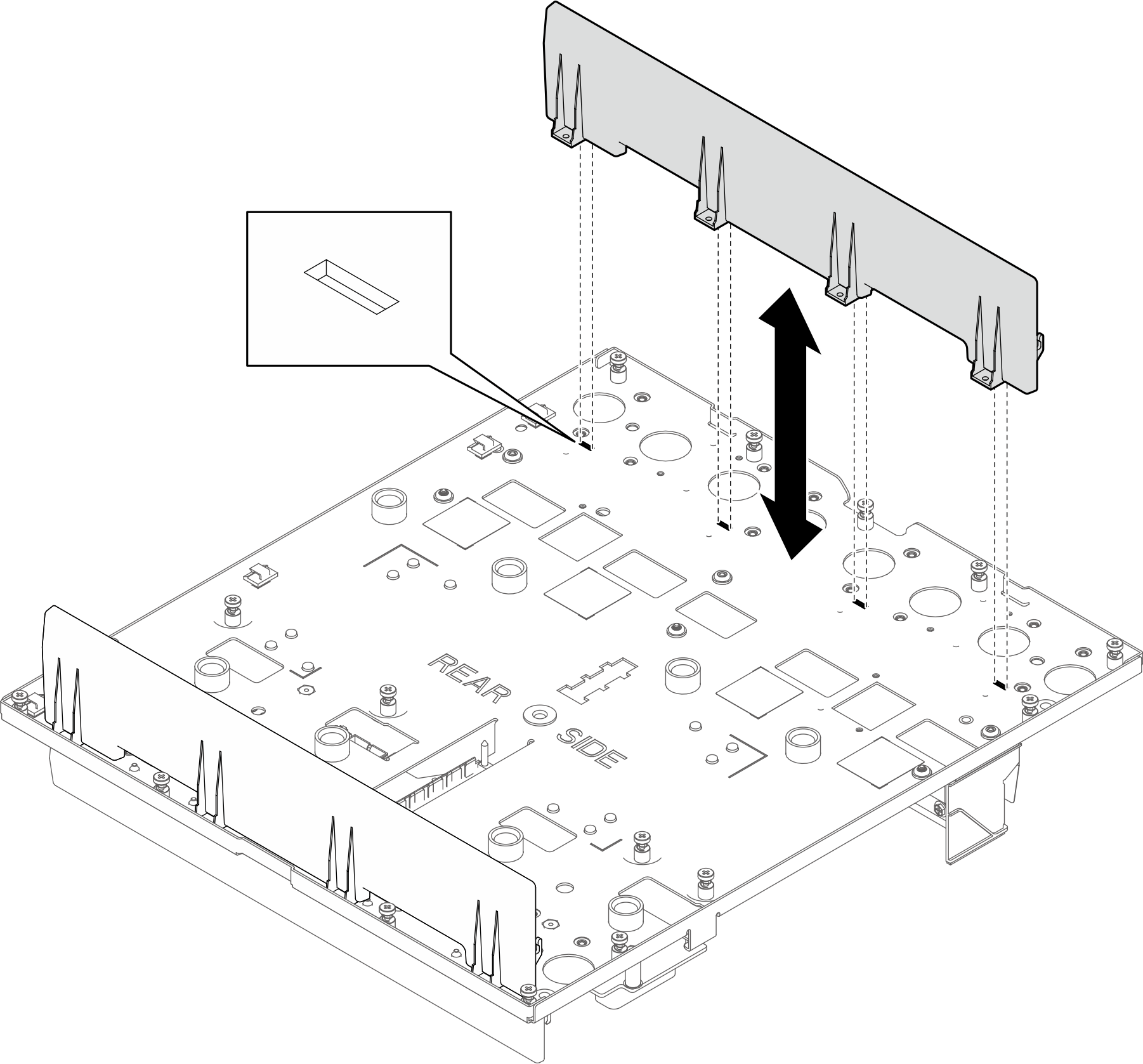

      Figure 1. Installing top PCS leakage tray


   2. Install four M3 T10 screws to secure the top PCS leakage tray to the mid-plate assembly.

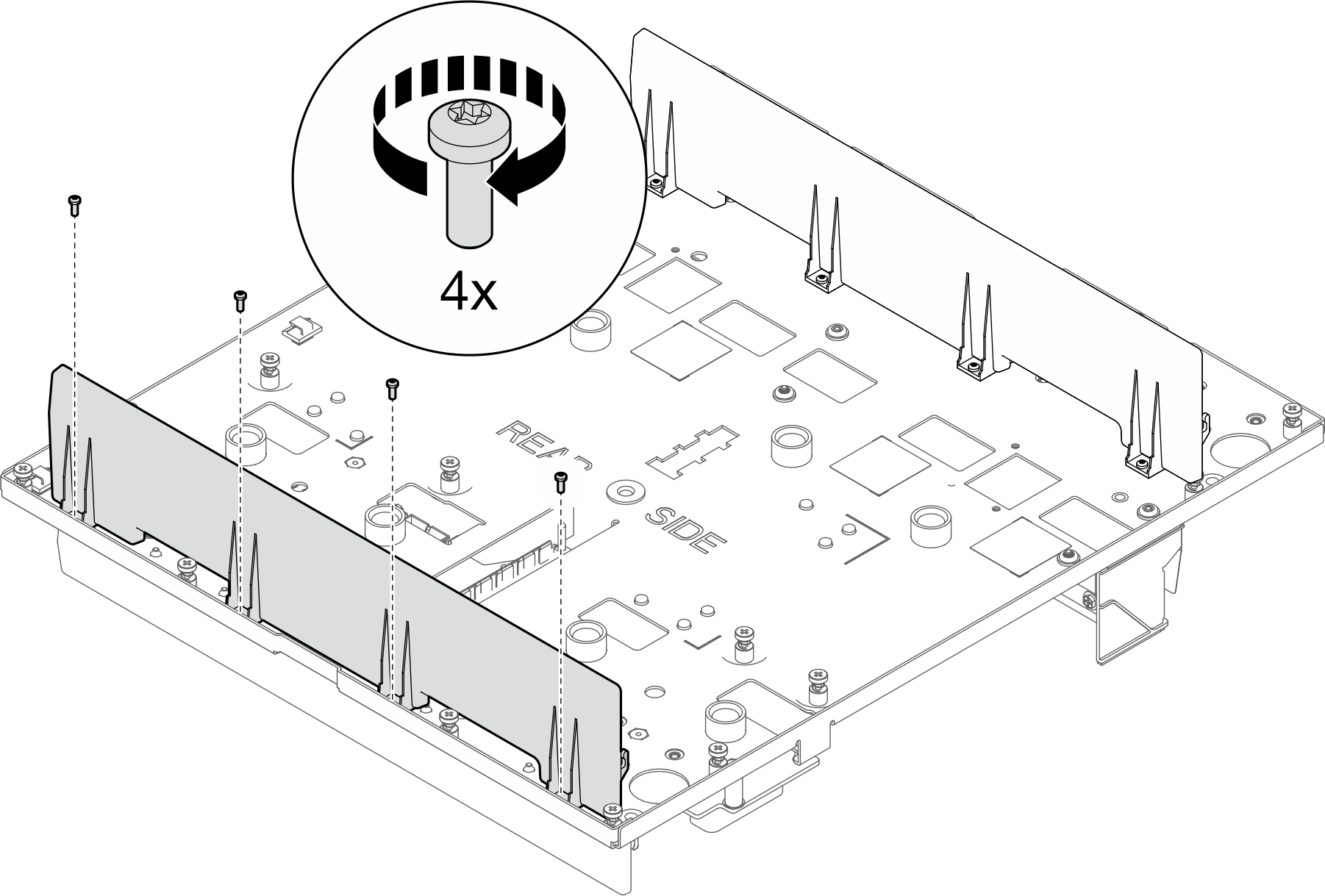

      Figure 2. Install screws to the top PCS leakage tray


2. Install the bottom PCS leakage tray.
   1. Align the bottom PCS leakage tray with the four guide holes on the bottom part of the front side of the mid-plate assembly.

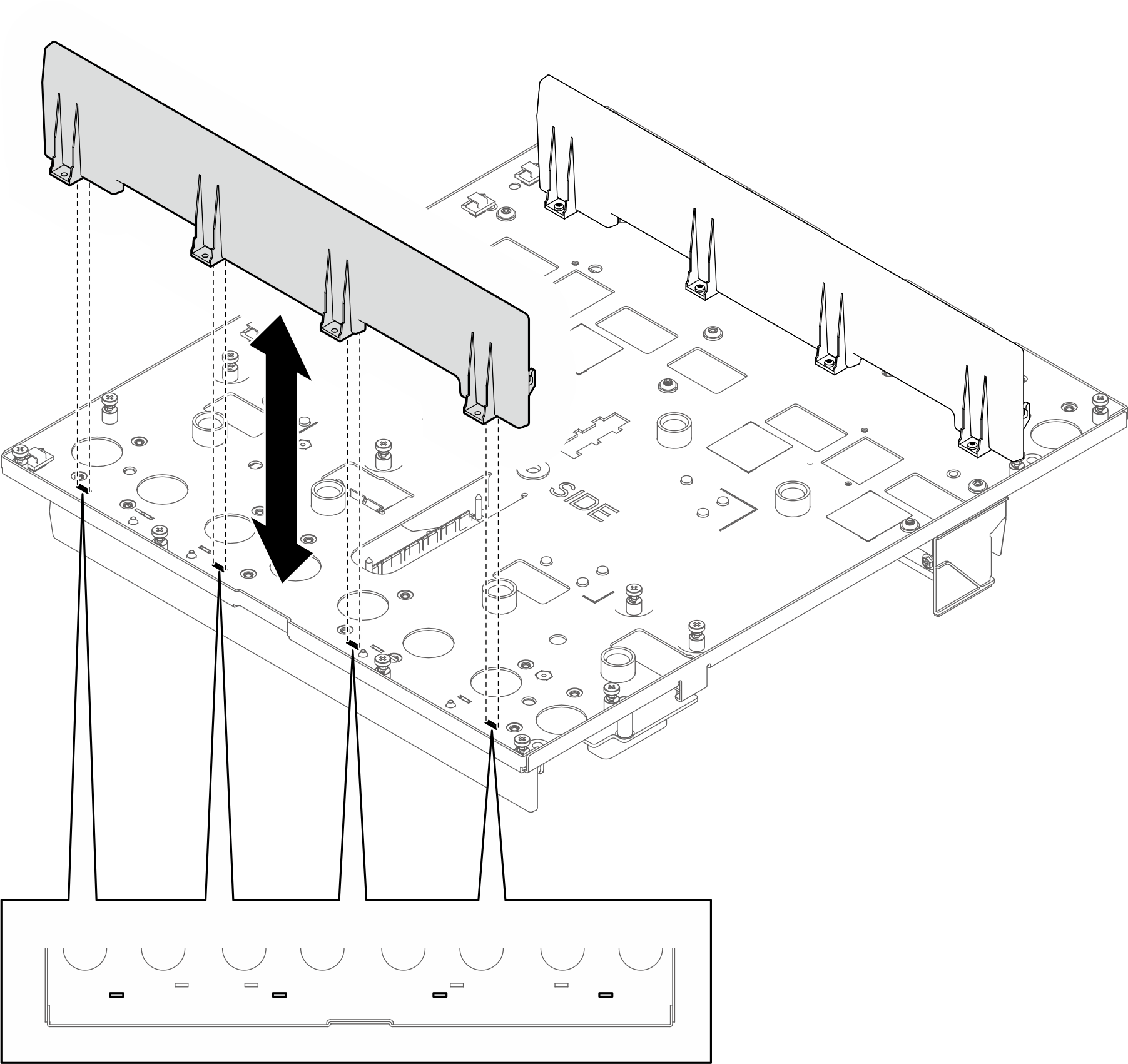

      Figure 3. Installing bottom PCS leakage tray


   2. Install four M3 T10 screws to secure the bottom PCS leakage tray to the mid-plate assembly.

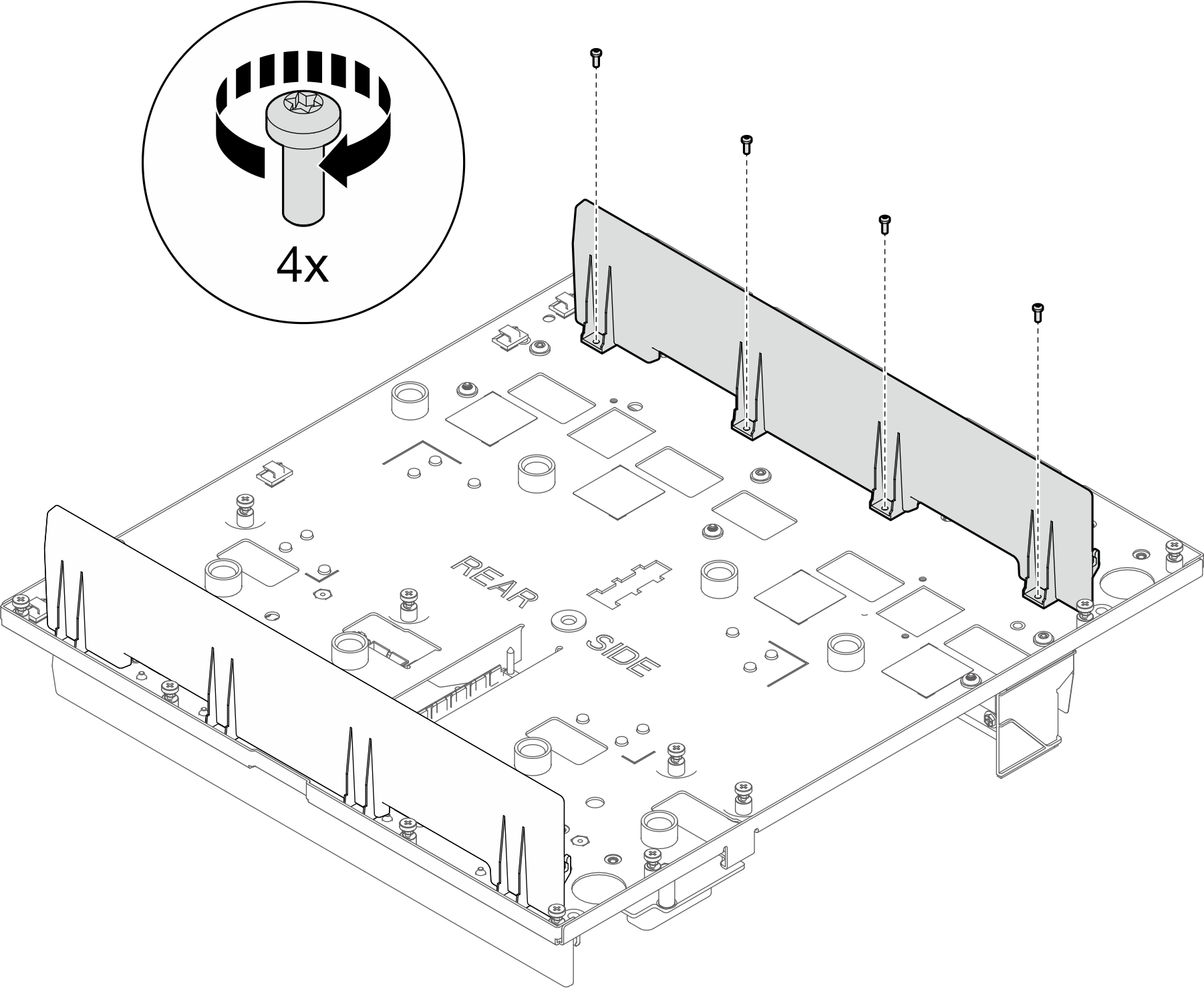

      Figure 4. Install screws to the bottom PCS leakage tray
