Install the PCIe adapter

Follow instructions in this section to install a PCIe adapter.

About this task

To avoid potential danger, read and follow the following safety statements.
  • S002
    disconnect all power
    CAUTION
    The power-control button on the device and the power switch on the power supply do not turn off the electrical current supplied to the device. The device also might have more than one power cord. To remove all electrical current from the device, ensure that all power cords are disconnected from the power source.
Attention

  • Read Installation Guidelines and Safety inspection checklist to ensure that you work safely.

  • Use any documentation that comes with the PCIe adapter and follow those instructions in addition to the instructions in this section.

  • Touch the static-protective package that contains the component to any unpainted metal surface on the server; then, remove it from the package and place it on a static-protective surface.

Note

Depending on the specific type, your PCIe adapter and expansion kit components might look different from the illustration in this section.

Procedure

  1. Make preparation for this task.
    1. (Optional) If the PCIe adapter to be installed is with different type, make sure the support baffle is removed from the PCIe adapter. See Remove the support baffle.
  2. The system only supports low-profile bracket. Install the low-profile bracket to the PCIe adapter.
  3. Install a PCIe adapter.
    1. Insert the PCIe adapter into the PCIe riser card.
    2. Tighten the screw to secure the PCIe adapter to the PCIe riser card.

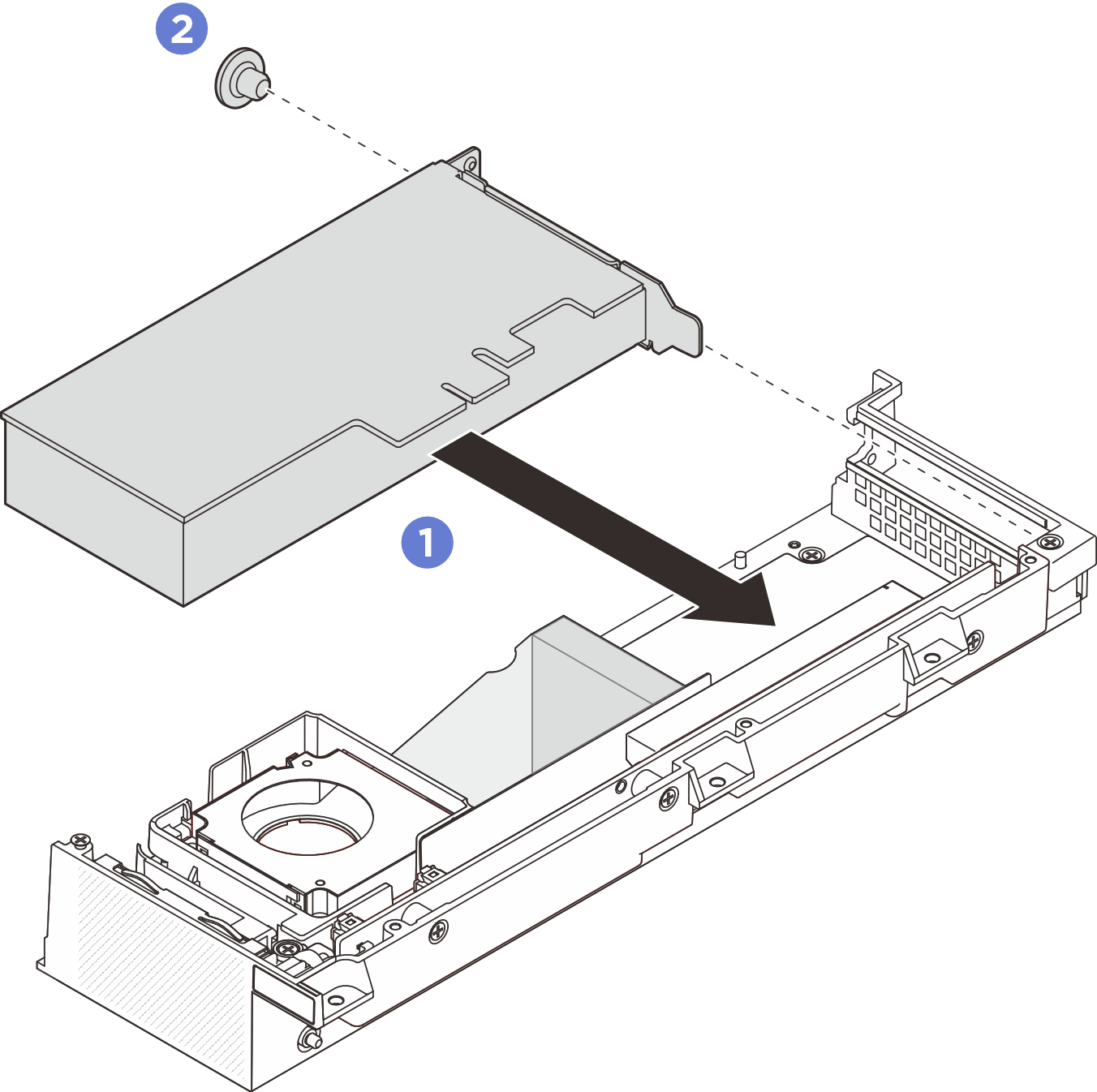

      Figure 1. Installing a PCIe adapter

After you finish

  1. (Optional) Install the support baffle. See Install the support baffle.
  2. Install the expansion top cover. See Install the expansion top cover.
  3. Install the expansion kit to the node. See Install the expansion kit.
  4. Complete the parts replacement. See Complete the parts replacement.
