Install the compute tray

Follow instructions in this section to install the compute tray. The procedure must be executed by a trained technician.

About this task

Attention
  • Read Installation Guidelines and Safety inspection checklist to ensure that you work safely.
  • Two people and one lifting device on site that can support up to 400 lb (181 kg) are required to perform this procedure. If you do not already have a lifting device available, Lenovo offers the Genie Lift GL-8 material lift that can be purchased at Data Center Solution Configurator. Make sure to include the Foot-release brake and the Load Platform when ordering the Genie Lift GL-8 material lift.

Procedure

  1. Place the compute tray into the system shuttle until it is securely engaged.
  2. Locate the six screw holes marked with D on both sides of the system shuttle; then, fasten the six screws to secure the compute tray.

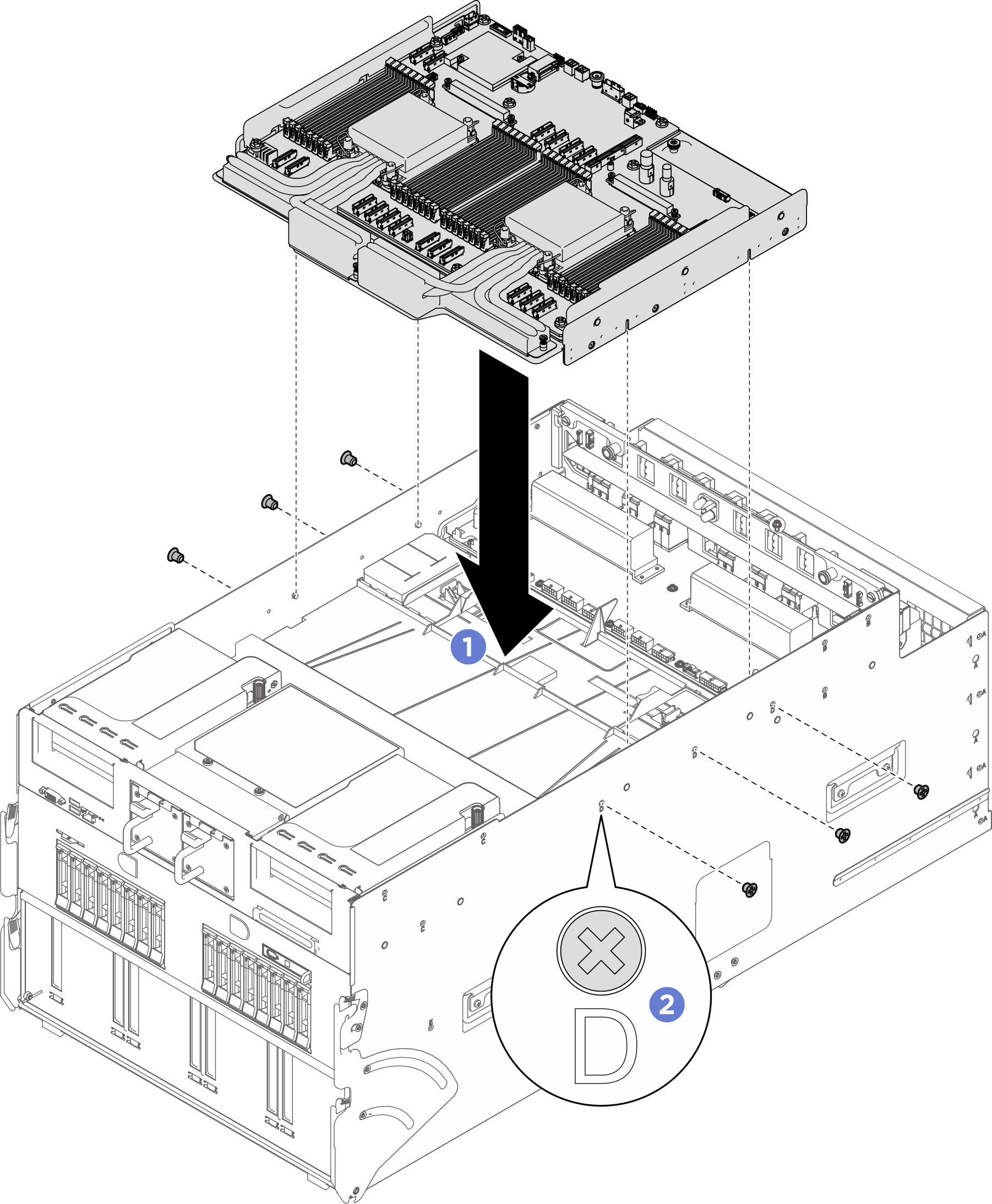

    Figure 1. Compute tray installation
    Compute tray installation
  3. Reconnect all the required cables to the same connectors on the system board. See below for more information.

After you finish

  1. Ensure that all components have been reassembled correctly and that no tools or loose screws are left inside the server.
  2. Reinstall the system shuttle. See Install the system shuttle.
  3. Complete the parts replacement. See Complete the parts replacement.
