PSU interposer cable routing

Use the section to understand the cable routing for the PSU interposer.

Based on the location, select the corresponding routing plan:
Note
  • Connections between connectors; 1↔1, 2↔2, 3↔3, ... n↔n
  • When routing the cables, ensure that all cables are routed appropriately through the cable guides.
Attention
Strictly observe the following instructions to avoid damaging cable sockets on the system board. Any damage to the cable sockets might require replacing the system board.

  • Connect cable connectors vertically or horizontally in alignment with the orientations of the corresponding cable sockets, avoiding any tilt.

  • To disconnect cables from the system board, do as follows:

    1. Press and hold all latches, release tabs, or locks on cable connectors to release the cable connectors.

    2. Remove the cable connectors vertically or horizontally in alignment with the orientations of the corresponding cable sockets, avoiding any tilt.
      Note
      The cable connectors might look different from those in the illustration, but the removal procedure is the same.






PSU interposer to power distribution board cable routing​

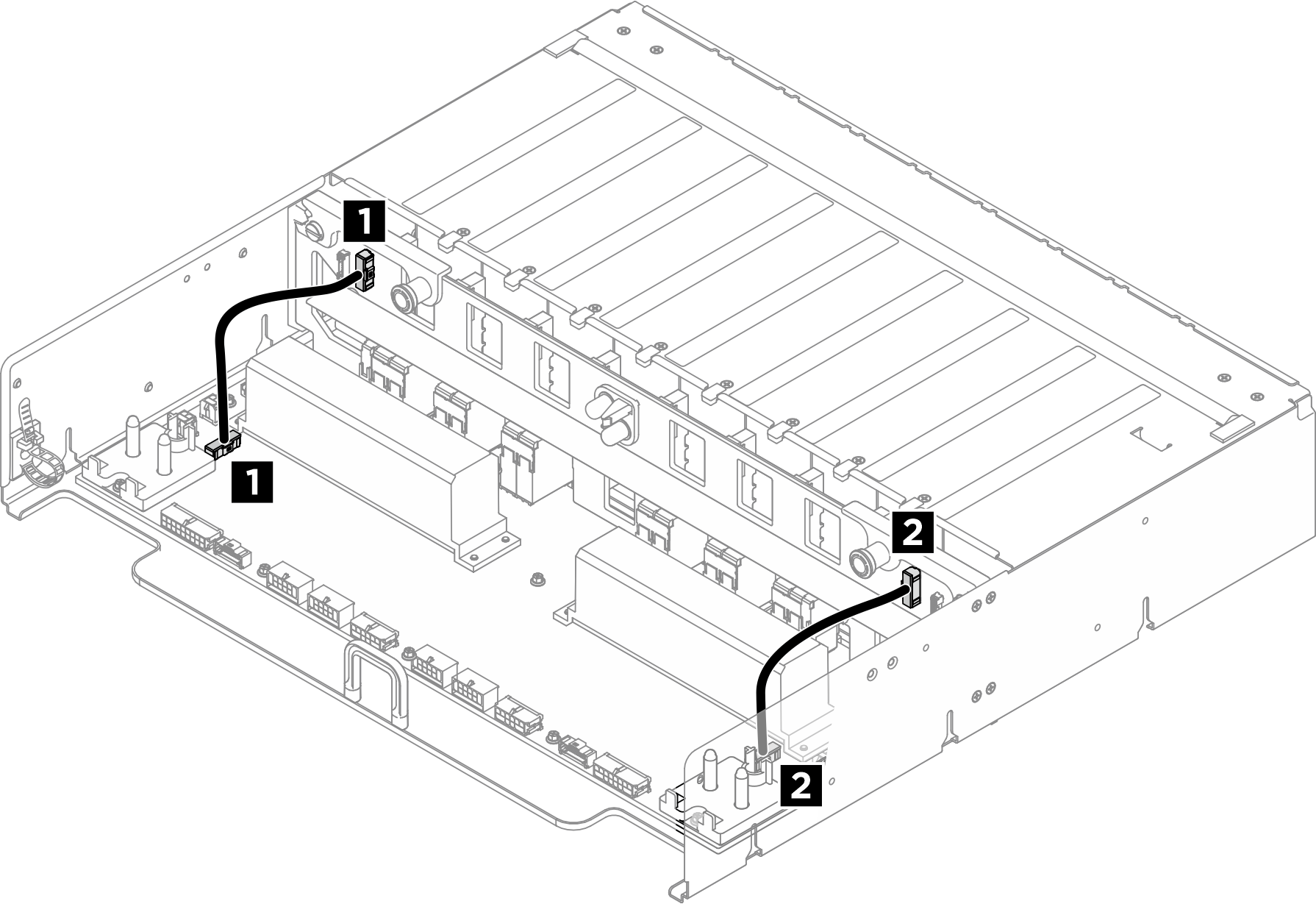

Figure 1. PSU interposer to power distribution board cable routing
PSU interposer to power distribution board cable routing
CableFromTo
1PSU interposer: Power distribution board sideband connector 1 (PDB SB1)Power distribution board: PSU interposer sideband connector 1 (PIB SB1)
2PSU interposer: Power distribution board sideband connector 2 (PDB SB2)Power distribution board: PSU interposer sideband connector 2 (PIB SB2)

PSU interposer to system board cable routing​

Figure 2. PSU interposer to system board cable routing
PSU interposer to system board cable routing
CableFromTo
1PSU interposer: System board power connector (MB PWR)1 System board: PDB_0V connector (PSU_GND) (black cable)
22 System board: PDB_P12V connector (PSU_P12V) (red cable)
aView from PDB and GPU complex
bView from CPU complex
Note
  • When routing through the cable guides on the CPU complex chassis, keep the integrated diagnostics panel cable and the GPU management cable on top of the power cables, and keep them parallel to each other. As illustrated in b.
  • Ensure not to place the power cables on the right and left ends of the manifold. As illustrated in a.
