Power distribution board cable routing

Follow the instructions in this section to learn how to do cable routing for the power distribution board.

Note

  • Connections between connectors; 1↔1, 2↔2, 3↔3, ... n↔n

  • The Cable PN or FRU PN can be found on the label attached to the cable.

  • When routing the cables, make sure that all cables are routed appropriately through the corresponding cable guides and cable clips.

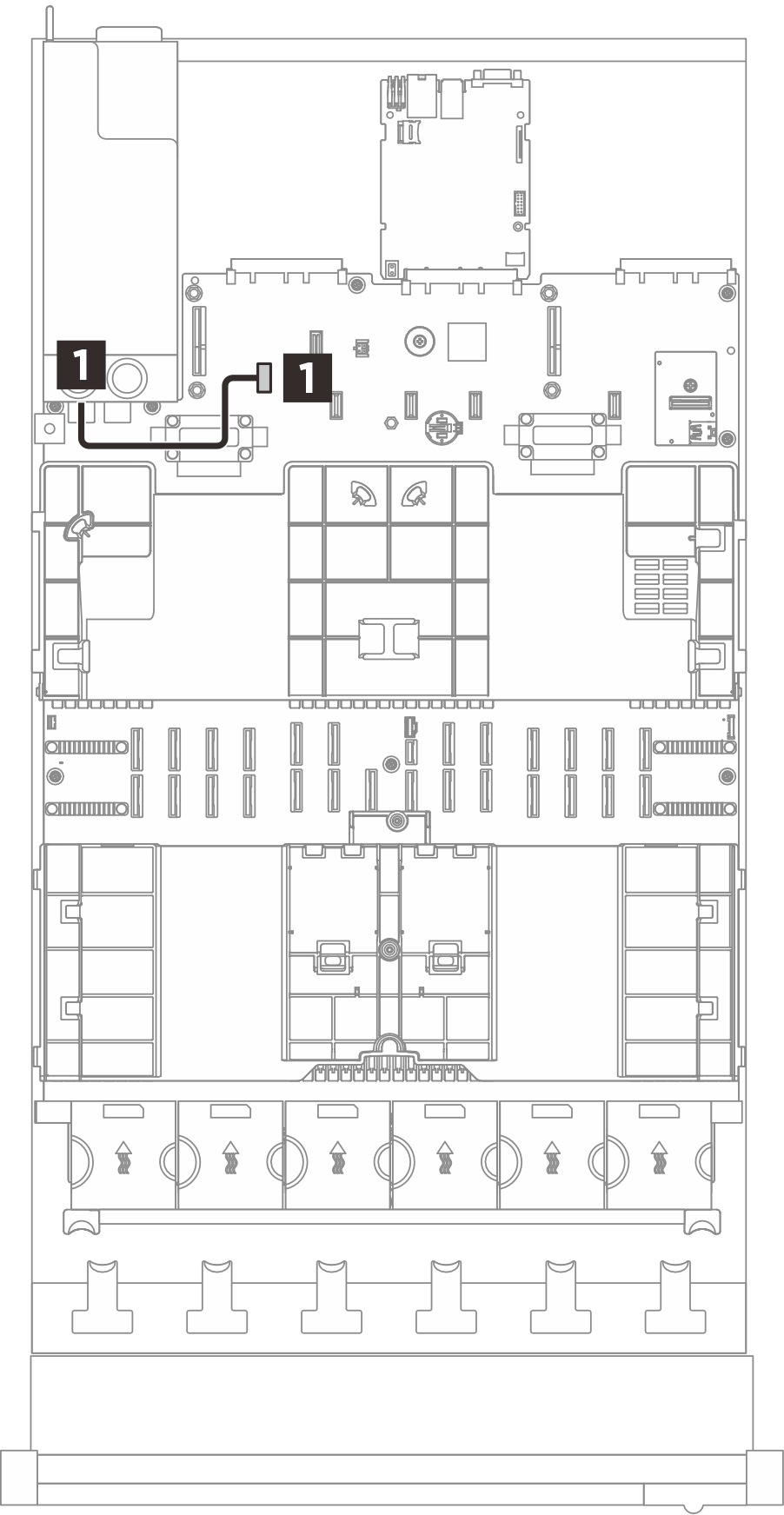

Figure 1. Cable routing for the power distribution board
Cable routing for the power distribution board
FromTo (System board assembly)Cable

1 PDB sideband

1 Sideband power

2x15p to 2x15p (210 mm)
