Internal M.2 boot adapter cable routing
Follow the instructions in this section to learn how to do cable routing for the internal M.2 boot adapter.
Note
Connections between connectors; 1↔1, 2↔2, 3↔3, ... n↔n
The Cable PN or FRU PN can be found on the label attached to the cable.
When routing the cables, make sure that all cables are routed appropriately through the corresponding cable guides and cable clips.

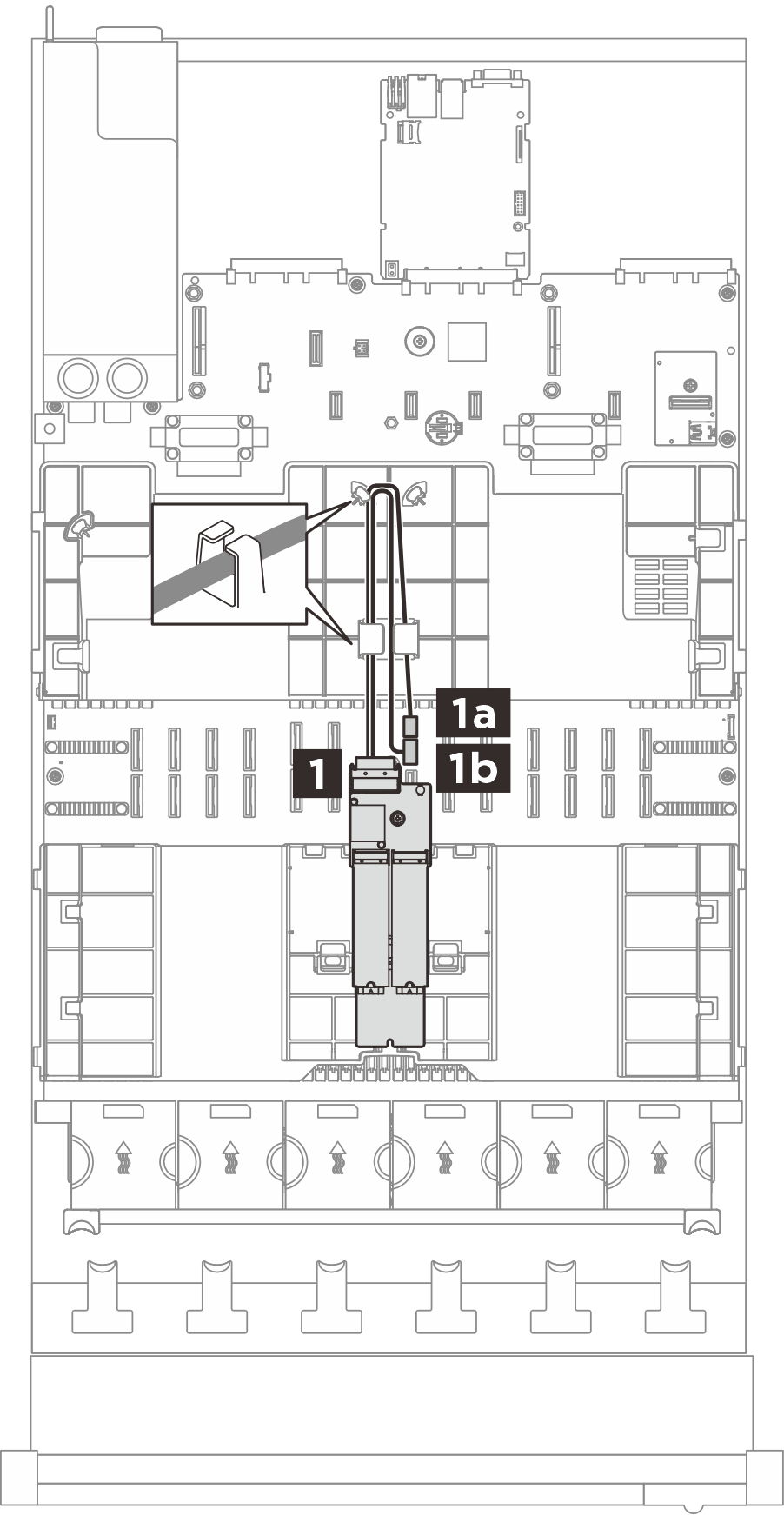

Figure 1. Cable routing for internal M.2 boot adapter
| From (M.2 boot adapter) | To (System board assembly) | Cable |
|---|---|---|
1 M.2 power and signal | 1a M.2 power | MCIO x4+2x10p to ULP 82p (300/300 mm) |
1b M.2 signal |
