E3.S backplane cable routing
Use the section to understand the cable routing for the E3.S backplane.
Connections between connectors; 1↔1, 2↔2, 3↔3, ... n↔n
The Cable PN or FRU PN can be found on the label attached to the cable.
When routing the cables, make sure that all cables are routed appropriately through the corresponding cable guides and cable clips.

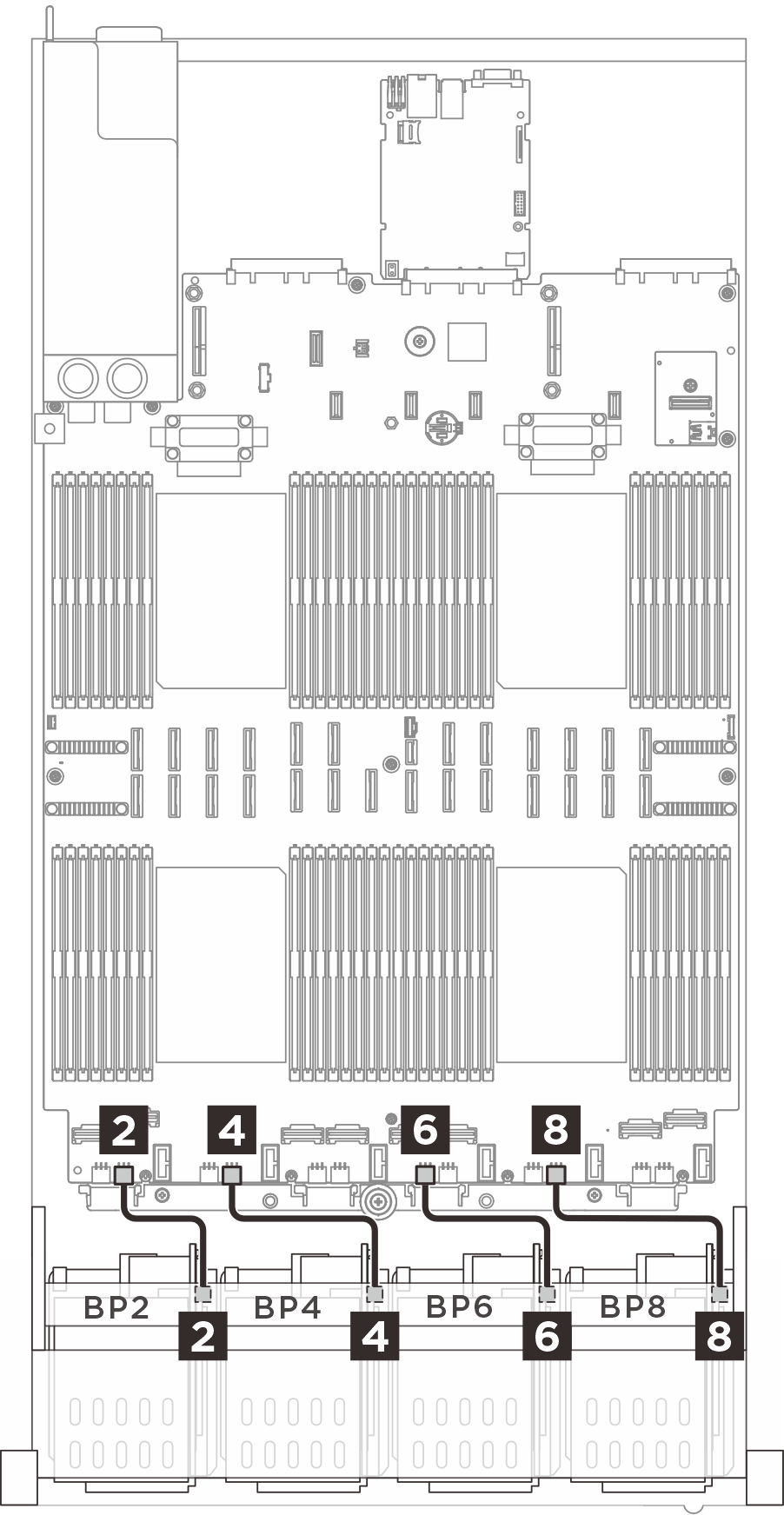

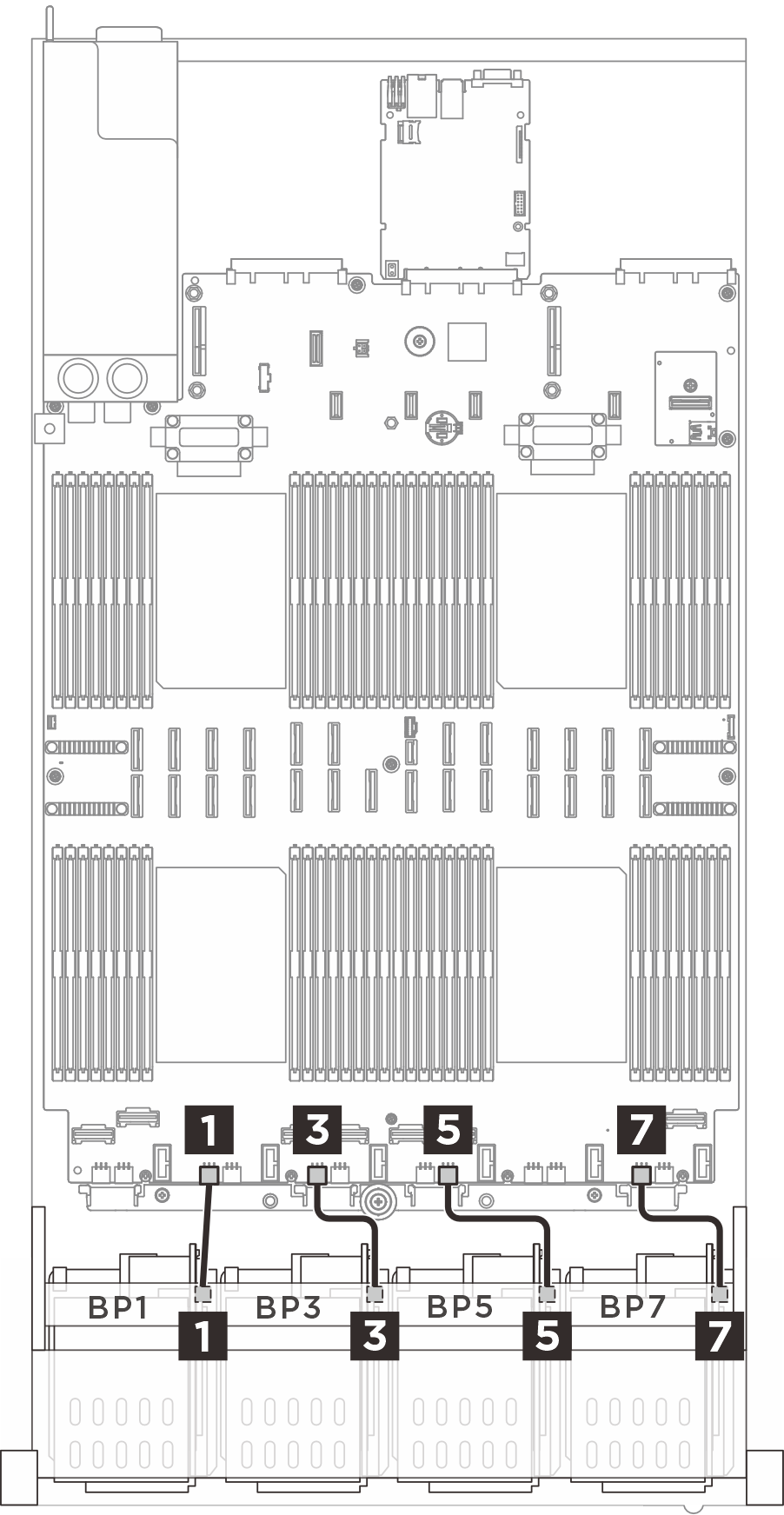

Power cable routing
 |  |
| From (Backplane) | To (System board assembly) | Cable |
|---|---|---|
1 BP1: PWR | 1 BP3 PWR | 6P+6S to 6P+6S (150 mm) |
2 BP2: PWR | 2 BP2 PWR | 6P+6S to 6P+6S (150 mm) |
3 BP3: PWR | 3 BP5 PWR | 6P+6S to 6P+6S (150 mm) |
4 BP4: PWR | 4 BP4 PWR | 6P+6S to 6P+6S (150 mm) |
5 BP5: PWR | 5 BP8 PWR | 6P+6S to 6P+6S (150 mm) |
6 BP6: PWR | 6 BP7 PWR | 6P+6S to 6P+6S (150 mm) |
7 BP7: PWR | 7 BP11 PWR | 6P+6S to 6P+6S (150 mm) |
8 BP8: PWR | 8 BP10 PWR | 6P+6S to 6P+6S (150 mm) |

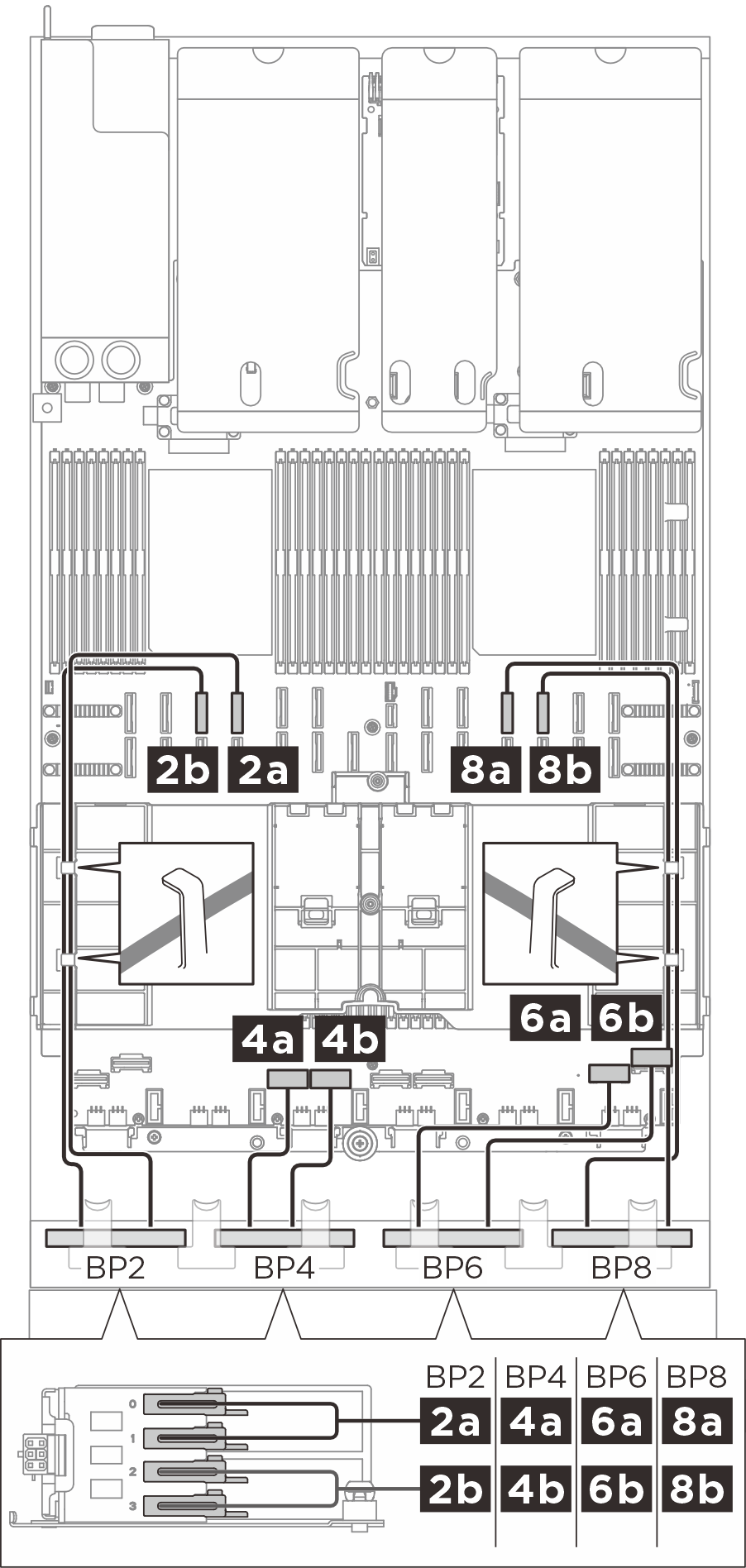

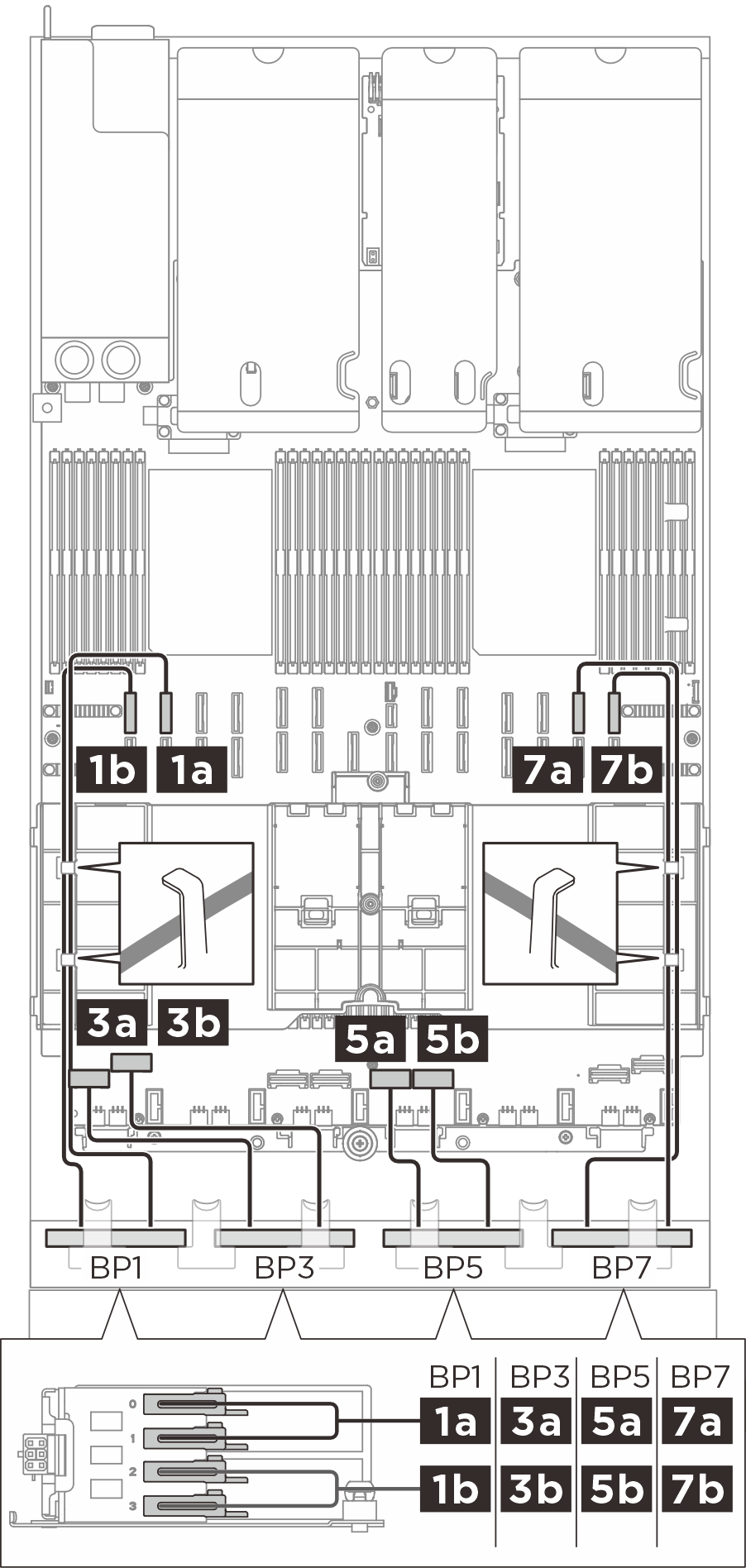

E3.S 1T signal cable routing
 |  |
| From (Backplane) | To (System board assembly) | Cable |
|---|---|---|
1a BP1: Bay 0, Bay 1 | 1a NVMe 10 | MCIO x8 to Z-link 1C*2 (500 mm) |
1b BP1: Bay 2, Bay 3 | 1b NVMe 9 | MCIO x8 to Z-link 1C*2 (500 mm) |
2a BP2: Bay 0, Bay 1 | 2a NVMe 14 | MCIO x8 to Z-link 1C*2 (500 mm) |
2b BP2: Bay 2, Bay 3 | 2b NVMe 13 | MCIO x8 to Z-link 1C*2 (500 mm) |
3a BP3: Bay 0, Bay 1 | 3a NVMe 1 | Swift x8 to Z-link 1C*2 (240 mm) |
3b BP3: Bay 2, Bay 3 | 3b NVMe 2 | Swift x8 to Z-link 1C*2 (240 mm) |
4a BP4: Bay 0, Bay 1 | 4a NVMe 3 | Swift x8 to Z-link 1C*2 (240 mm) |
4b BP4: Bay 2, Bay 3 | 4b NVMe 4 | Swift x8 to Z-link 1C*2 (240 mm) |
5a BP5: Bay 0, Bay 1 | 5a NVMe 5 | Swift x8 to Z-link 1C*2 (240 mm) |
5b BP5: Bay 2, Bay 3 | 5b NVMe 6 | Swift x8 to Z-link 1C*2 (240 mm) |
6a BP6: Bay 0, Bay 1 | 6a NVMe 7 | Swift x8 to Z-link 1C*2 (240 mm) |
6b BP6: Bay 2, Bay 3 | 6b NVMe 8 | Swift x8 to Z-link 1C*2 (240 mm) |
7a BP7: Bay 0, Bay 1 | 7a NVMe 11 | MCIO x8 to Z-link 1C*2 (500 mm) |
7b BP7: Bay 2, Bay 3 | 7b NVMe 12 | MCIO x8 to Z-link 1C*2 (500 mm) |
8a BP8: Bay 0, Bay 1 | 8a NVMe 15 | MCIO x8 to Z-link 1C*2 (500 mm) |
8b BP8: Bay 2, Bay 3 | 8b NVMe 16 | MCIO x8 to Z-link 1C*2 (500 mm) |

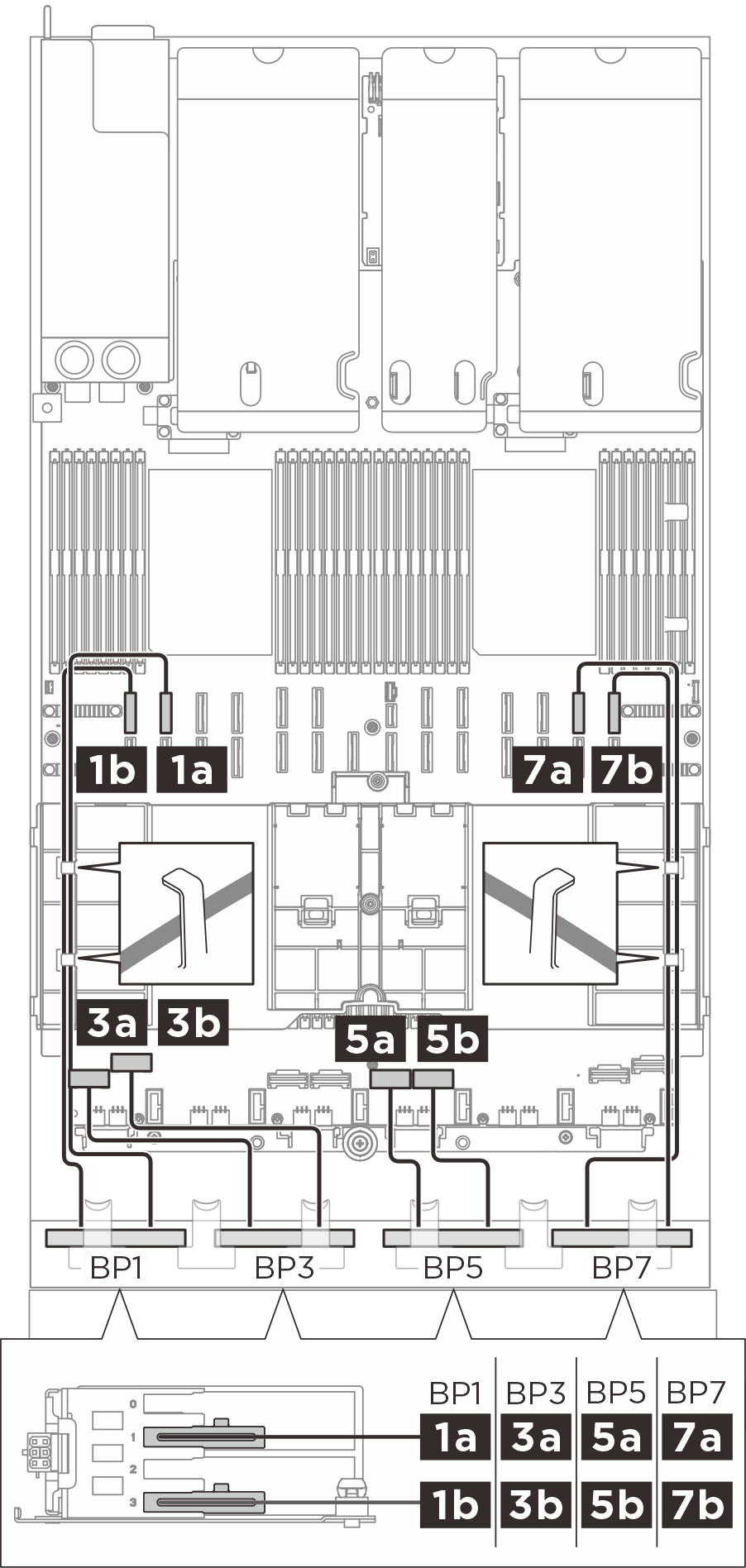

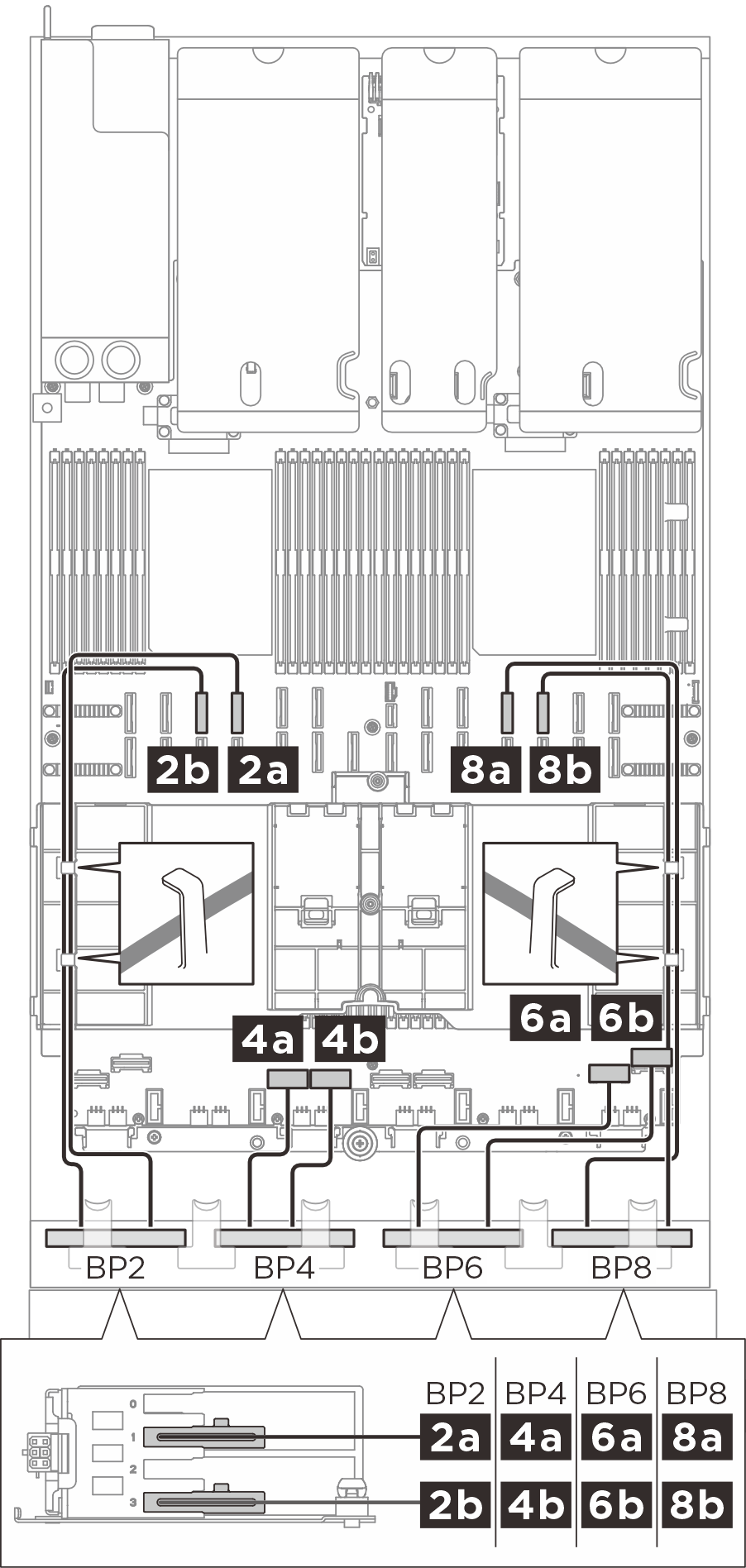

E3.S 2T signal cable routing
 |  |
| From (Backplane) | To (System board assembly) | Cable |
|---|---|---|
1a BP1: Bay 1 | 1a NVMe 10 | MCIO x8 to Z-link 2C (500 mm) |
1b BP1: Bay 3 | 1b NVMe 9 | MCIO x8 to Z-link 2C (500 mm) |
2a BP2: Bay 1 | 2a NVMe 14 | MCIO x8 to Z-link 2C (500 mm) |
2b BP2: Bay 3 | 2b NVMe 13 | MCIO x8 to Z-link 2C (500 mm) |
3a BP3: Bay 1 | 3a NVMe 1 | Swift x8 to Z-link 1C*2 (240 mm) |
3b BP3: Bay 3 | 3b NVMe 2 | Swift x8 to Z-link 1C*2 (240 mm) |
4a BP4: Bay 1 | 4a NVMe 3 | Swift x8 to Z-link 1C*2 (240 mm) |
4b BP4: Bay 3 | 4b NVMe 4 | Swift x8 to Z-link 1C*2 (240 mm) |
5a BP5: Bay 1 | 5a NVMe 5 | Swift x8 to Z-link 1C*2 (240 mm) |
5b BP5: Bay 3 | 5b NVMe 6 | Swift x8 to Z-link 1C*2 (240 mm) |
6a BP6: Bay 1 | 6a NVMe 7 | Swift x8 to Z-link 1C*2 (240 mm) |
6b BP6: Bay 3 | 6b NVMe 8 | Swift x8 to Z-link 1C*2 (240 mm) |
7a BP7: Bay 1 | 7a NVMe 11 | MCIO x8 to Z-link 2C (500 mm) |
7b BP7: Bay 3 | 7b NVMe 12 | MCIO x8 to Z-link 2C (500 mm) |
8a BP8: Bay 1 | 8a NVMe 15 | MCIO x8 to Z-link 2C (500 mm) |
8b BP8: Bay 3 | 8b NVMe 16 | MCIO x8 to Z-link 2C (500 mm) |
