Serial port cable routing

Follow the instructions in this section to learn how to do cable routing for the serial port module.

Note

  • Connections between connectors; 1↔1, 2↔2, 3↔3, ... n↔n

  • The Cable PN or FRU PN can be found on the label attached to the cable.

  • When routing the cables, make sure that all cables are routed appropriately through the corresponding cable guides and cable clips.

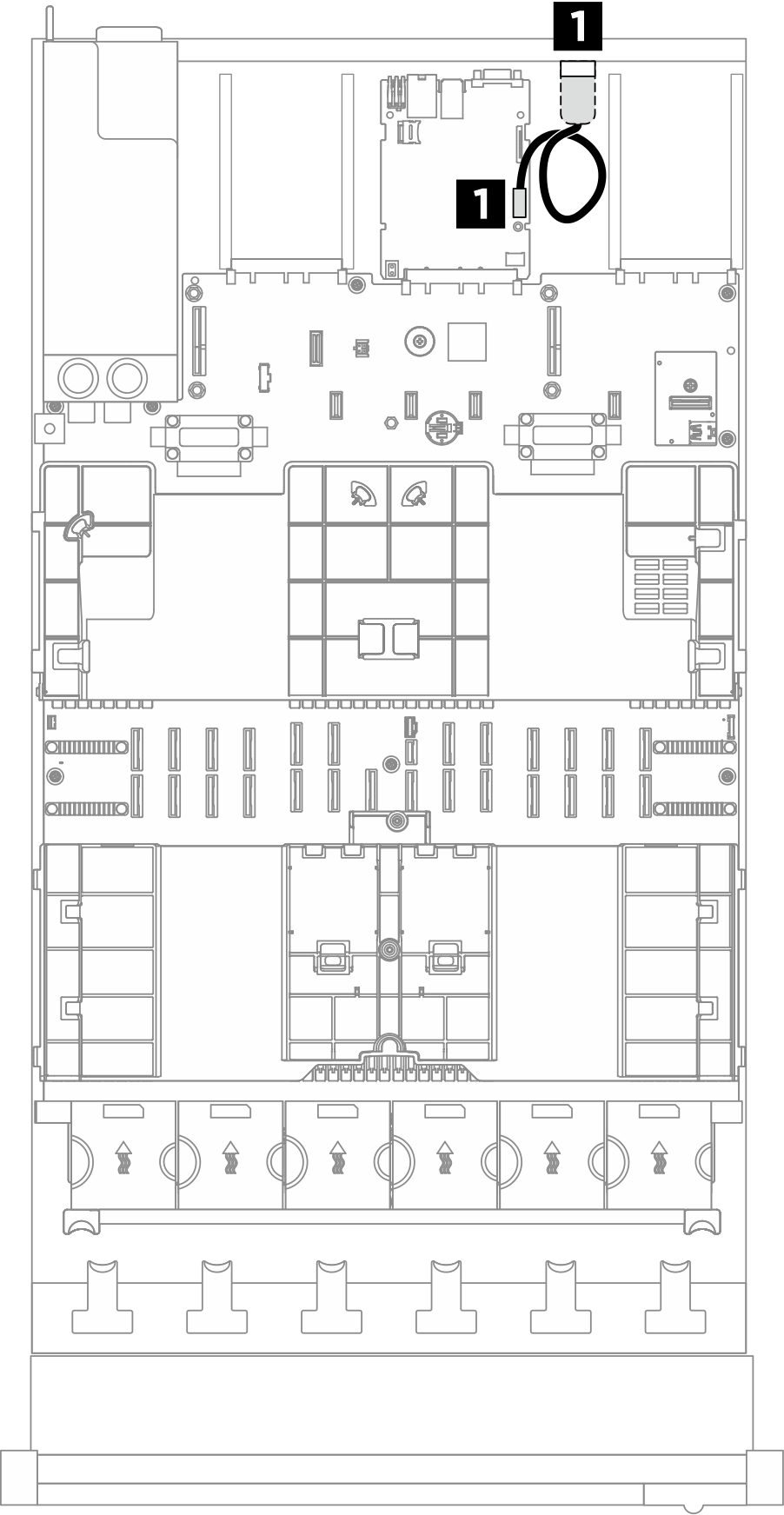

Figure 1. Serial port module cable routing for server model with three PCIe risers
Serial port module cable routing for server model with three PCIe risers

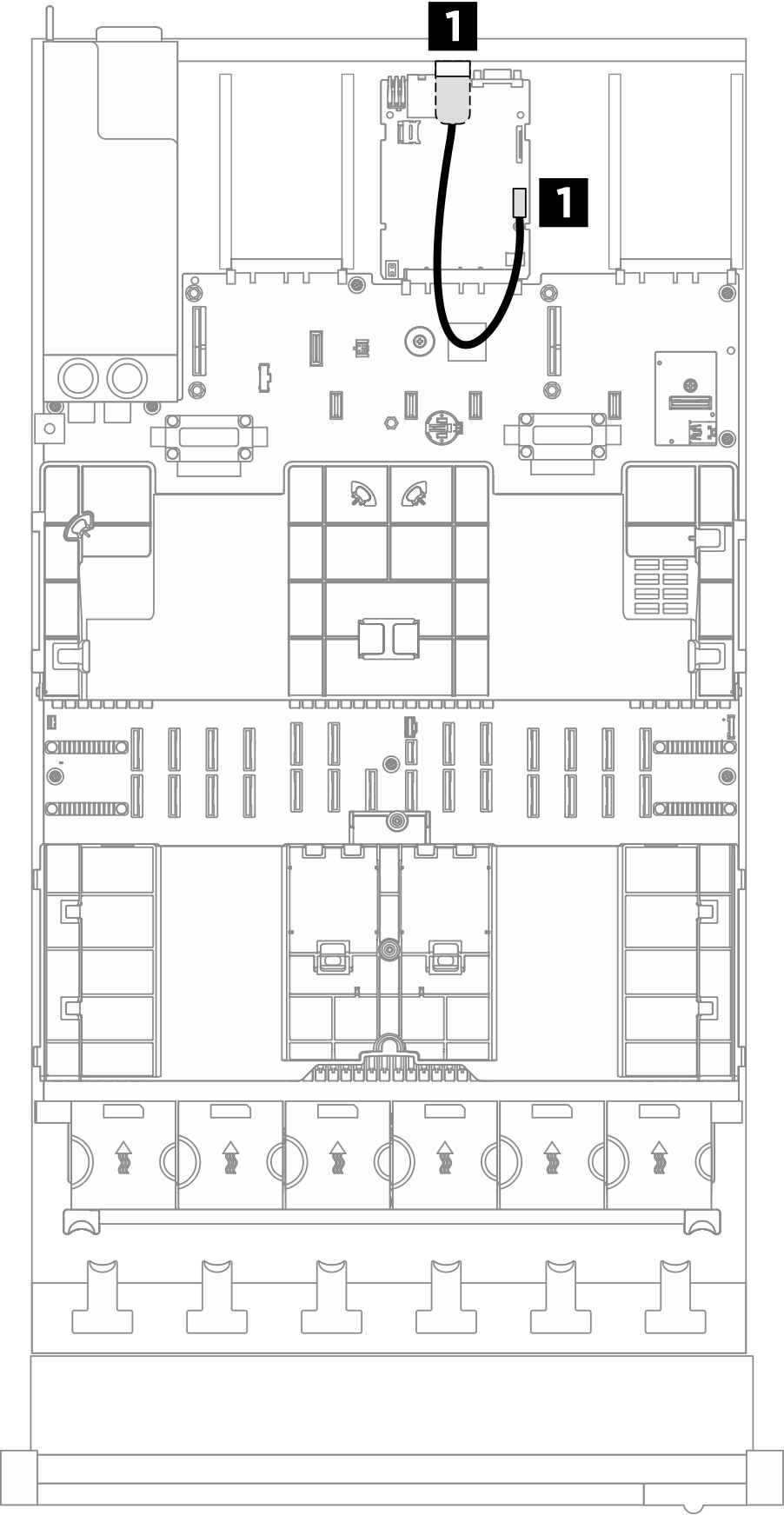

Figure 2. Serial port module cable routing for server model with four PCIe risers
Serial port module cable routing for server model with four PCIe risers
From (System board assembly)ToCable
1 Serial port connector1 Serial port module2x6p to COM port (220 mm)
