Rack latch cable routing

Follow the instructions in this section to learn how to do cable routing for rack latches.

Note

  • Connections between connectors; 1↔1, 2↔2, 3↔3, ... n↔n

  • The Cable PN or FRU PN can be found on the label attached to the cable.

  • When routing the cables, make sure that all cables are routed appropriately through the corresponding cable guides and cable clips.

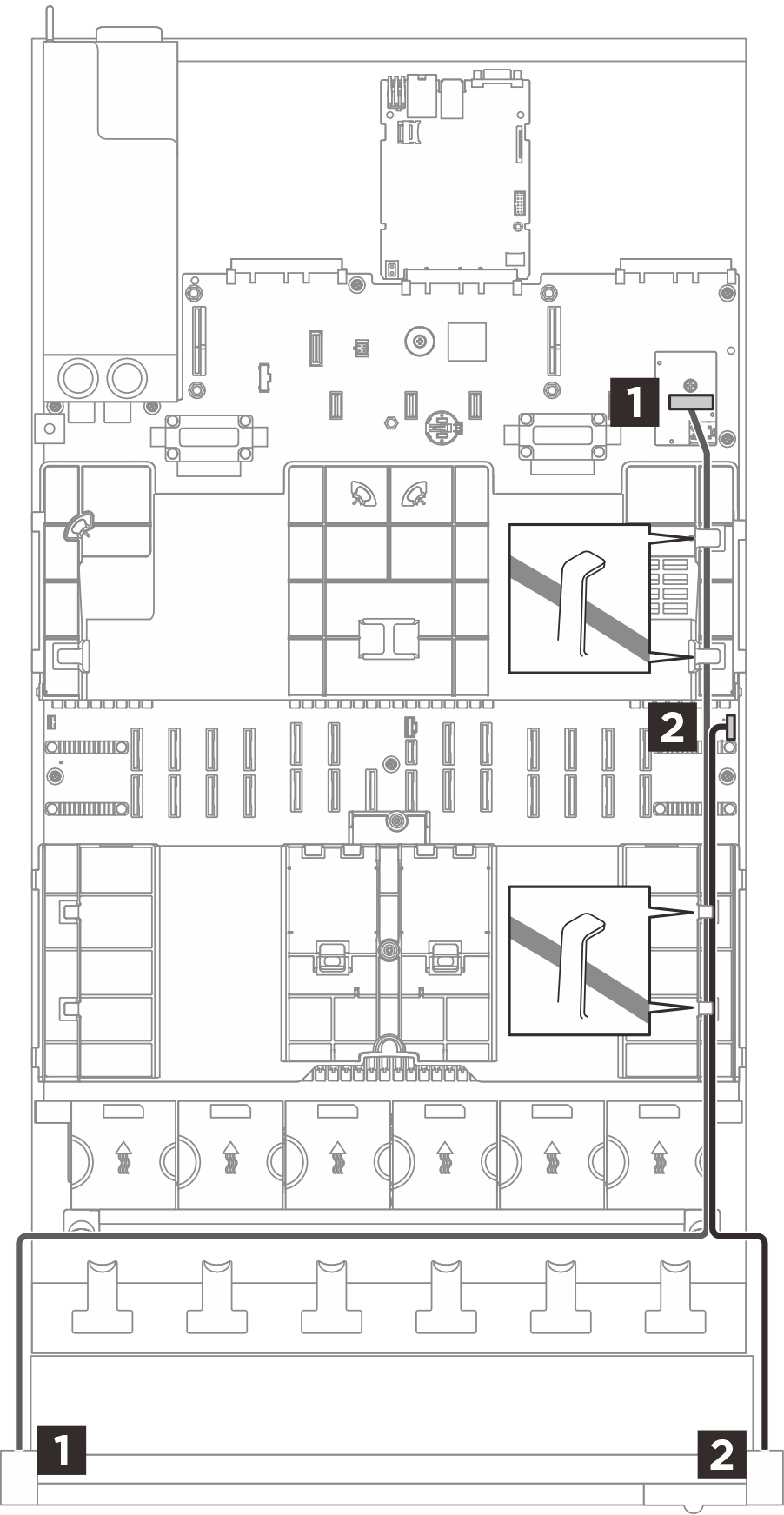

Figure 1. Cable routing for rack latches
Cable routing for rack latches
From (System board assembly)ToCable

1 USB I/O board

1 Left rack latch

MCIO x8 to USB 2x/Mini HD (1200 mm)

2 FIO

2 Right rack latch

1x9 to PCBA (550 mm)
