Flash power module cable routing
Follow the instructions in this section to learn how to do cable routing for the flash power modules.
Note
Connections between connectors; 1↔1, 2↔2, 3↔3, ... n↔n
The Cable PN or FRU PN can be found on the label attached to the cable.
When routing the cables, make sure that all cables are routed appropriately through the corresponding cable guides and cable clips.
Choose the routing plan according to the server model.
Flash power module cable routing (three risers)

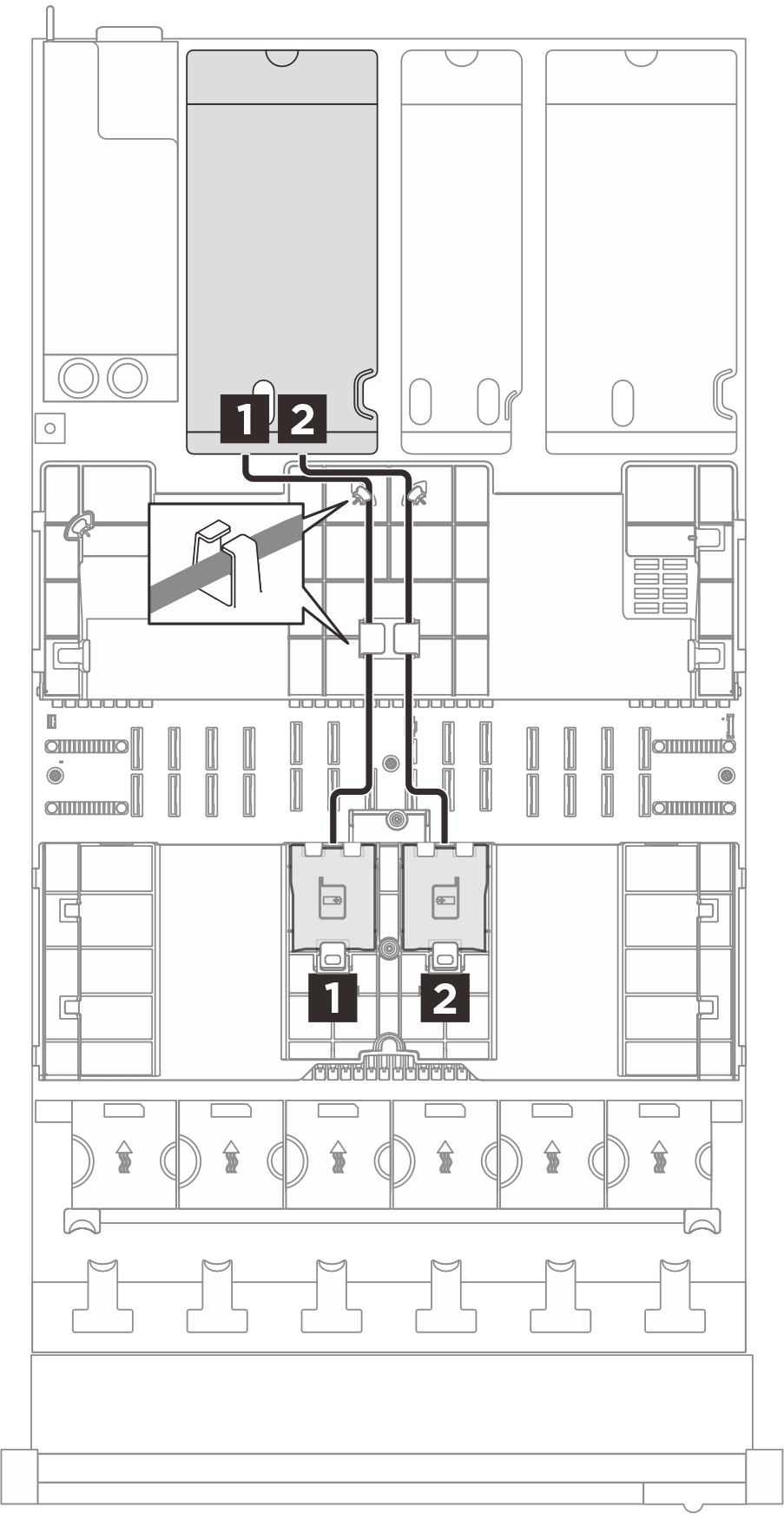

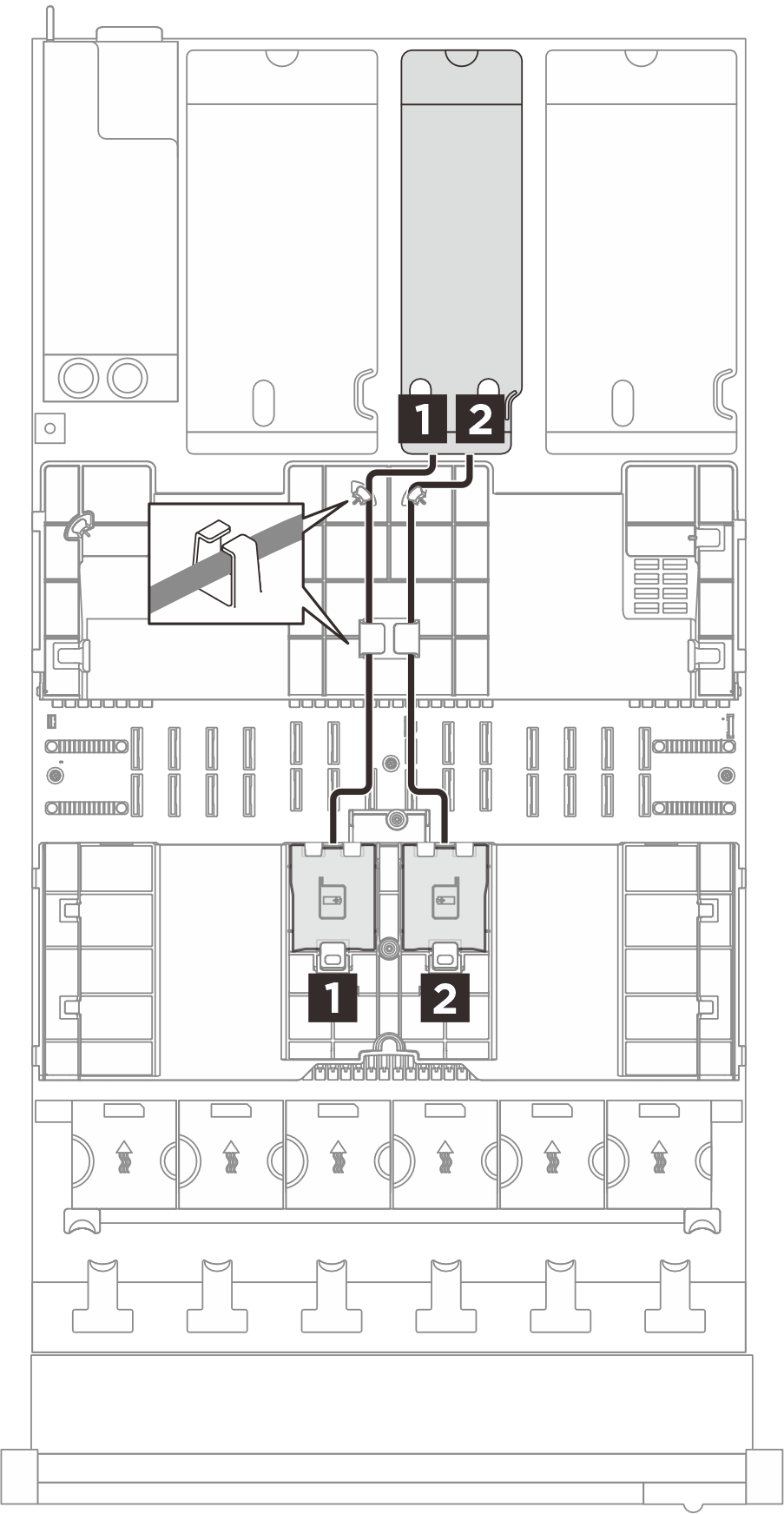

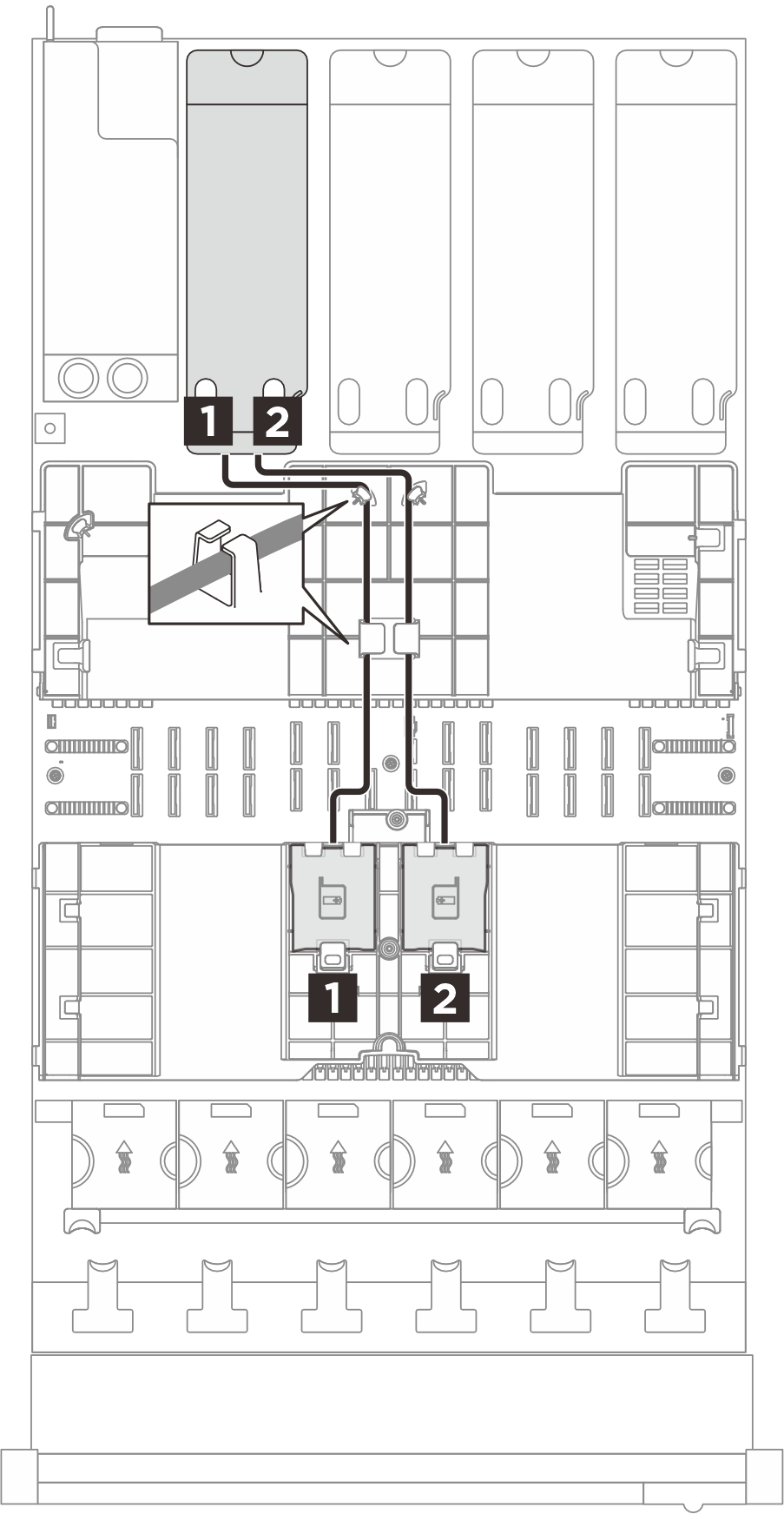

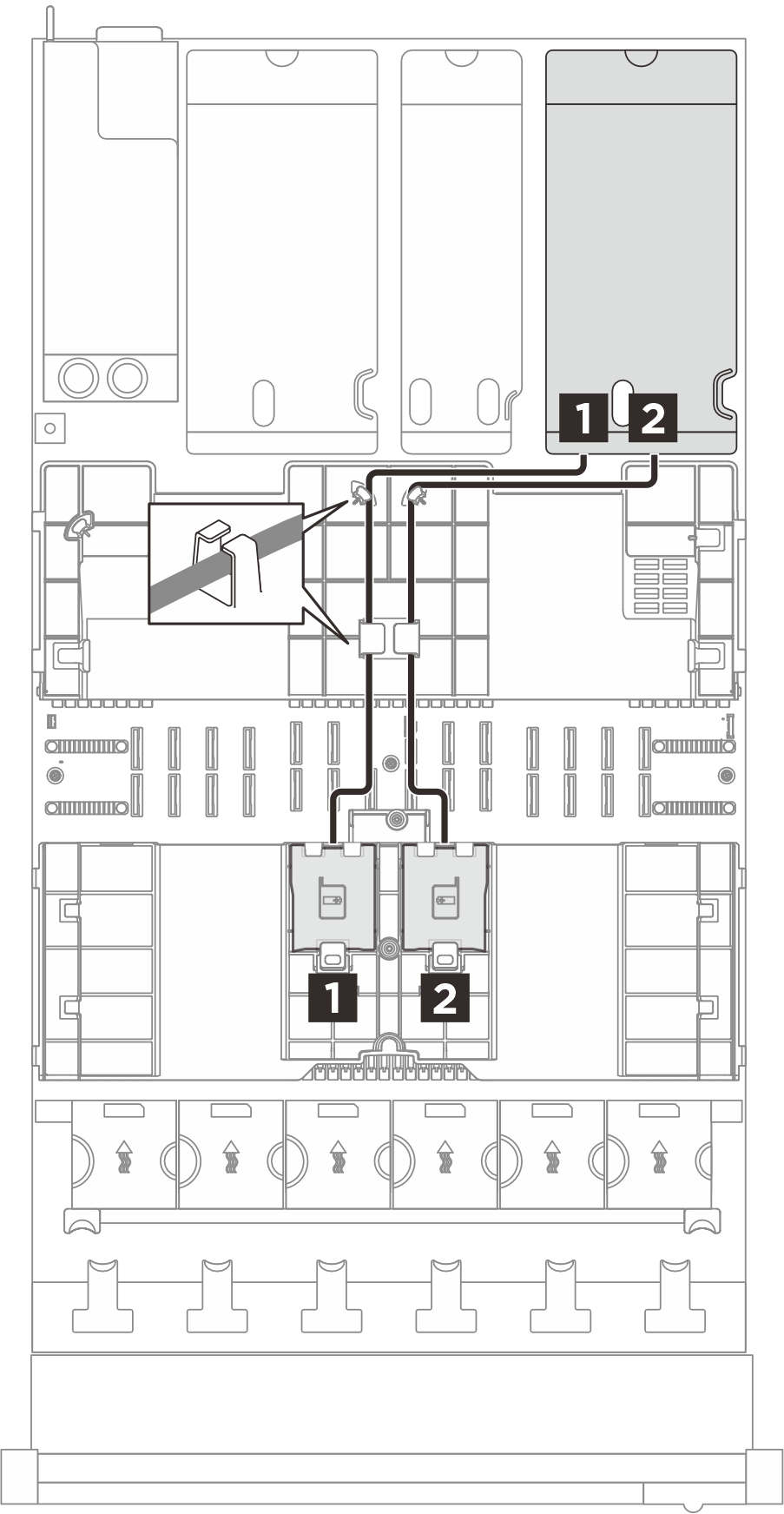

| Flash power module cable routing to riser 3 | Flash power module cable routing to riser 2 | Flash power module cable routing to riser 1 |
|---|---|---|
 |  |  |
| From | To | Cable |
|---|---|---|
| 1 Flash power module | 1 RAID adapter installed on PCIe riser |
|
| 2 Flash power module | 2 RAID adapter installed on PCIe riser |
|
Flash power module cable routing (four risers)

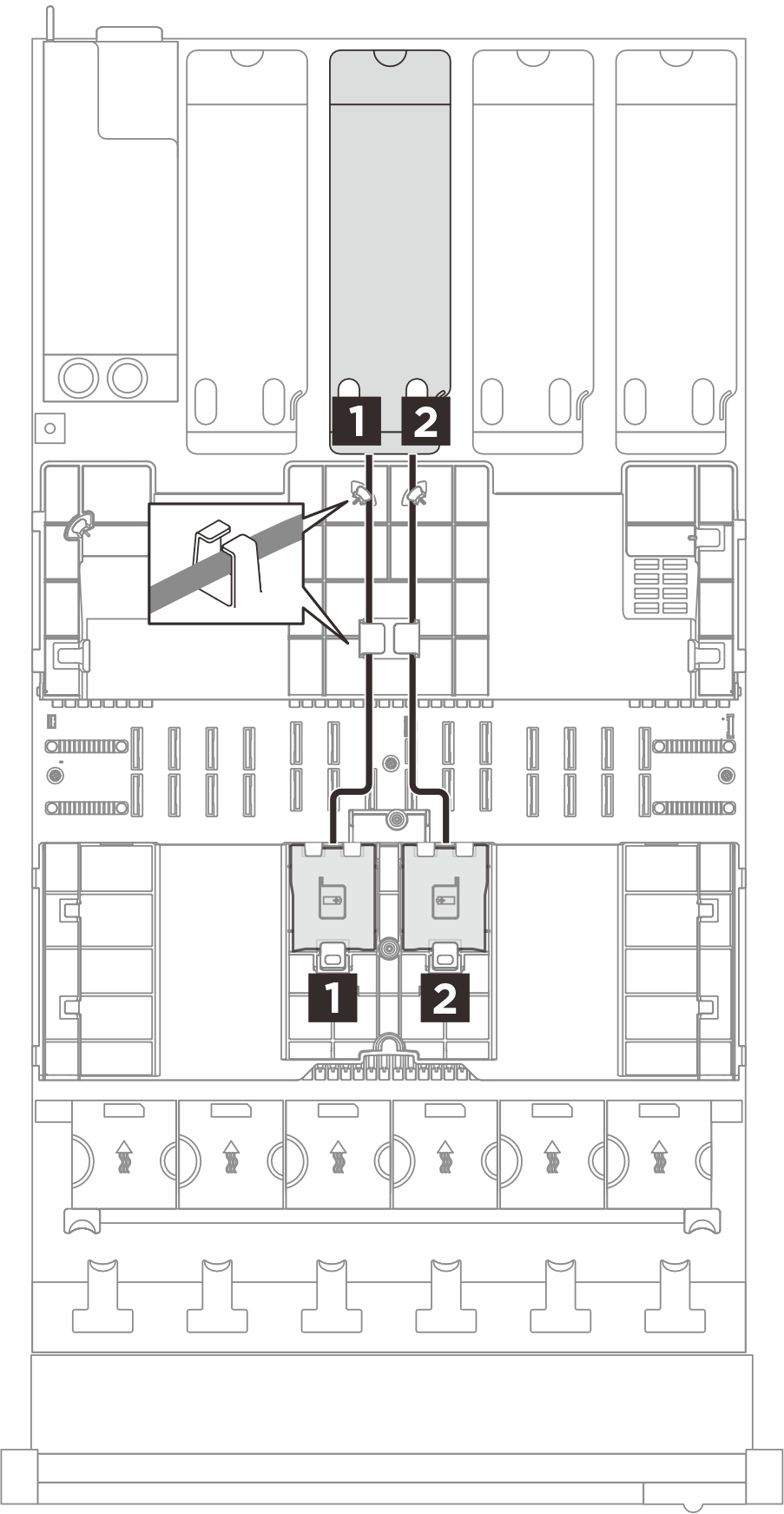

| Flash power module cable routing to riser A | Flash power module cable routing to riser B |
|---|---|
 |  |

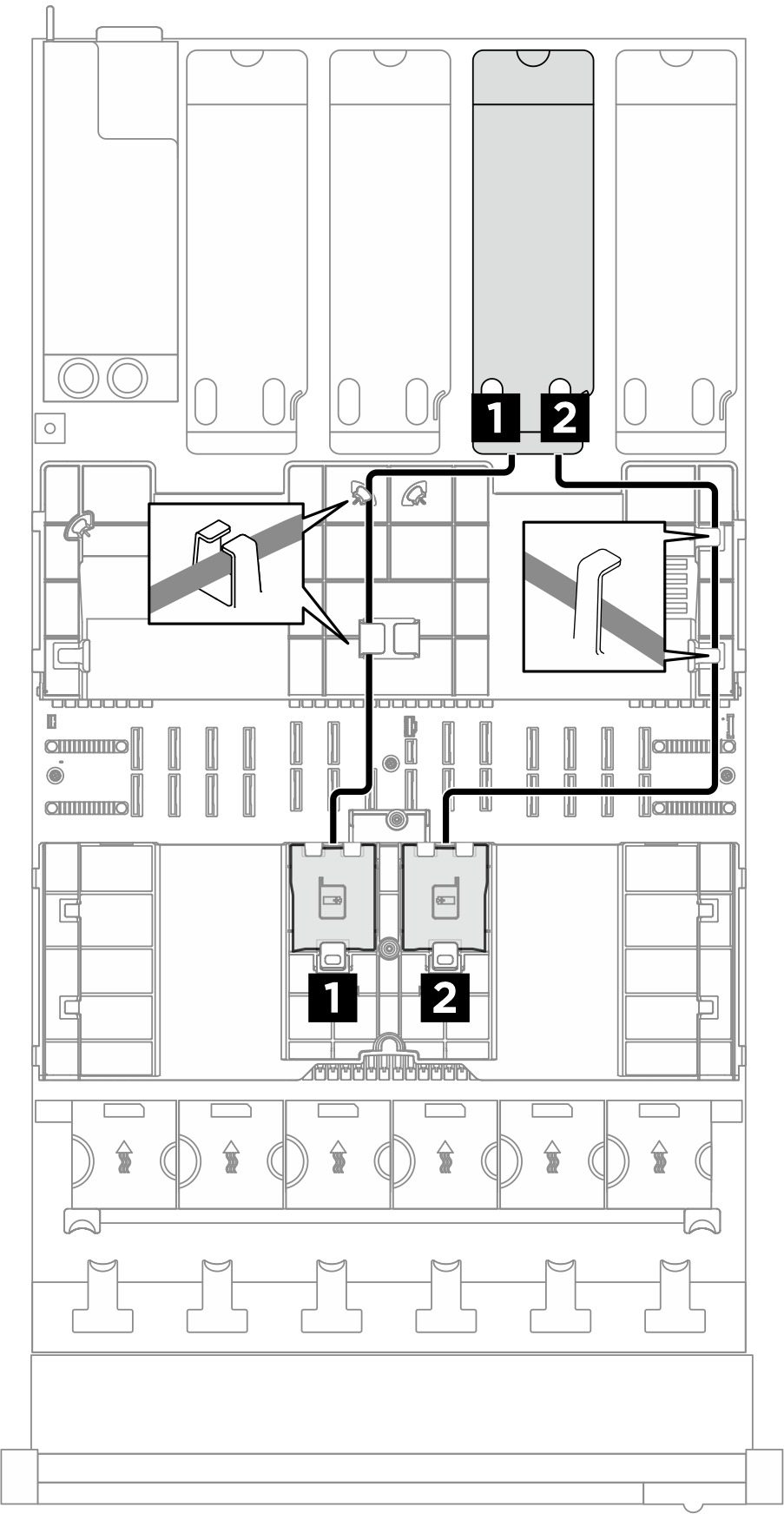

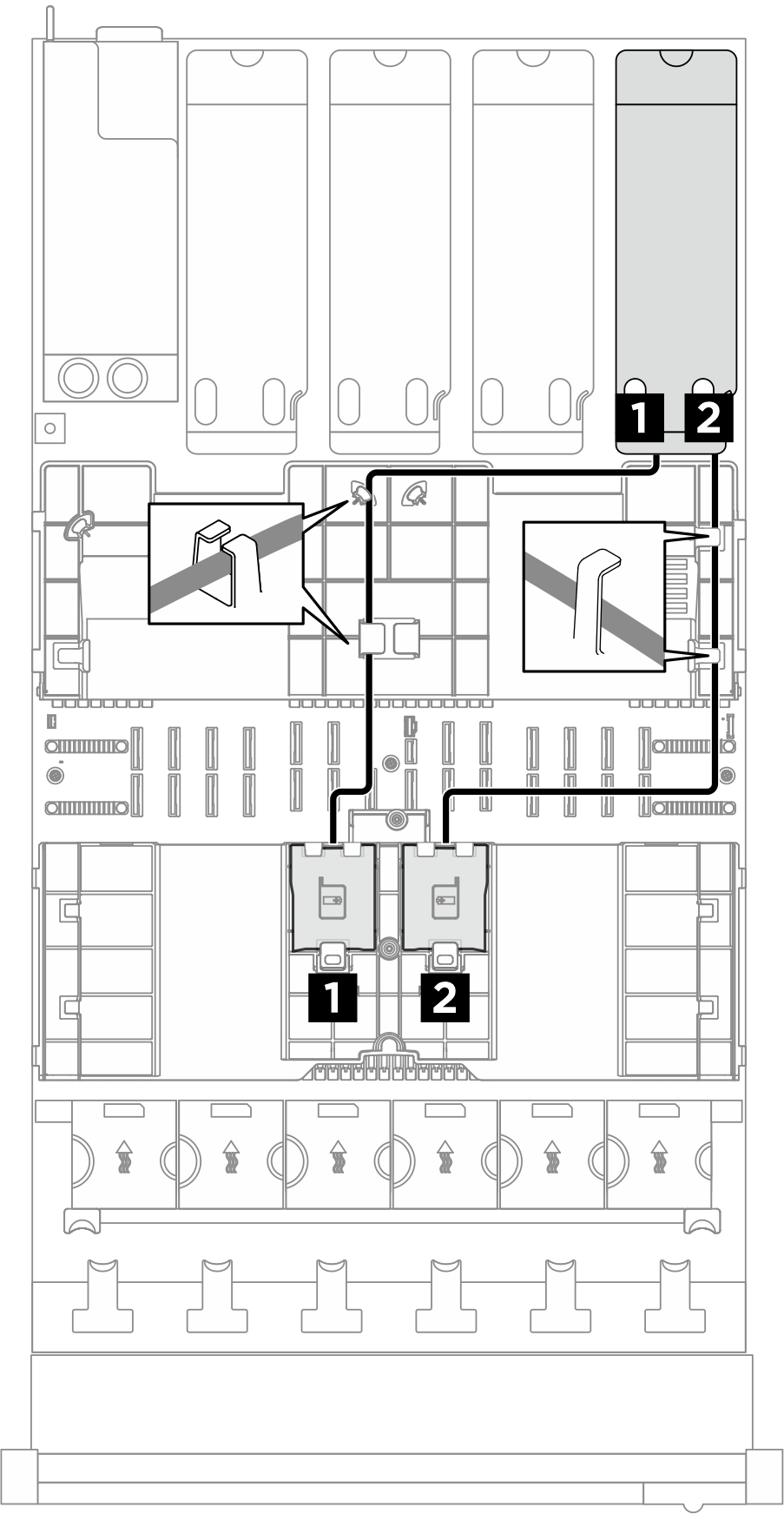

| Flash power module cable routing to riser C | Flash power module cable routing to riser D |
 |  |
| From | To | Cable |
|---|---|---|
| 1 Flash power module | 1 RAID adapter installed on PCIe riser |
|
| 2 Flash power module | 2 RAID adapter installed on PCIe riser |
|
