Cable routing for bay 3 drive

Follow the instructions in this section to learn how to do cable routing for the drive in bay 3.

For the system-board connector locations, see System-board connectors.

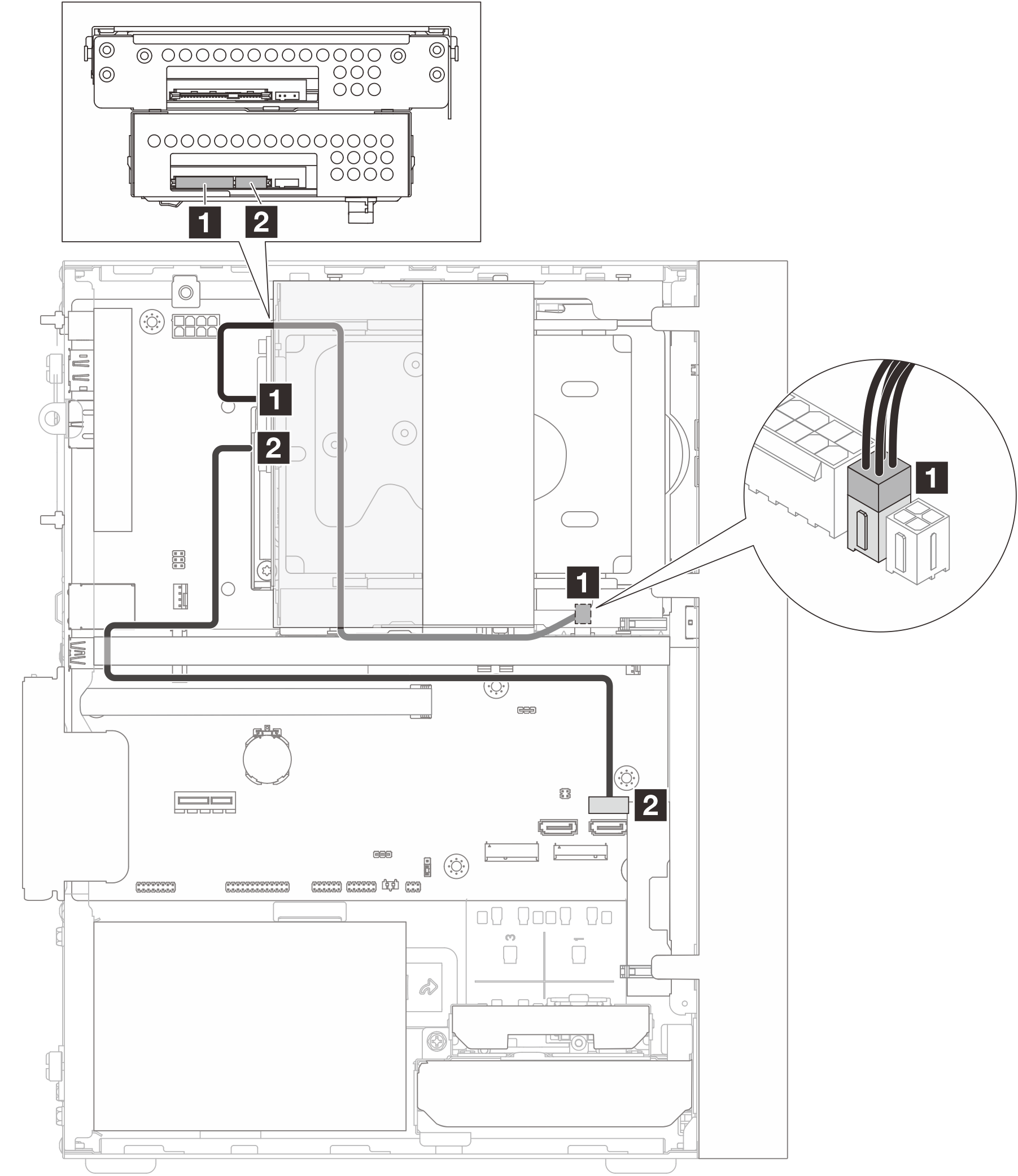

Figure 1. Cable routing for bay 3 drive

From (bay 3 drive)	To (system board)	Cable
1 Signal connector	1 SATA 3 connector	7pin SATA to 7pin RA SATA cable, 185 mm
2 Power connector	2 SATA power 1 connector	4pin power cable, 300 mm/80 mm
