Install the system I/O board (DC-SCM)

Use this information to install the system I/O board. System I/O board is also known as Datacenter-ready Secure Control Module (DC-SCM).

Procedure

1. Install the system I/O board.
   1. Install the system I/O board to the system board assembly.
   2. Install two M3 PH1 screws to secure the system I/O board to the system board assembly.

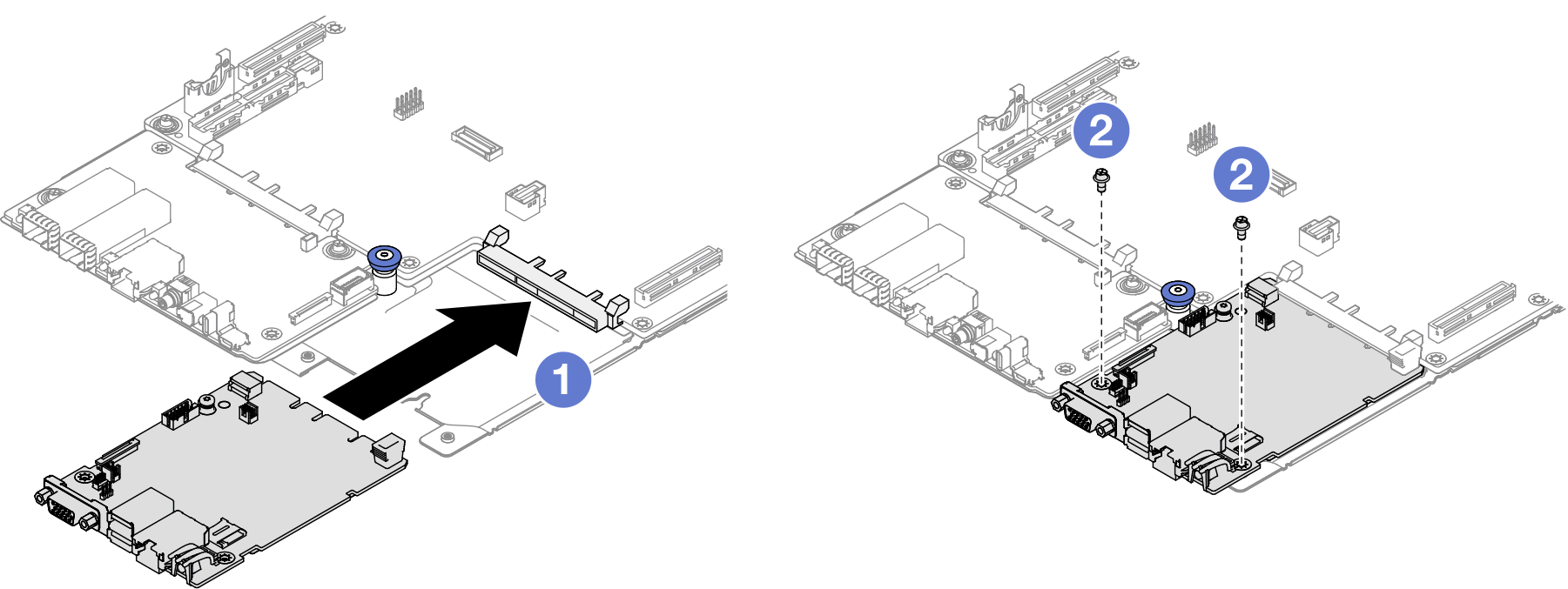

   Figure 1. Installing the system I/O board


2. Install the FPC cable to the front I/O board and the system I/O board.
   1. Pull up the latch of the connectors on the front I/O board and the system I/O board.
      Figure 2. Pulling up connector latches


   2. Match the silkscreen on the FPC cable and the connectors. Then, install the FPC cable to the front I/O board and the system I/O board.

      FPC cable connection to FIO board and system I/O board
      From		To
      FPC cable end marked as FIO SIDE	→	FIO SIDE connector on Front I/O board
      FPC cable end marked as SCM SIDE	→	PHY CONN connector on system I/O board

      Figure 3. FPC cable connection


   3. There is a white line on both ends of the FPC cable. Insert the FPC cable to the connectors until the white lines are invisible. The FPC cable is not installed correctly if the white lines are visible.
      Figure 4. Checking proper FPC cable installation



      If the white line is still visible after inserting the FPC cable, check if the connector latches are fully pulled up and loosen.

      Figure 5. Pulling up connector latches


   4. Press the latches to secure the FPC cable to the connectors.
      Figure 6. Pressing connector latches


3. A label is attached to the COM port cable. Roll the label around the cable all the way through to prevent label interfering with system connectors and water loop.
   Figure 7. Rolling label around the COM port cable


4. Install the COM port cable to the front I/O board and system I/O board. Place the cable between plunger and serial log connector.

   1 Serial log connector on front I/O board

   2 COM port connector on system I/O board

   Figure 8. Removing COM port cable



   Attention

   The COM port cable should be placed between the plunger and the serial log connector.

   Figure 9. Top view of COM port cable routing


5. Install the system-board assembly to the tray.
   Note

   Hold the system-board assembly by the thumbscrew in the front and the tab beside the power connector.

   Figure 10. Holding the system-board assembly


   1. Place the system board assembly into the tray.
      Figure 11. Installing the system-board assembly


   2. Press the SFP Ethernet ports on the FIO board.
   3. While pressing the SFP Ethernet ports, slide the system board assembly forward to secure the front connectors in the corresponding openings on the front bezel.
   Figure 12. Securing the system board assembly to the tray


6. Make sure the PDB tray handles are rotate to unlock position.
   Figure 13. PDB tray handle unlock position


7. Install the PDB tray.
   1. Align the power connectors on PDB tray to the power connectors to the system boards.
   2. There are triangle markings on the inside of the right-side and left-side of the tray. Push the PDB tray into the server tray. Stop pushing when the PDB tray meets the triangle markings.
   3. Rotate both PDB tray handles at the same time to the lock position
   Attention

   Make sure to rotate both handles at the same time.

   Figure 14. Installing the PDB tray


8. Install two PH1 screws from the outside of the tray.
   Figure 15. Installing screws from the outside of the tray.


9. Fasten the three PH1 captive screws to install the PDB tray to the server tray.
   Figure 16. Fastening captive screws


10. Fasten two PH1 captive screws to secure the system-board assembly to the tray.
    Figure 17. Fastening captive screws on system-board assembly
