Install the PCIe riser card

Follow the instructions in this section to install the PCIe riser card.

S002
disconnect all power
CAUTION
The power-control button on the device and the power switch on the power supply do not turn off the electrical current supplied to the device. The device also might have more than one power cord. To remove all electrical current from the device, ensure that all power cords are disconnected from the power source.

About this task

Attention

  • Read Installation Guidelines and Safety inspection checklist to ensure that you work safely.

  • Touch the static-protective package that contains the component to any unpainted metal surface on the server; then, remove it from the package and place it on a static-protective surface.

Procedure

Install the PCIe riser card.
  1. Align the PCIe riser card with the connector on the expansion kit; then, carefully press the PCIe riser card straight into the slot until it is securely seated.
  2. Tighten the three screws to secure the PCIe riser card.

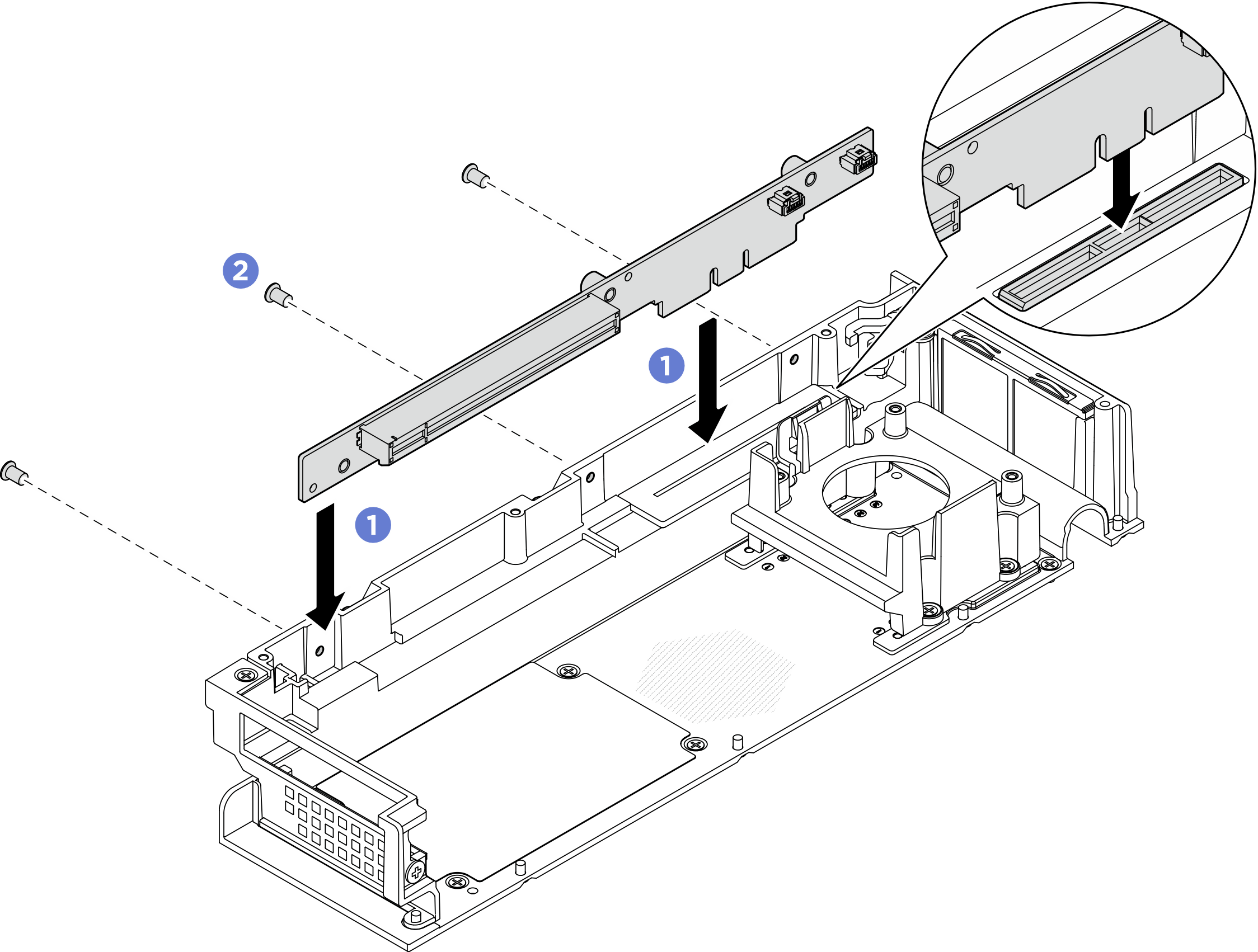

    Figure 1. Installing the PCIe riser card

After you finish

  1. Install the PCIe adapter to the PCIe slot. See Install the PCIe adapter.
  2. Install the expansion top cover. See Install the expansion top cover.
  3. Install the expansion kit to the node. See Install the expansion kit.
  4. Complete the parts replacement. See Complete the parts replacement.
