Install a power supply bracket (CRPS)

Follow the instructions in this section to install a power supply bracket (CRPS).

About this task

Attention

  • Read Installation Guidelines and Safety inspection checklist to ensure that you work safely.

  • Power off the server and peripheral devices and disconnect the power cords and all external cables. See Power off the server.

  • Prevent exposure to static electricity, which might lead to system halt and loss of data, by keeping static-sensitive components in their static-protective packages until installation, and handling these devices with an electrostatic-discharge wrist strap or other grounding system.

Note
A power supply bracket is only available on models configured with CRPS power supplies.

Procedure

  1. Align and install the power supply bracket into the power supply bay.
    Figure 1. Installing power supply bracket

    Installing power supply bracket
  2. Secure the power supply bracket.

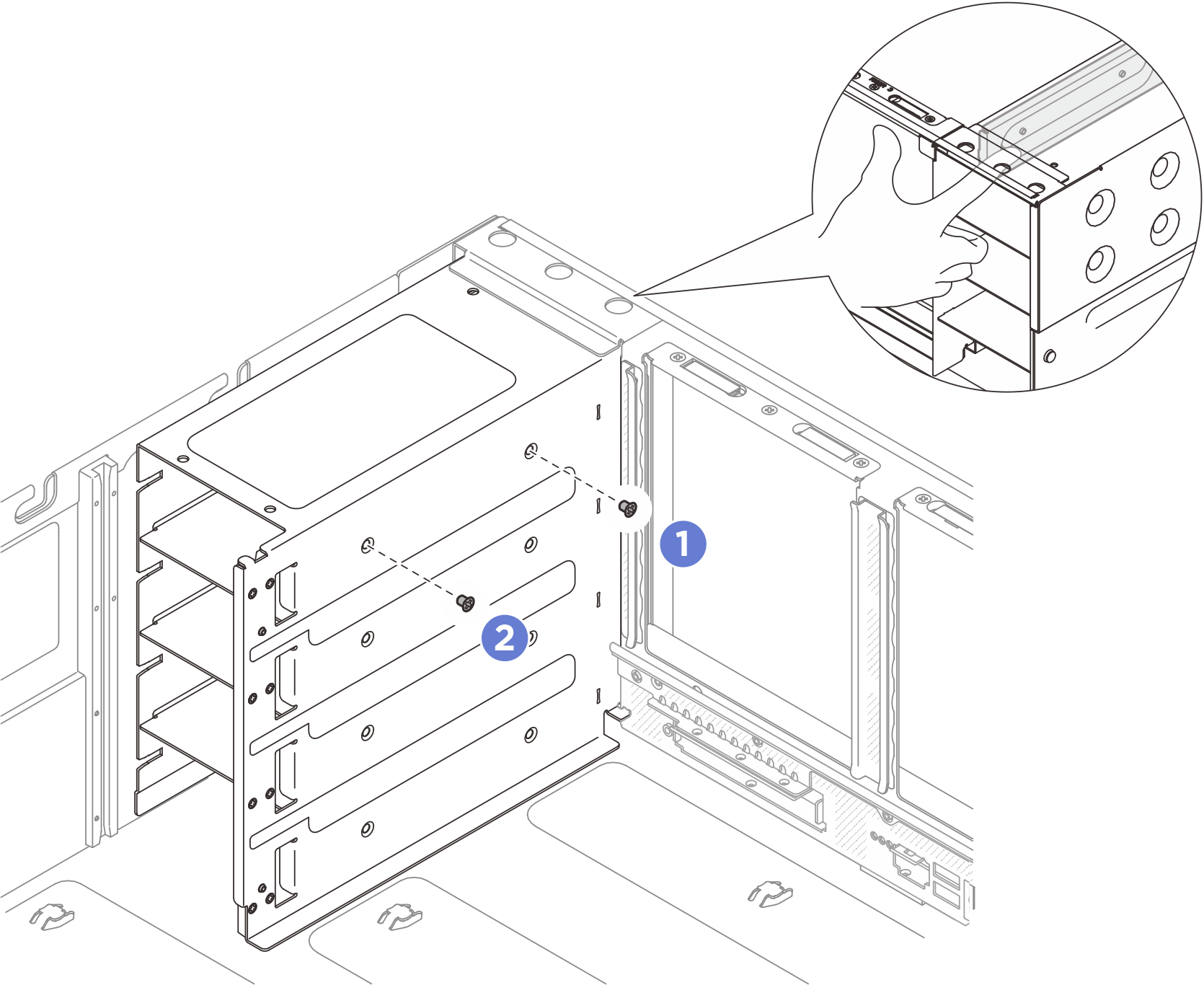

    Figure 2. Securing power supply bracket

    Securing power supply bracket
    Note
    Hold the power supply bracket in place while installing or removing the screws.
    1. Install the outer screw.
    2. Install the inner screw.

After you finish

  1. Reinstall the PCIe riser if you have removed it. See Install the PCIe riser.

  2. Reinstall the power distribution board. See Install the power distribution board.

  3. Reinstall the rear top cover. See Install the rear top cover.

  4. Reinstall the front top cover. See Install the front top cover.

  5. Reinstall the power supply units. See Install a power supply unit.

  6. Complete the parts replacement. See Complete the parts replacement.
