Install the rack latches

Follow the instructions in this section to install the rack latches.

About this task

Attention

  • Read Installation Guidelines and Safety inspection checklist to ensure that you work safely.

  • Power off the server and peripheral devices and disconnect the power cords and all external cables. See Power off the server.

  • Prevent exposure to static electricity, which might lead to system halt and loss of data, by keeping static-sensitive components in their static-protective packages until installation, and handling these devices with an electrostatic-discharge wrist strap or other grounding system.

Note
This section uses the right rack latch as an example for illustration. The procedure for the left rack latch is the same.

Procedure

  1. Touch the static-protective package that contains the new part to any unpainted surface on the outside of the server. Then, take the new part out of the package and place it on a static-protective surface.
  2. Align the rack latch cable with the cable guide on the chassis, carefully route the cable into the chassis, then press the rack latch onto the chassis and slightly slide it backward.
    Note
    To avoid damage to the cable, make sure that the cable is properly routed and does not cover the screw holes, as shown below.

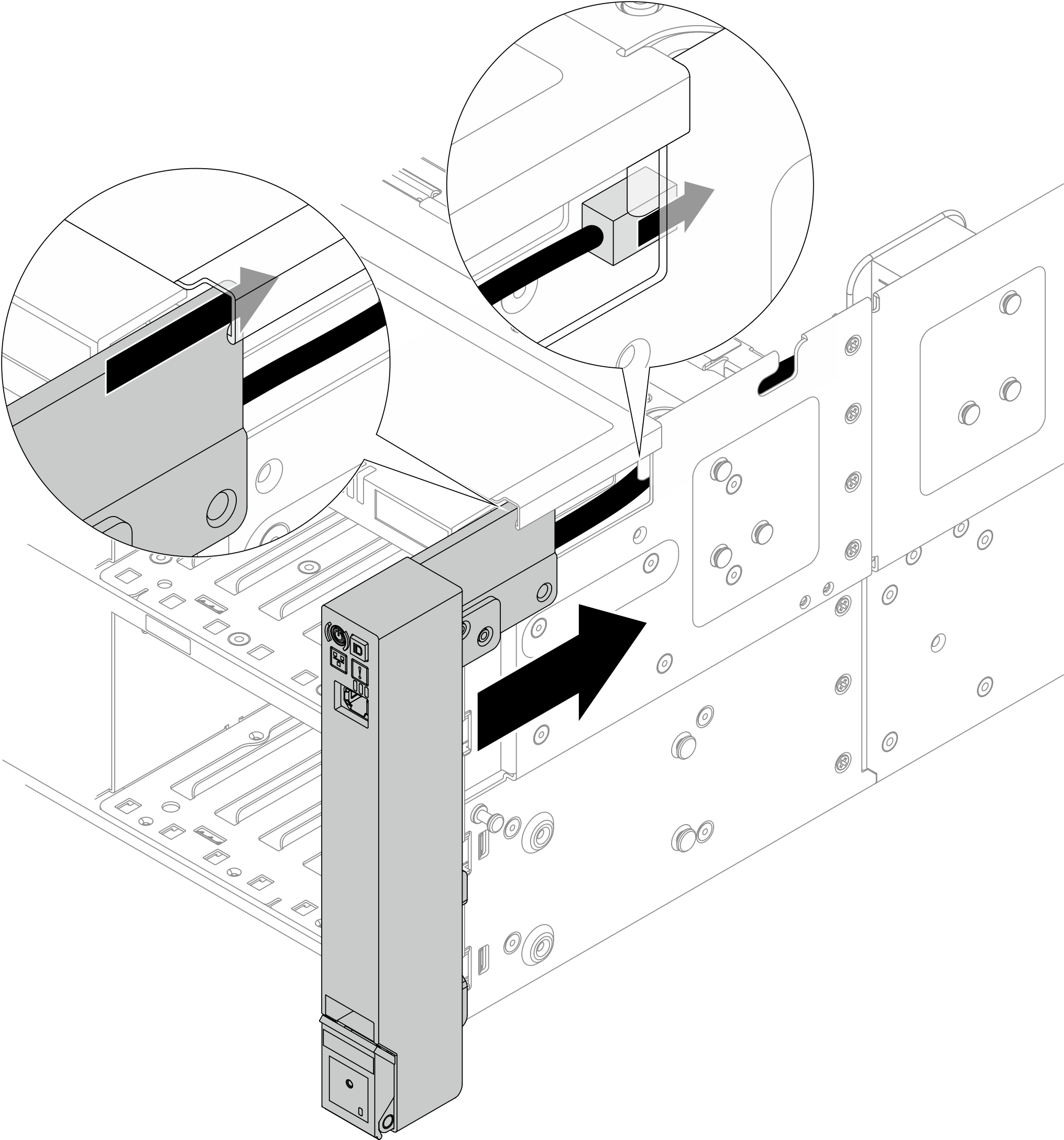

    Figure 1. Installing the rack latch
    Installing the rack latch
  3. Install the screws to secure the rack latch on the side of the server.
    Figure 2. Installing the screws
    Installing the screws
  4. Connect the rack latch cable to the system board assembly. See Internal cable routing for more information on the internal cable routing.

After you finish

  1. Reinstall the rear air baffle. See Install the rear air baffle.
  2. Reinstall the PCIe riser 1 if you have removed it. See Install the PCIe riser.
  3. Reinstall the rear top cover. See Install the rear top cover.
  4. Reinstall the front top cover. See Install the front top cover.

  5. Complete the parts replacement. See Complete the parts replacement.

  6. Reinstall the security bezel if you have removed it. See Install the security bezel.
