Kabelführung der hinteren M.2-Rückwandplatine
Dieser Abschnitt enthält Informationen zur Kabelführung für die hintere M.2-Rückwandplatine.

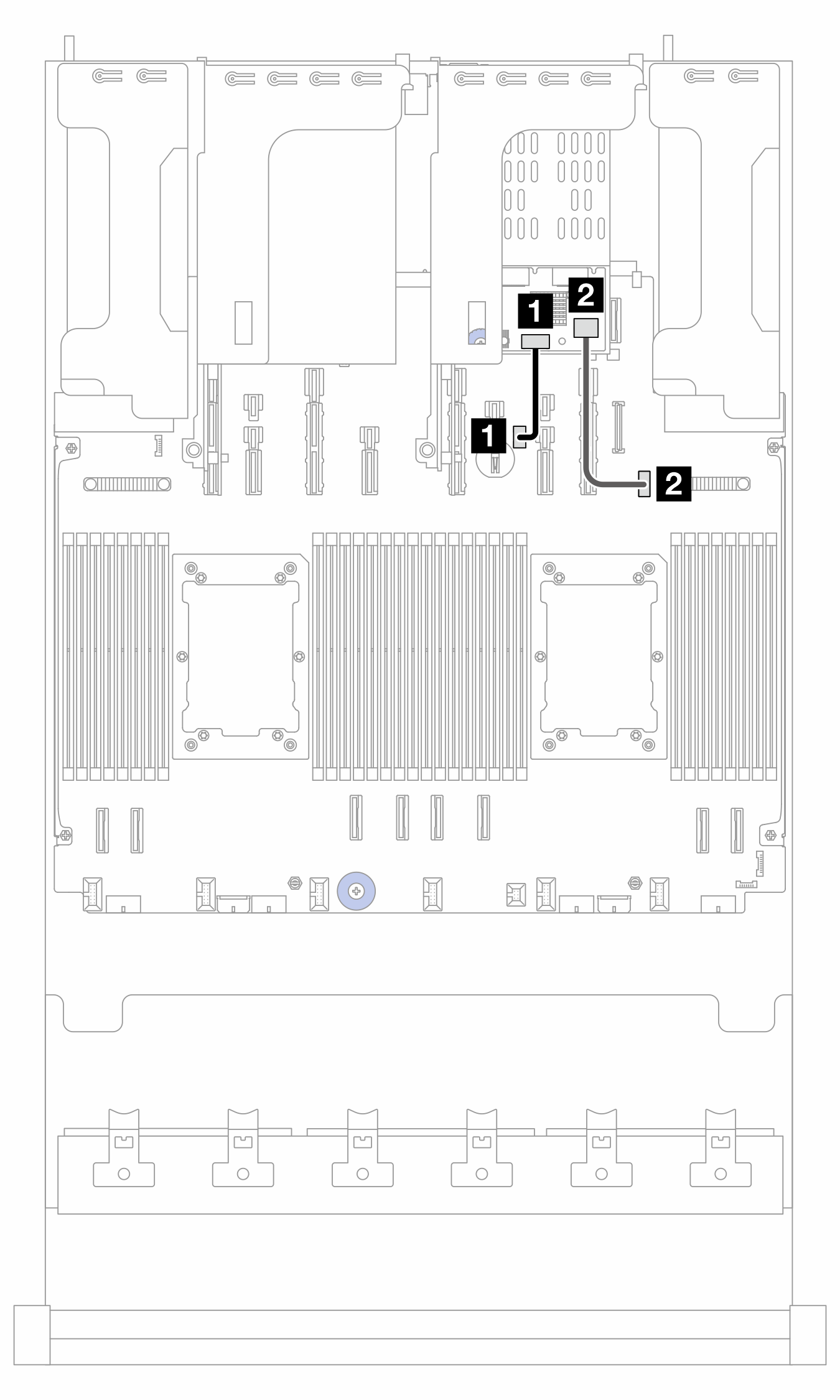

Abbildung 1. Kabelführung für hintere Rückwandplatine für M.2-Laufwerke


Von (hintere M.2-Rückwandplatine) | Zu (Prozessorplatine) | Länge |
---|---|---|
1 Netzteilanschluss | 1 M.2-Netzteilanschluss | 320 mm |
2 Signalanschluss | 2 Signalanschluss für M.2-Rückwandplatine | 310 mm |
