Kabelführung der Adapterkarte

Dieser Abschnitt enthält Informationen zur Kabelführung für die Adapterkarten.

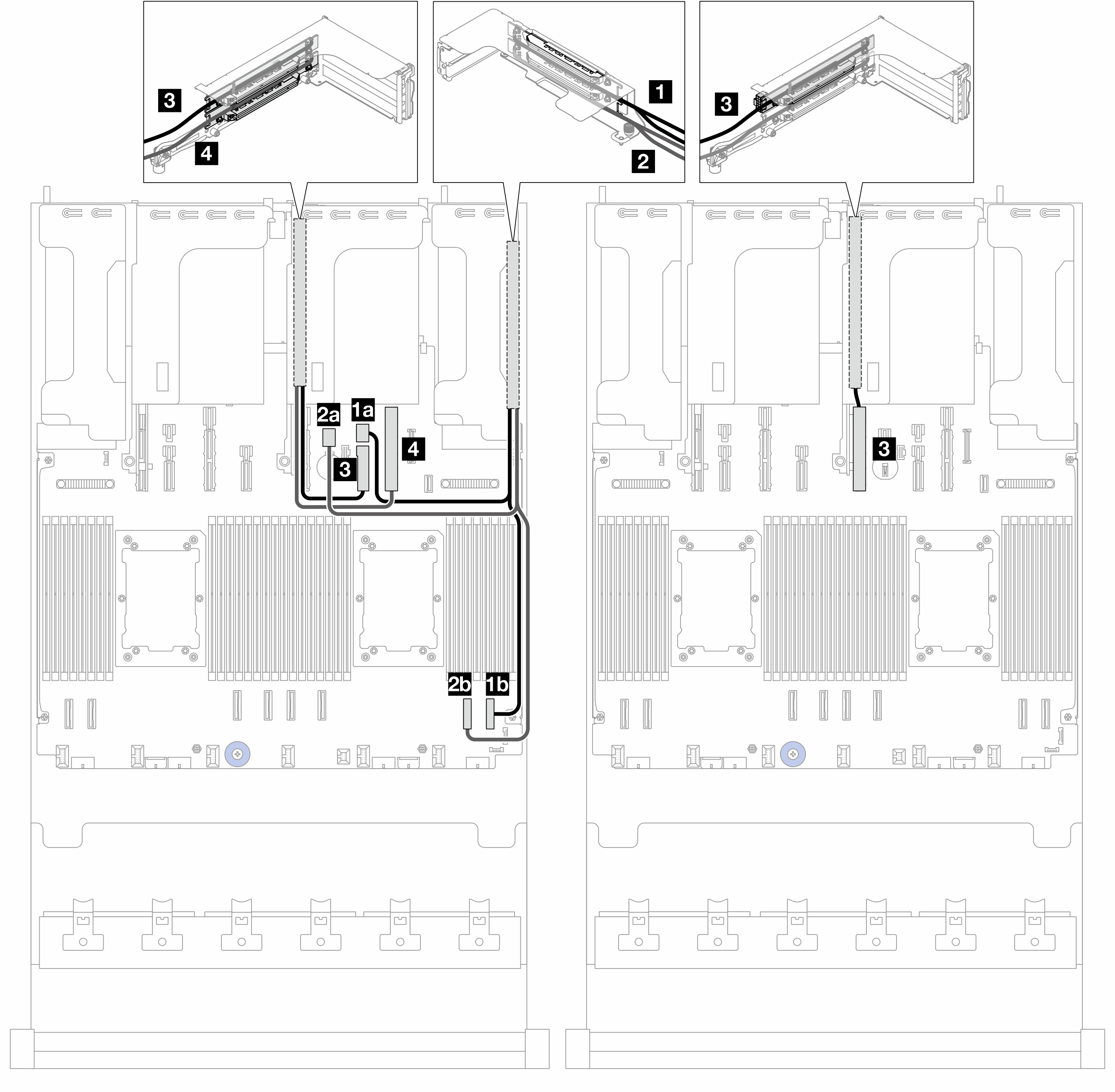

Kabelführung für Adapterkarten für Prozessor 1



VonZu (Prozessorplatine)Kabellänge
1 Adapterkarte in Steckplatz 11a PWR 20500/400 mm
1b PCIe 1
2 Adapterkarte in Steckplatz 22a PWR 21500/400 mm
2b PCIe 2
3 Adapterkarte in Steckplatz 33 PCIe und PWR 10 (wenn Steckplatz 5 belegt ist)350 mm
3 PCIe und PWR 11 (wenn Steckplatz 5 leer ist)300 mm
4 Adapterkarte in Steckplatz 44 PCIe und PWR 9300 mm

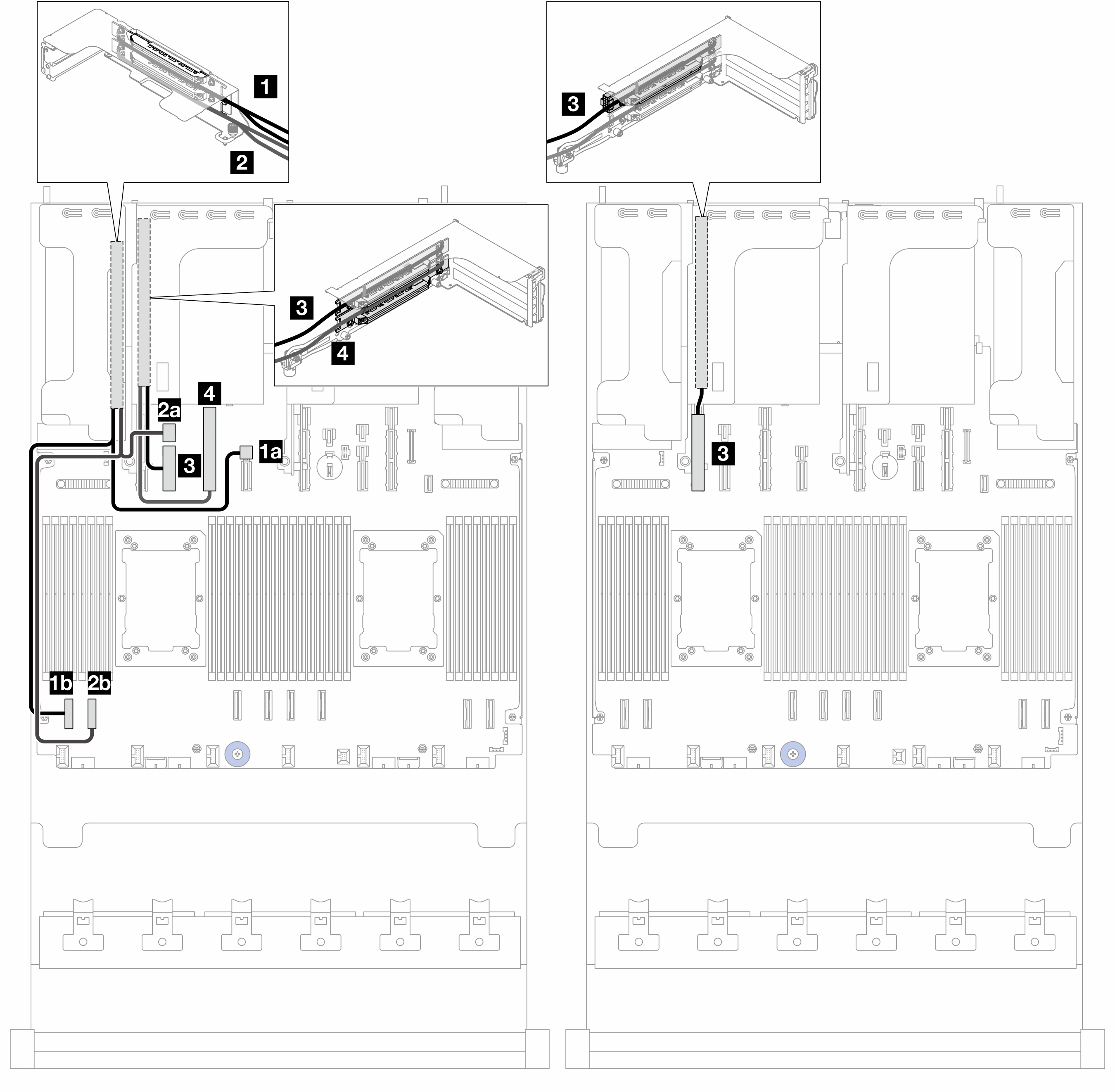

Kabelführung für Adapterkarten für Prozessor 2



VonZu (Prozessorplatine)Kabellänge
1 Adapterkarte in Steckplatz 91a PWR 12500/400 mm
1b PCIe 8
2 Adapterkarte in Steckplatz 102a PWR 23500/400 mm
2b PCIe 7
3 Adapterkarte in Steckplatz 63 PCIe und PWR 14 (wenn Steckplatz 8 belegt ist)350 mm
3 PCIe und PWR 15 (wenn Steckplatz 8 leer ist)300 mm
4 Adapterkarte in Steckplatz 74 PCIe und PWR 13300 mm

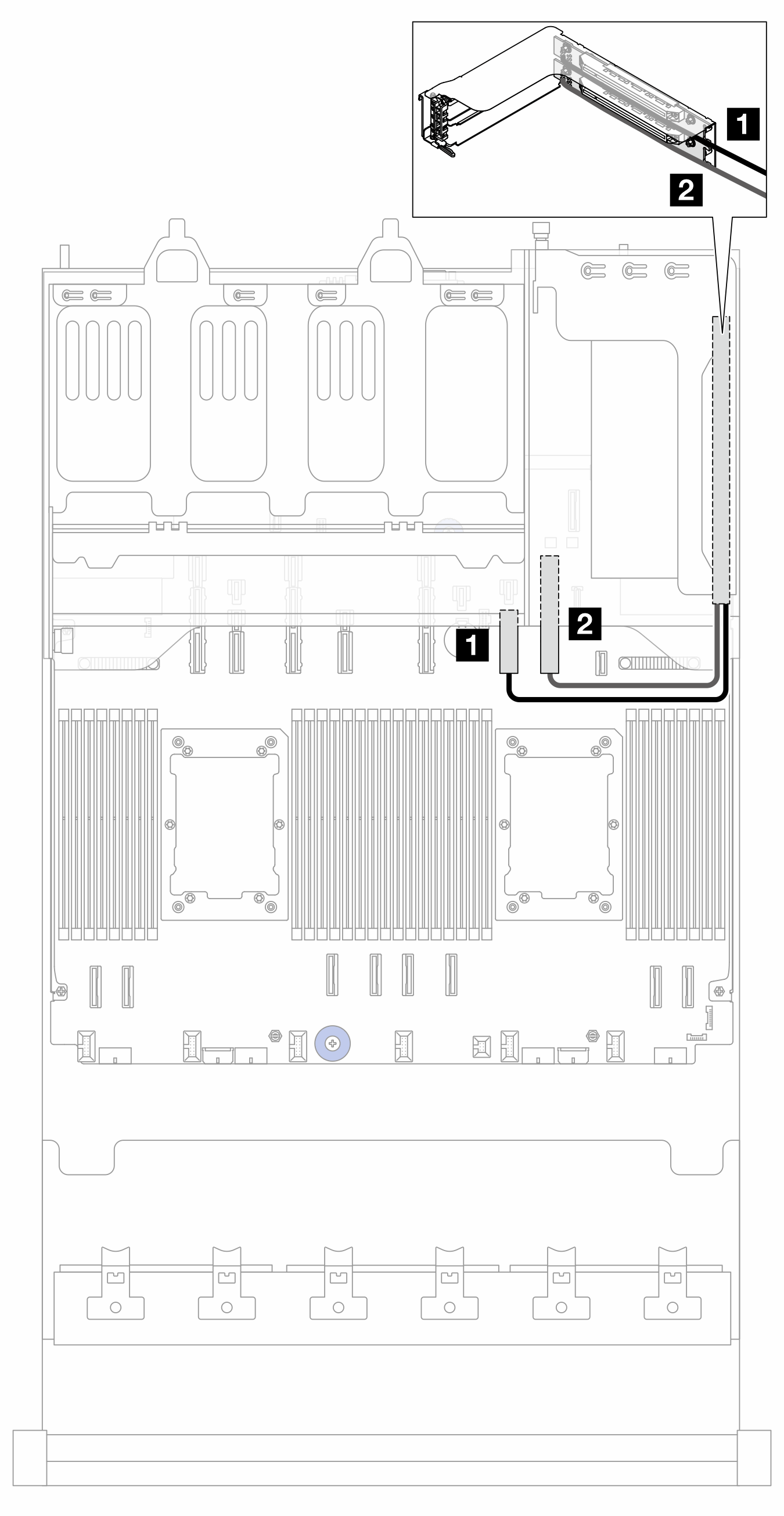

Kabelführung für Adapterkarten bei Konfigurationen mit 8 x 2,5-Zoll-Laufwerkposition an der Rückseite



VonZu (Prozessorplatine)Kabellänge
1 Adapterkarte in Steckplatz 11 PCIe und PWR 10350 mm
2 Adapterkarte in Steckplatz 22 PCIe und PWR 9300 mm
