Kabelführung für vordere M.2-Boot-Rückwandplatine und Controllerplatine
Dieser Abschnitt enthält Informationen zur Kabelführung für die vordere M.2-Boot-Rückwandplatine und die Controllerplatine.

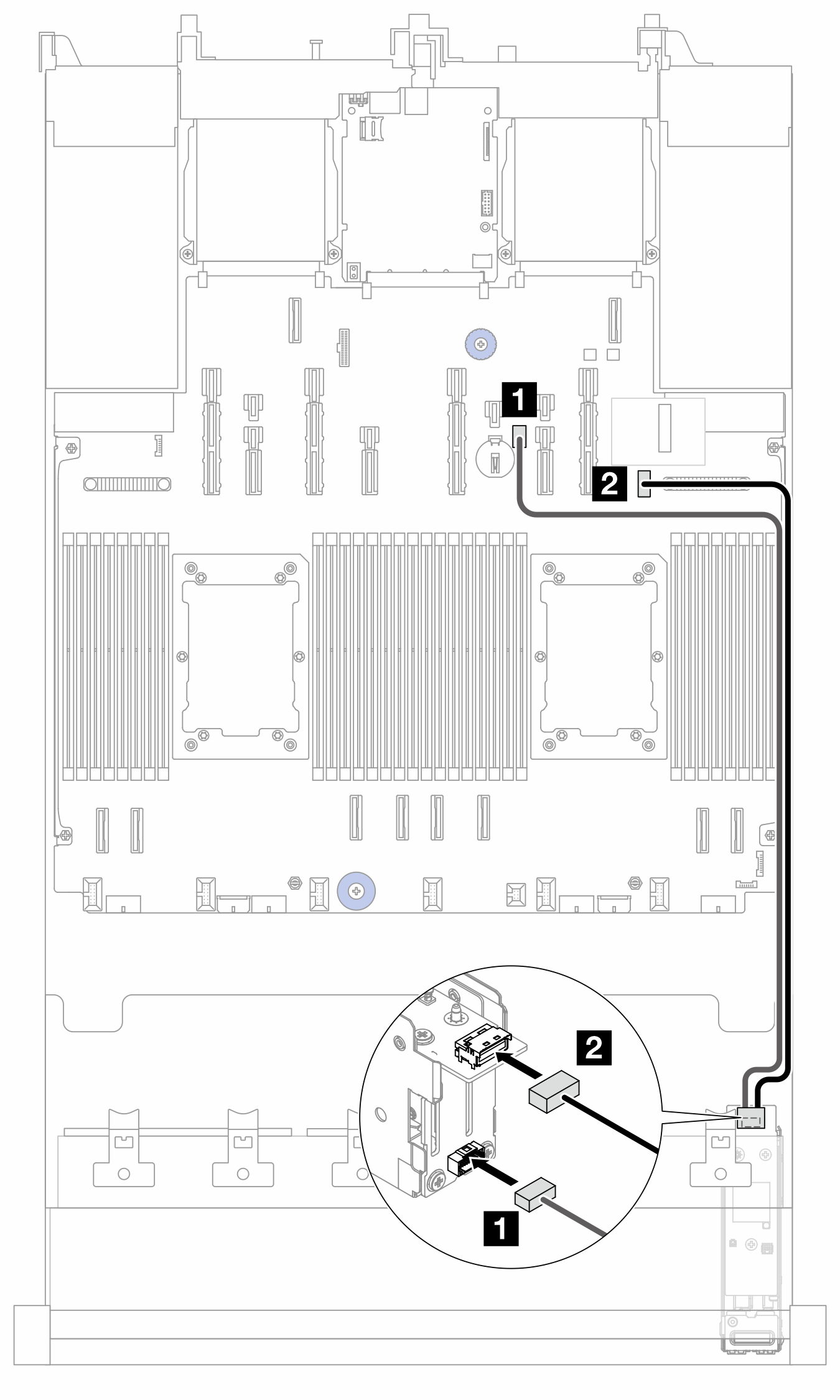

Abbildung 1. Kabelführung für vordere M.2-Boot-Rückwandplatine und Controllerplatine


Von | Zu (Prozessorplatine) | Länge |
---|---|---|
1 M.2-Boot-Rückwandplatine | 1 M.2-Netzteilanschluss | 700 mm |
2 M.2-Controllerplatine | 2 Signalanschluss für M.2-Rückwandplatine | 650 mm |
