E3.S 背板线缆布放
请参阅本节了解 E3.S 背板的线缆布放。
请确保使用相应的线缆导轨和线缆夹正确布放所有线缆。

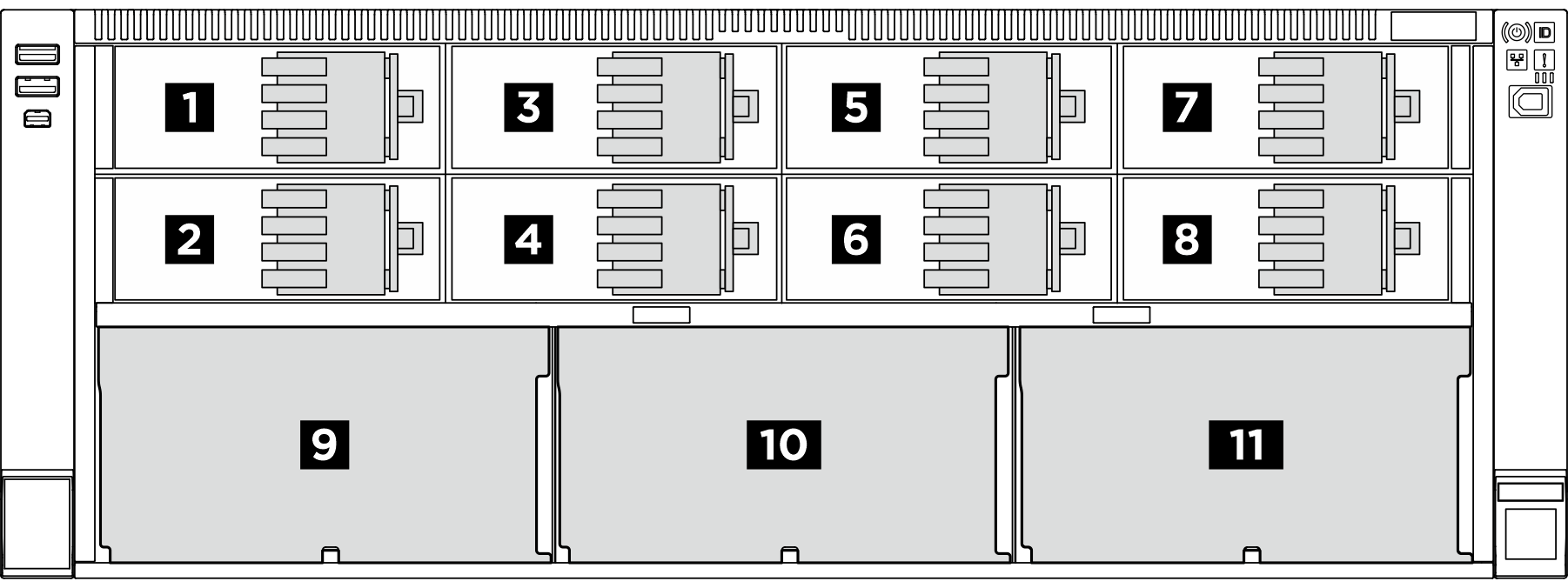

背板编号
| 硬盘背板 | E3.S 1T 插槽 | E3.S 2T 插槽 | 2.5 英寸 SAS/SATA 插槽 |
|---|---|---|---|
| 1 背板 1 | 0 到 3 | 1, 3 | |
| 2 背板 2 | 4 到 7 | 5, 7 | |
| 3 背板 3 | 8 到 11 | 9, 11 | |
| 4 背板 4 | 12 到 15 | 13, 15 | |
| 5 背板 5 | 16 到 19 | 17, 19 | |
| 6 背板 6 | 20 到 23 | 21, 23 | |
| 7 背板 7 | 24 到 27 | 25, 27 | |
| 8 背板 8 | 28 到 31 | 29, 31 | |
| 9 背板 9 | 32 到 39 | ||
| 10 背板 10 | 40 到 47 | ||
| 11 背板 11 | 48 到 55 |
E3.S 1T 插槽支持 E3.S 1T 硬盘。
E3.S 2T 插槽支持 CXL 内存条（CMM）。
| 背板类型 | 背板安装优先顺序 |
|---|---|
| 提供 E3.S 1T 插槽的 E3.S 背板 | 1+2, 1+2+3+4, 1+2+3+4+5+6, 1+2+3+4+5+6+7+8 |
| 提供 E3.S 2T 插槽的 E3.S 背板 | 1+2+3+4+5+6+7+8 |
| 2.5 英寸 SAS/SATA 8 插槽硬盘背板 | 9, 10, 11 |
电源线布放

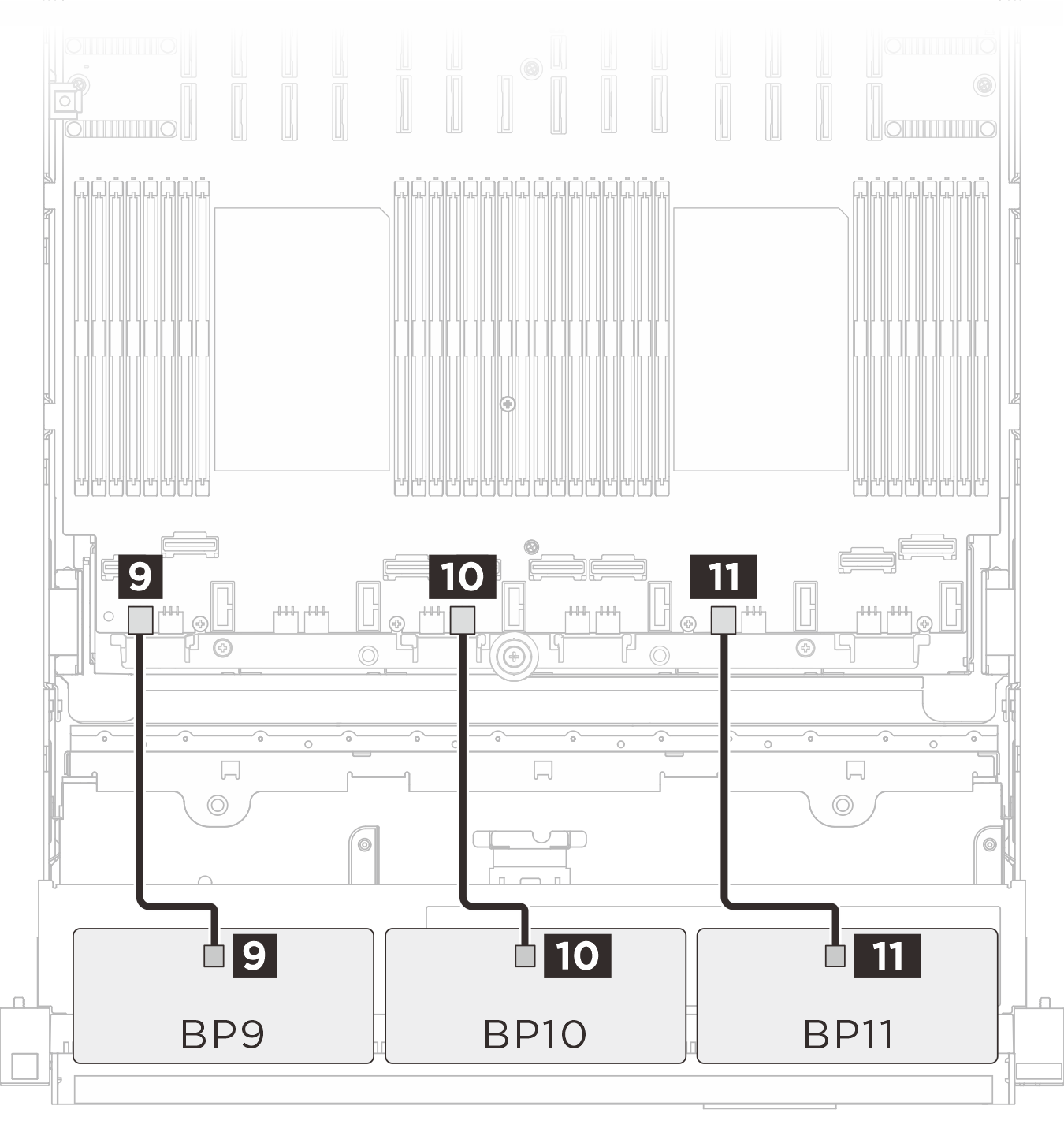

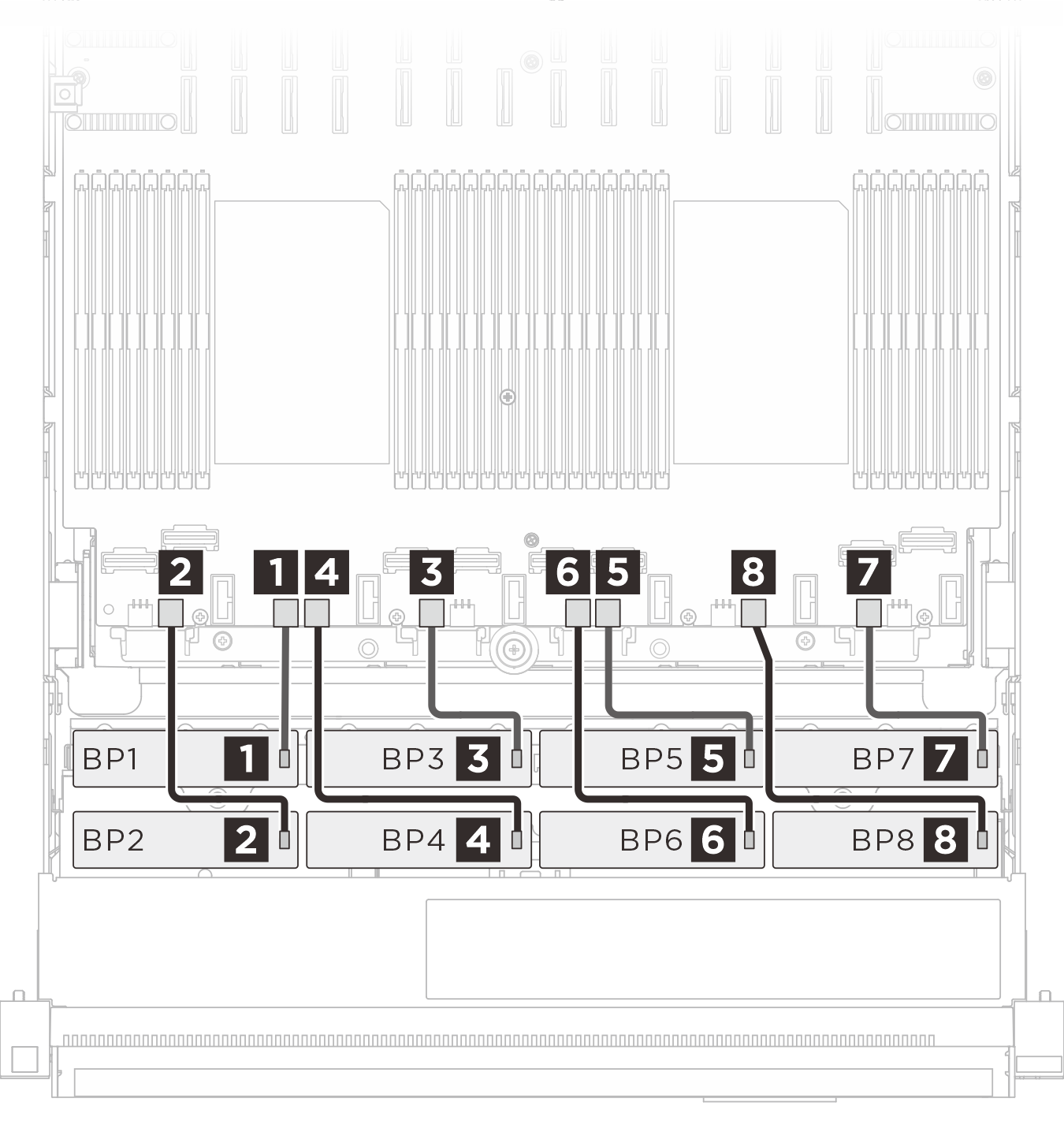

| E3.S 背板电源线布放 | SAS/SATA 背板电源线布放 |
|---|---|
 |  |
| 线缆 | 从（背板） | 到（主板组合件） |
|---|---|---|
| MPIC 6p+6s to MPIC 6p+6s (230 mm) | 1 BP 1: PWR | 1 BP 3 PWR |
| MPIC 6p+6s to MPIC 6p+6s (230 mm) | 2 BP 2: PWR | 2 BP 2 PWR |
| MPIC 6p+6s to MPIC 6p+6s (230 mm) | 3 BP 3: PWR | 3 BP 5 PWR |
| MPIC 6p+6s to MPIC 6p+6s (230 mm) | 4 BP 4: PWR | 4 BP 4 PWR |
| MPIC 6p+6s to MPIC 6p+6s (230 mm) | 5 BP 5: PWR | 5 BP 8 PWR |
| MPIC 6p+6s to MPIC 6p+6s (230 mm) | 6 BP 6: PWR | 6 BP 7 PWR |
| MPIC 6p+6s to MPIC 6p+6s (230 mm) | 7 BP 7: PWR | 7 BP 11: PWR |
| MPIC 6p+6s to MPIC 6p+6s (230 mm) | 8 BP 8: PWR | 8 BP 10: PWR |
| MPIC 6p+6s to MPIC 6p+6s (150 mm) | 9 BP 9: PWR | 9 BP 1: PWR |
| MPIC 6p+6s to MPIC 6p+6s (150 mm) | 10 BP 10: PWR | 10 BP 6: PWR |
| MPIC 6p+6s to MPIC 6p+6s (150 mm) | 11 BP 11: PWR | 11 BP 9: PWR |
E3.S 1T 信号线缆布放

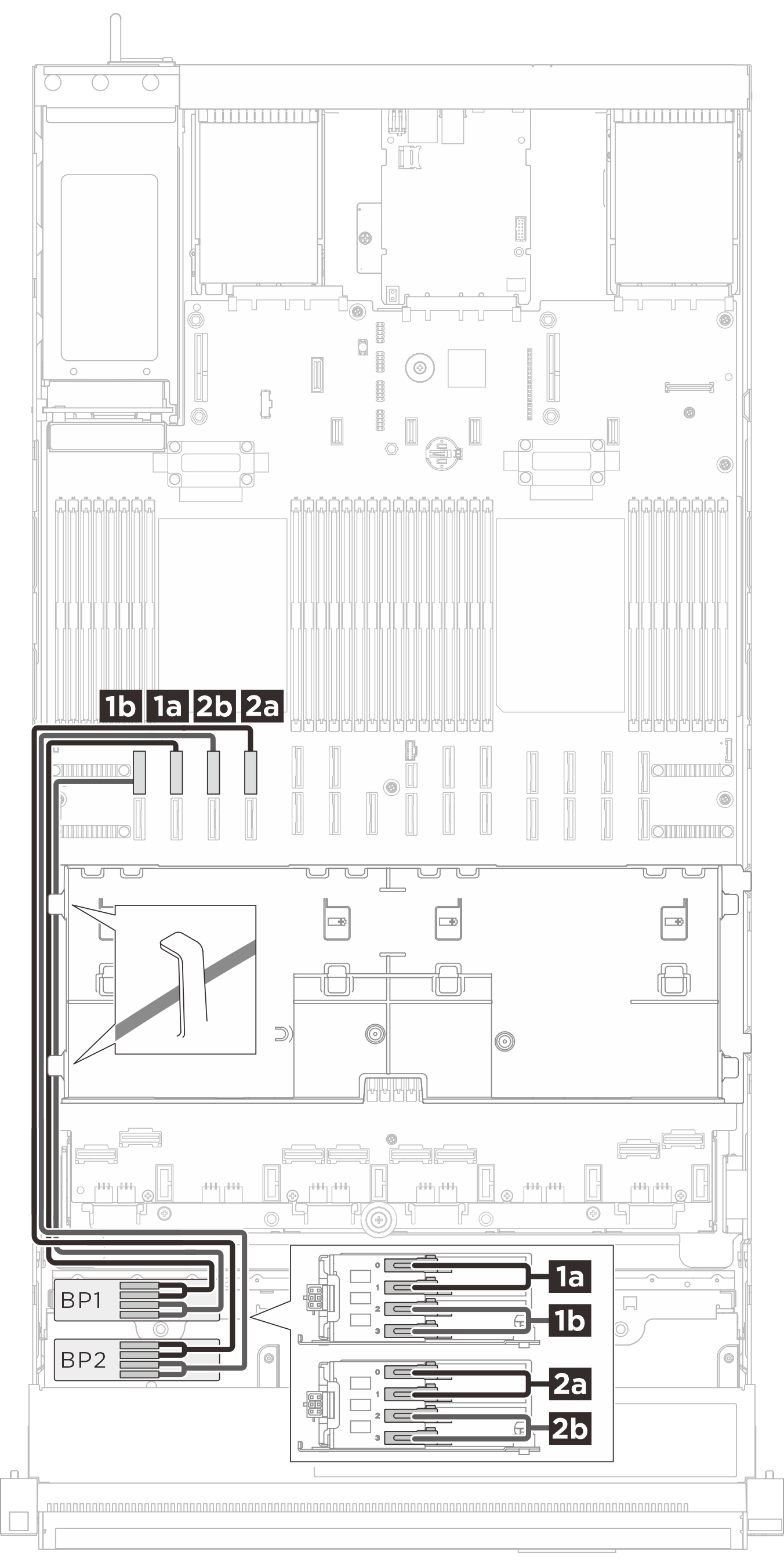

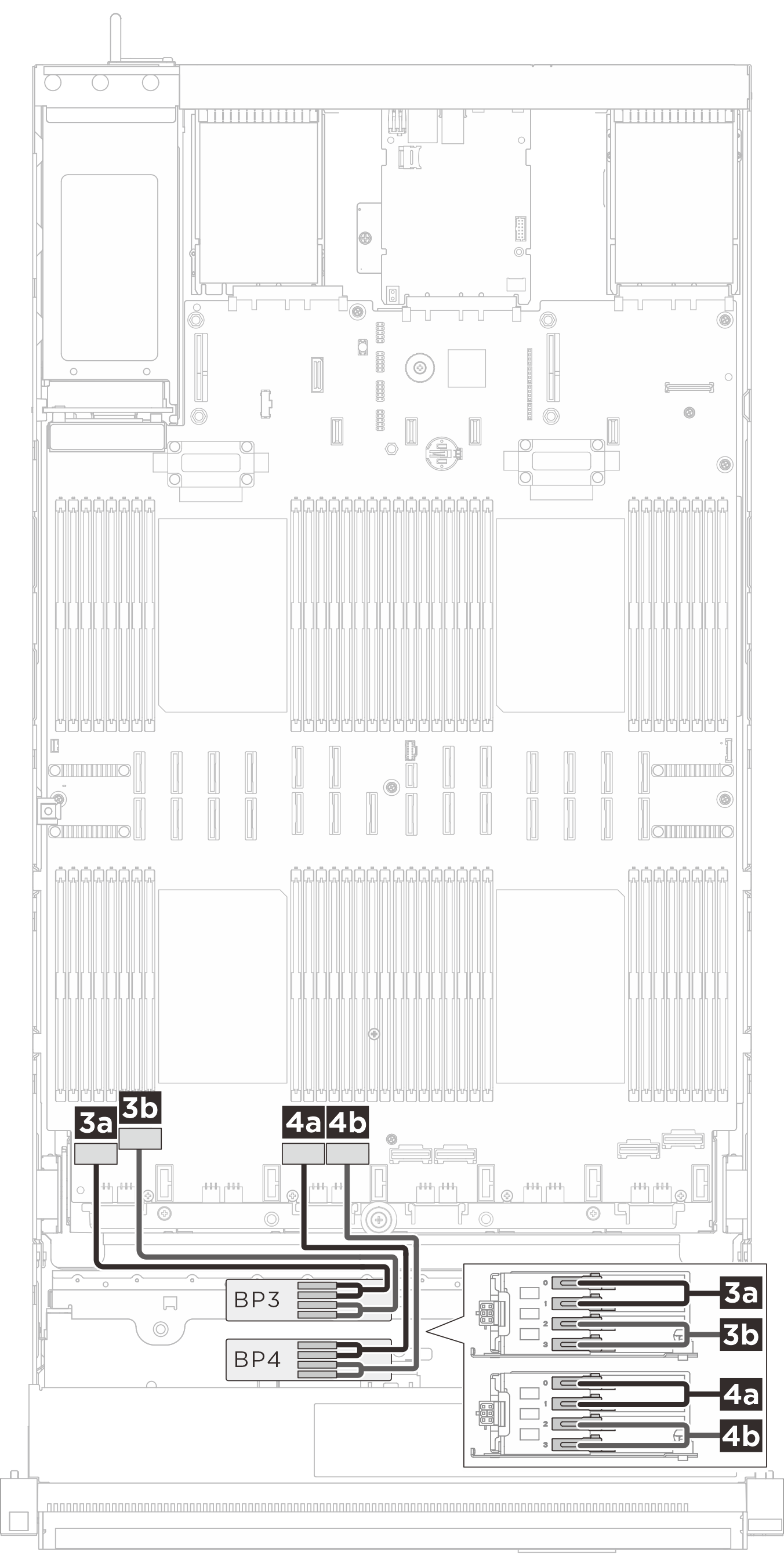

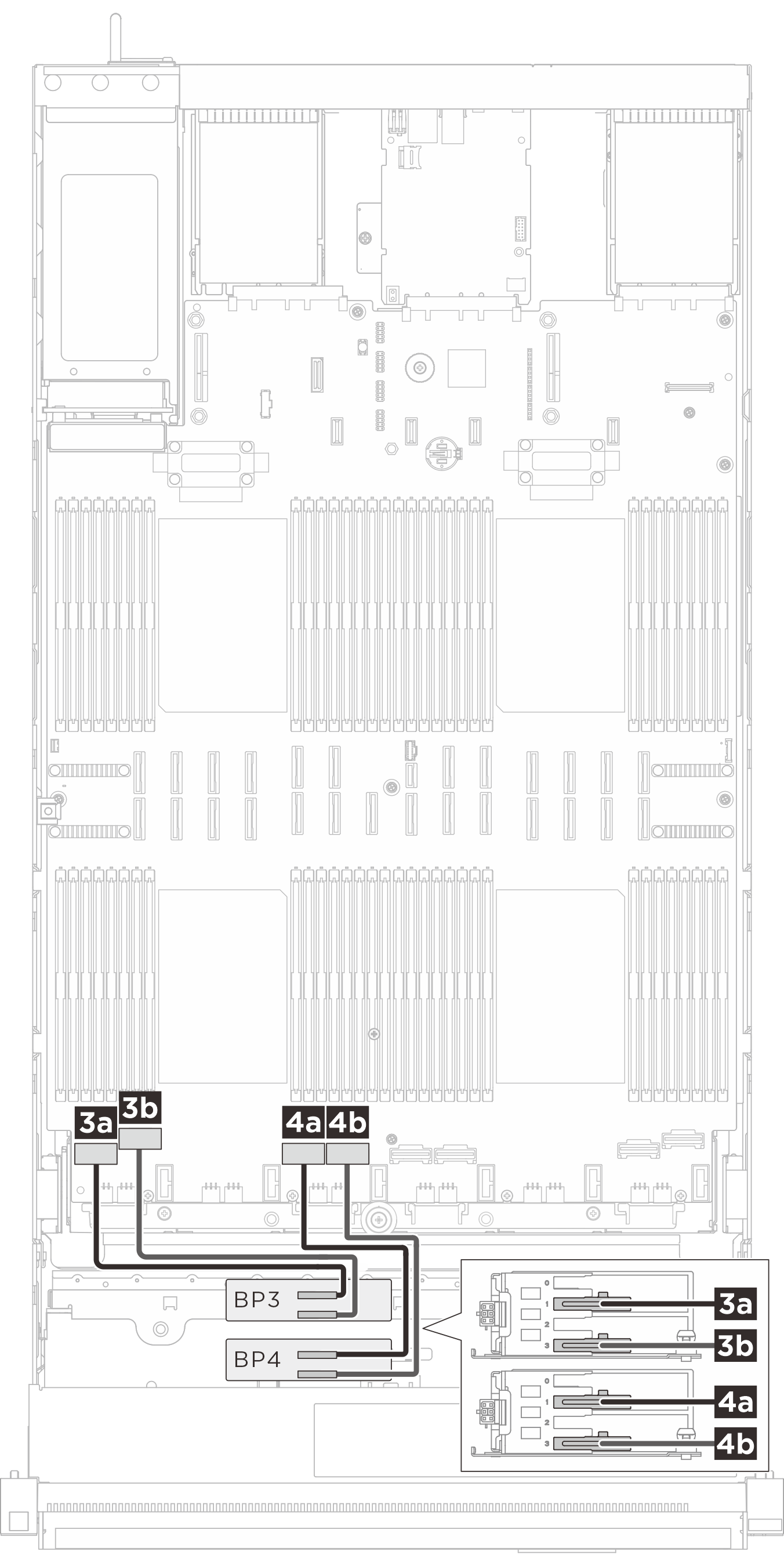

| BP1/BP2 信号线缆布放 | BP3/BP4 信号线缆布放 |
|---|---|
 |  |
| 线缆 | 从（背板） | 到（主板组合件） |
|---|---|---|
| MCIO x8 to Gen-Z 1C*2 (560 mm) | 1a BP1: Bay 0, Bay 1 | 1a NVMe 10 |
| MCIO x8 to Gen-Z 1C*2 (560 mm) | 1b BP1: Bay 2, Bay 3 | 1b NVMe 9 |
| MCIO x8 to Gen-Z 1C*2 (560 mm) | 2a BP2: Bay 0, Bay 1 | 2a NVMe 14 |
| MCIO x8 to Gen-Z 1C*2 (560 mm) | 2b BP2: Bay 2, Bay 3 | 2b NVMe 13 |
| Swift x8 to Gen-Z 1C*2 (330 mm) | 3a BP3: Bay 0, Bay 1 | 3a NVMe 1 |
| Swift x8 to Gen-Z 1C*2 (330 mm) | 3b BP3: Bay 2, Bay 3 | 3b NVMe 2 |
| Swift x8 to Gen-Z 1C*2 (330 mm) | 4a BP 4: Bay 0, Bay 1 | 4a NVMe 3 |
| Swift x8 to Gen-Z 1C*2 (330 mm) | 4b BP 4: Bay 2, Bay 3 | 4b NVMe 4 |

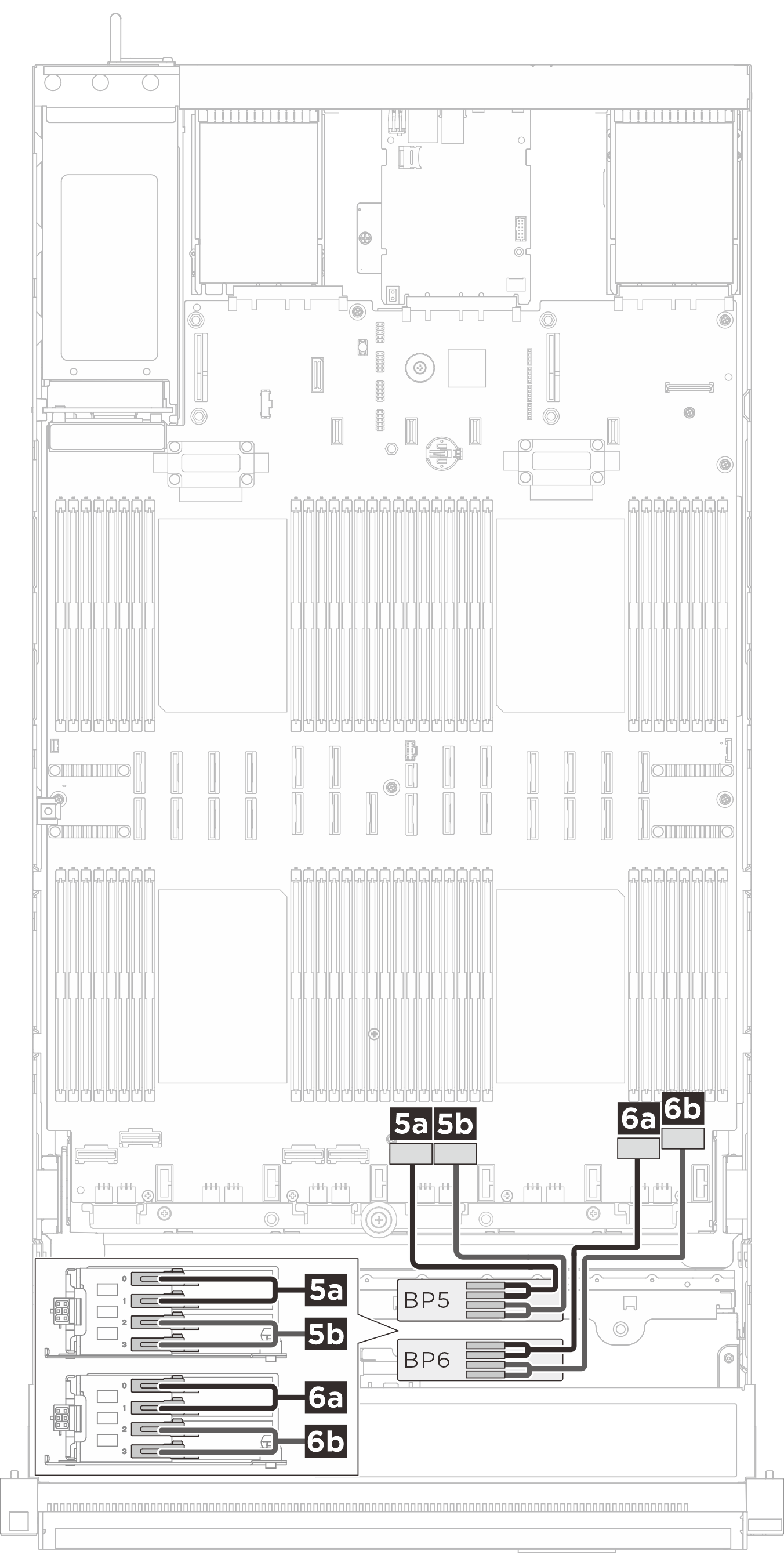

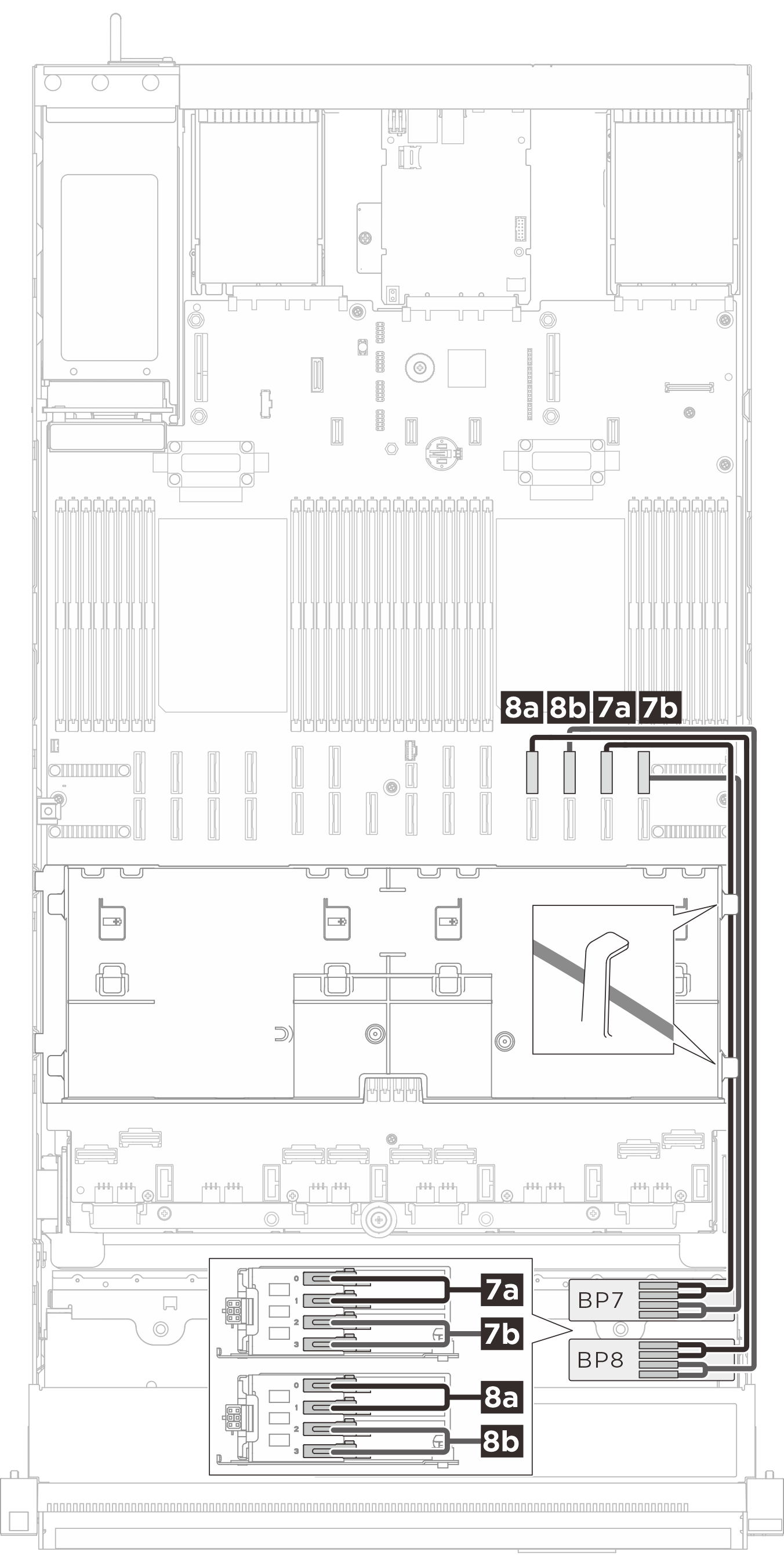

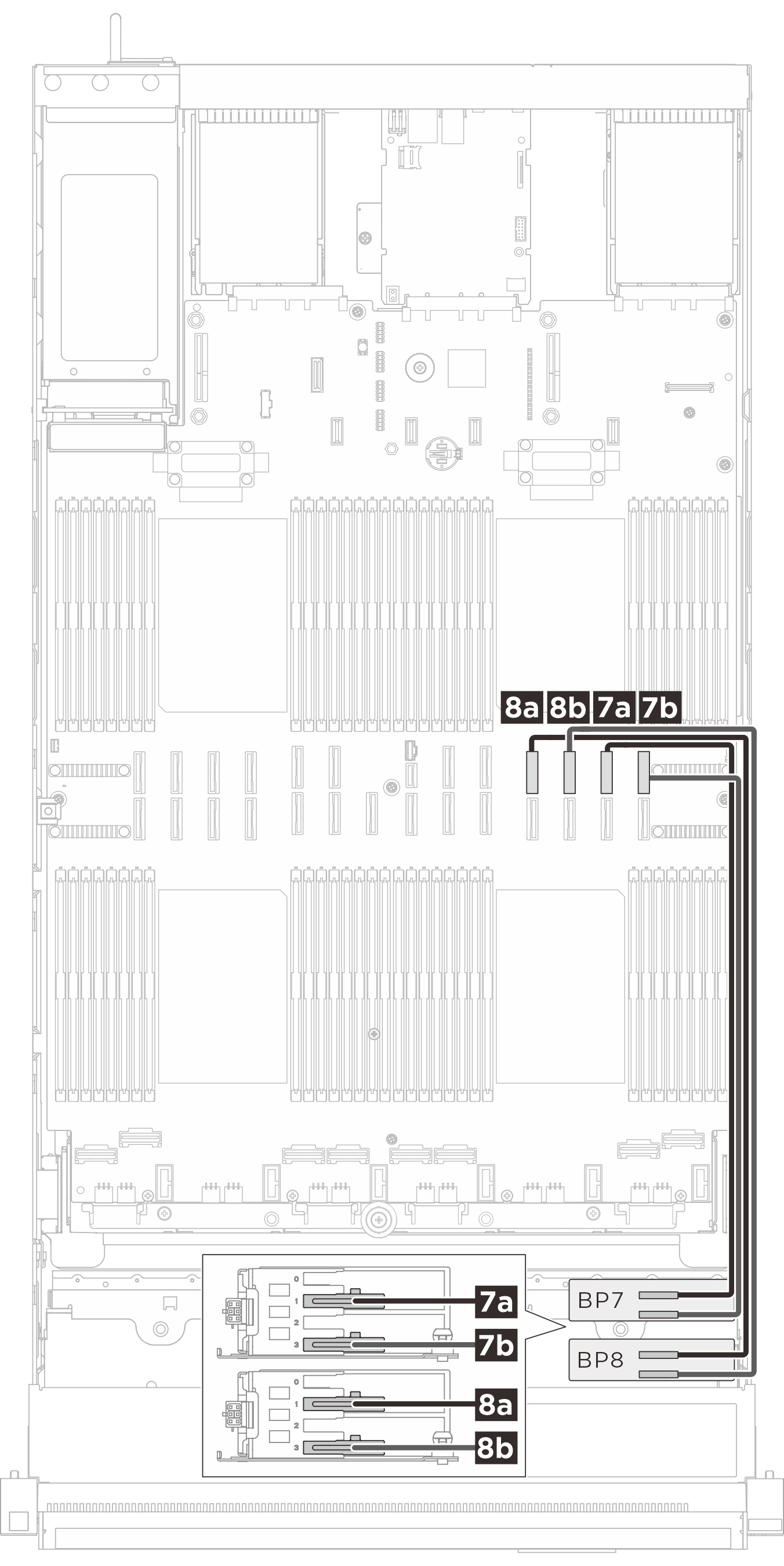

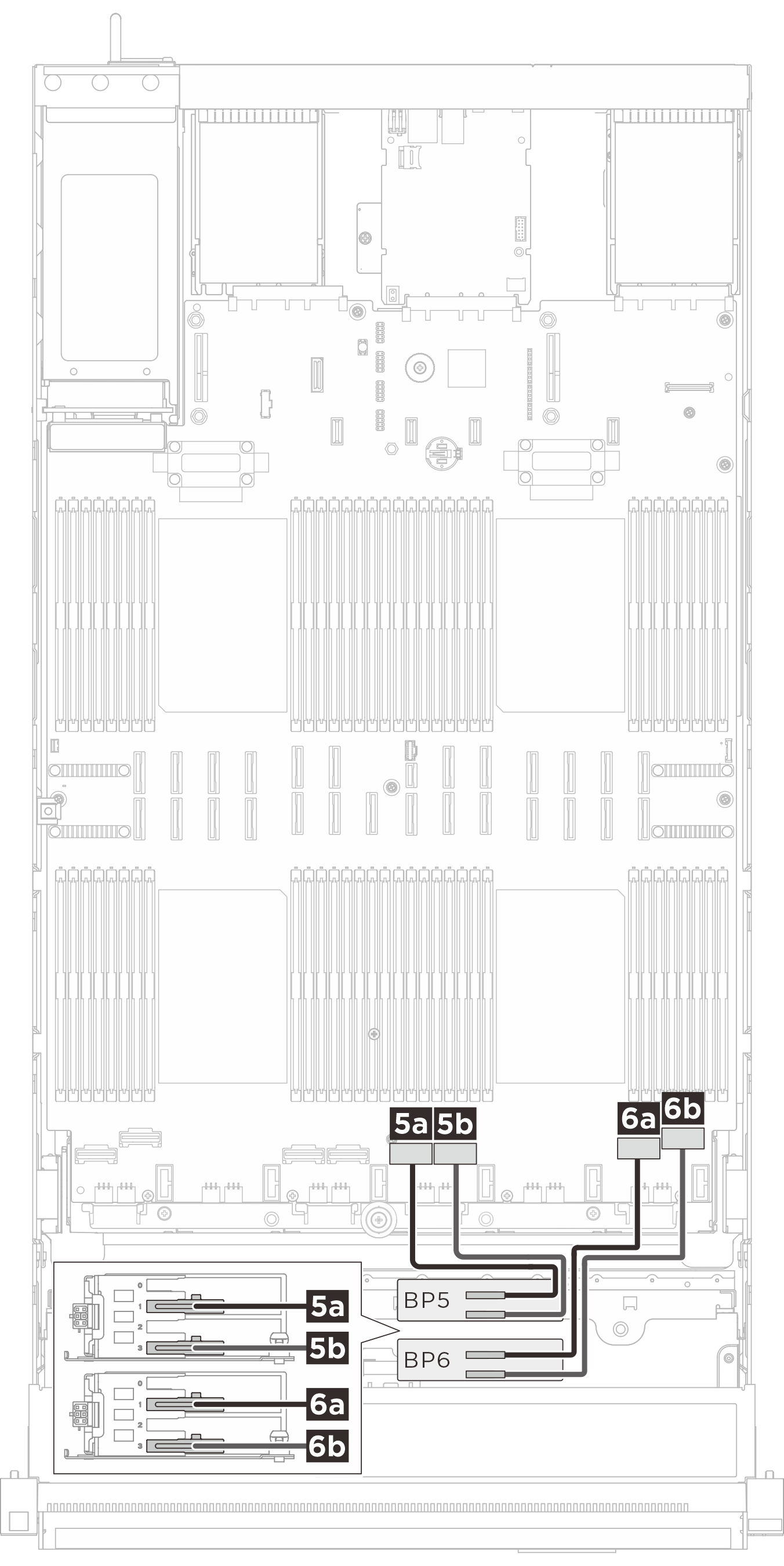

| BP5/BP6 信号线缆布放 | BP7/BP8 信号线缆布放 |
|---|---|
 |  |
| 线缆 | 从（背板） | 到（主板组合件） |
|---|---|---|
| Swift x8 to Gen-Z 1C*2 (330 mm) | 5a BP 5: Bay 0, Bay 1 | 5a NVMe 5 |
| Swift x8 to Gen-Z 1C*2 (330 mm) | 5b BP 5: Bay 2, Bay 3 | 5b NVMe 6 |
| Swift x8 to Gen-Z 1C*2 (330 mm) | 6a BP 6: Bay 0, Bay 1 | 6a NVMe 7 |
| Swift x8 to Gen-Z 1C*2 (330 mm) | 6b BP 6: Bay 2, Bay 3 | 6b NVMe 8 |
| MCIO x8 to Gen-Z 1C*2 (560 mm) | 7a BP 7: Bay 0, Bay 1 | 7a NVMe 11 |
| MCIO x8 to Gen-Z 1C*2 (560 mm) | 7b BP 7: Bay 2, Bay 3 | 7b NVMe 12 |
| MCIO x8 to Gen-Z 1C*2 (560 mm) | 8a BP 8: Bay 0, Bay 1 | 8a NVMe 15 |
| MCIO x8 to Gen-Z 1C*2 (560 mm) | 8b BP 8: Bay 2, Bay 3 | 8b NVMe 16 |
E3.S 2T 信号线缆布放

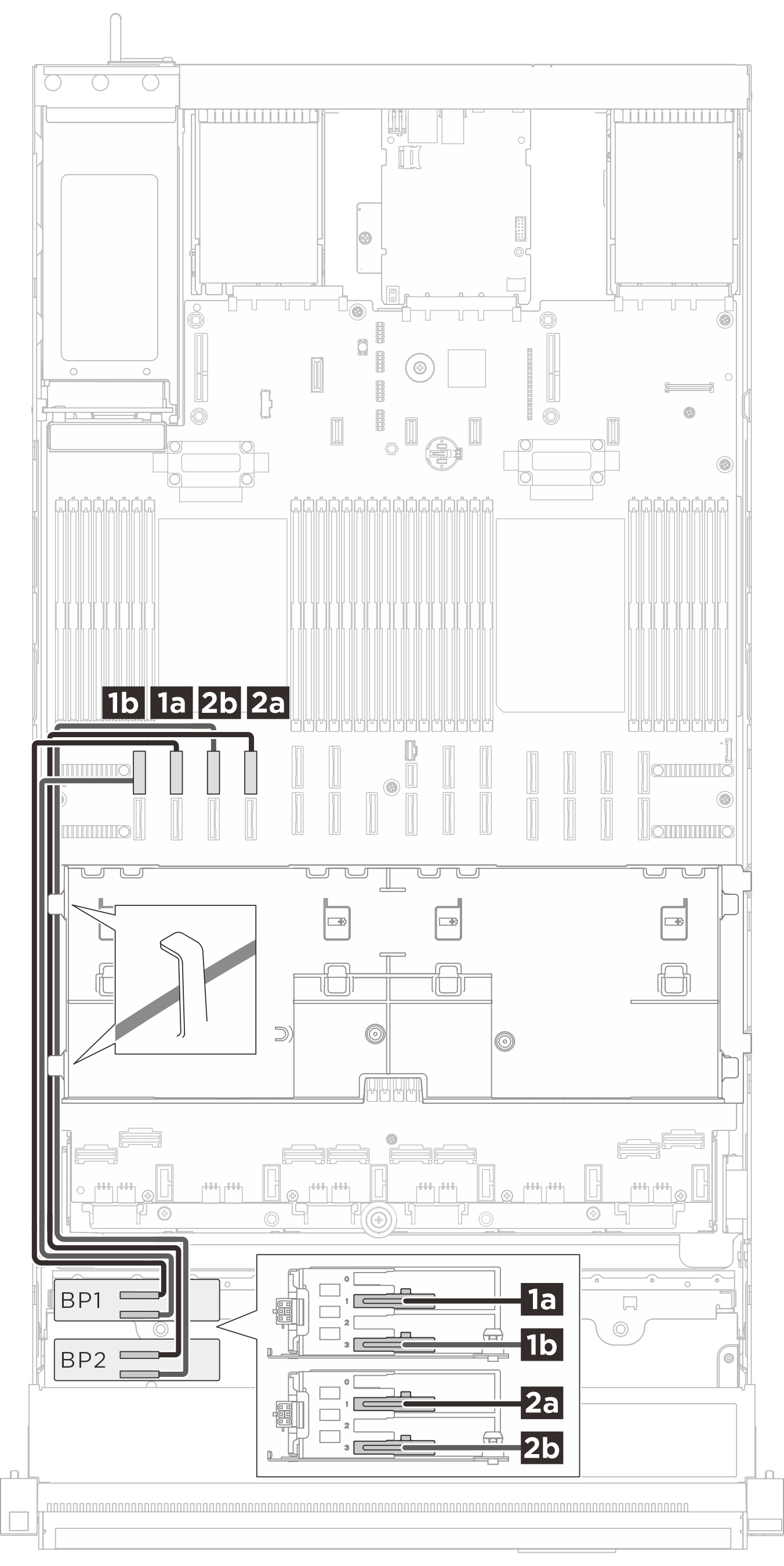

| BP1/BP2 信号线缆布放 | BP3/BP4 信号线缆布放 |
|---|---|
 |  |
| 线缆 | 从（背板） | 到（主板组合件） |
|---|---|---|
| MCIO x8 to Gen-Z 2C (560 mm) | 1a BP 1: Bay 1 | 1a NVMe 10 |
| MCIO x8 to Gen-Z 2C (560 mm) | 1b BP1: Bay 3 | 1b NVMe 9 |
| MCIO x8 to Gen-Z 2C (560 mm) | 2a BP2: Bay 1 | 2a NVMe 14 |
| MCIO x8 to Gen-Z 2C (560 mm) | 2b BP2: Bay 3 | 2b NVMe 13 |
| Swift x8 to Gen-Z 2C (330 mm) | 3a BP3: Bay 1 | 3a NVMe 1 |
| Swift x8 to Gen-Z 2C (330 mm) | 3b BP3: Bay 3 | 3b NVMe 2 |
| Swift x8 to Gen-Z 2C (330 mm) | 4a BP 4: Bay 1 | 4a NVMe 3 |
| Swift x8 to Gen-Z 2C (330 mm) | 4b BP 4: Bay 3 | 4b NVMe 4 |
| BP5/BP6 信号线缆布放 | BP7/BP8 信号线缆布放 |
|---|---|
 |  |
| 线缆 | 从（背板） | 到（主板组合件） |
|---|---|---|
| Swift x8 to Gen-Z 2C (330 mm) | 5a BP 5: Bay 1 | 5a NVMe 5 |
| Swift x8 to Gen-Z 2C (330 mm) | 5b BP 5: Bay 3 | 5b NVMe 6 |
| Swift x8 to Gen-Z 2C (330 mm) | 6a BP 6: Bay 1 | 6a NVMe 7 |
| Swift x8 to Gen-Z 2C (330 mm) | 6b BP 6: Bay 3 | 6b NVMe 8 |
| MCIO x8 to Gen-Z 2C (560 mm) | 7a BP 7: Bay 1 | 7a NVMe 11 |
| MCIO x8 to Gen-Z 2C (560 mm) | 7b BP 7: Bay 3 | 7b NVMe 12 |
| MCIO x8 to Gen-Z 2C (560 mm) | 8a BP 8: Bay 1 | 8a NVMe 15 |
| MCIO x8 to Gen-Z 2C (560 mm) | 8b BP 8: Bay 3 | 8b NVMe 16 |
SAS/SATA 背板信号线缆布放
Gen 4 RAID/HBA 适配器：545-8i/940-8i/940-16i/440-16i
Gen 3 RAID/HBA 适配器：5350-8i/9350-8i/4350-16i
单背板：1 x RAID/HBA 8i
双背板：1 x RAID/HBA 16i
三背板：1 x RAID/HBA 8i + 1 x RAID/HBA 16i
根据您的配置，RAID/HBA 适配器将安装在不同的转接件上。根据 RAID/HBA 适配器的安装位置，请从下表中选择对应的线缆布放路径。

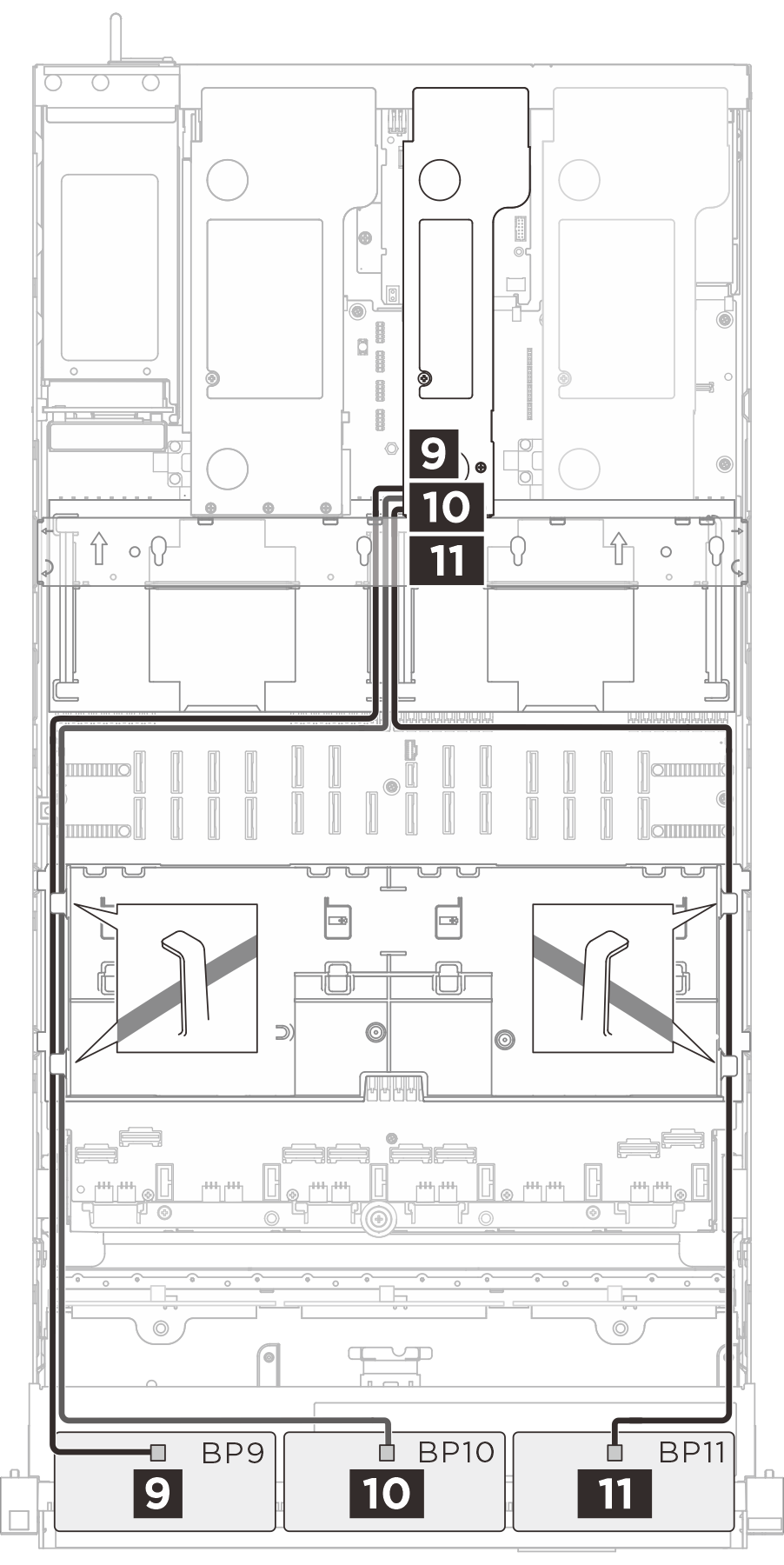

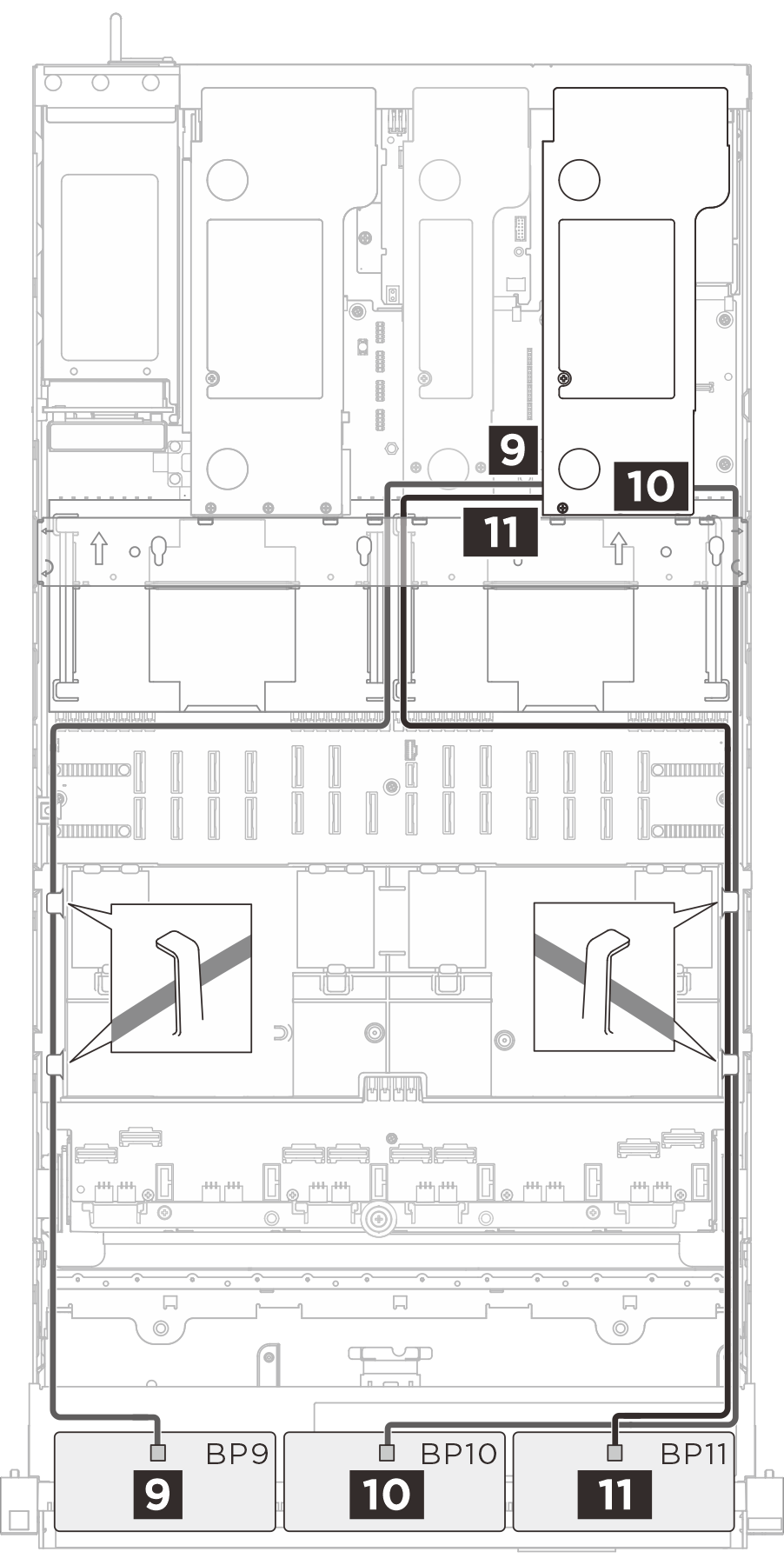

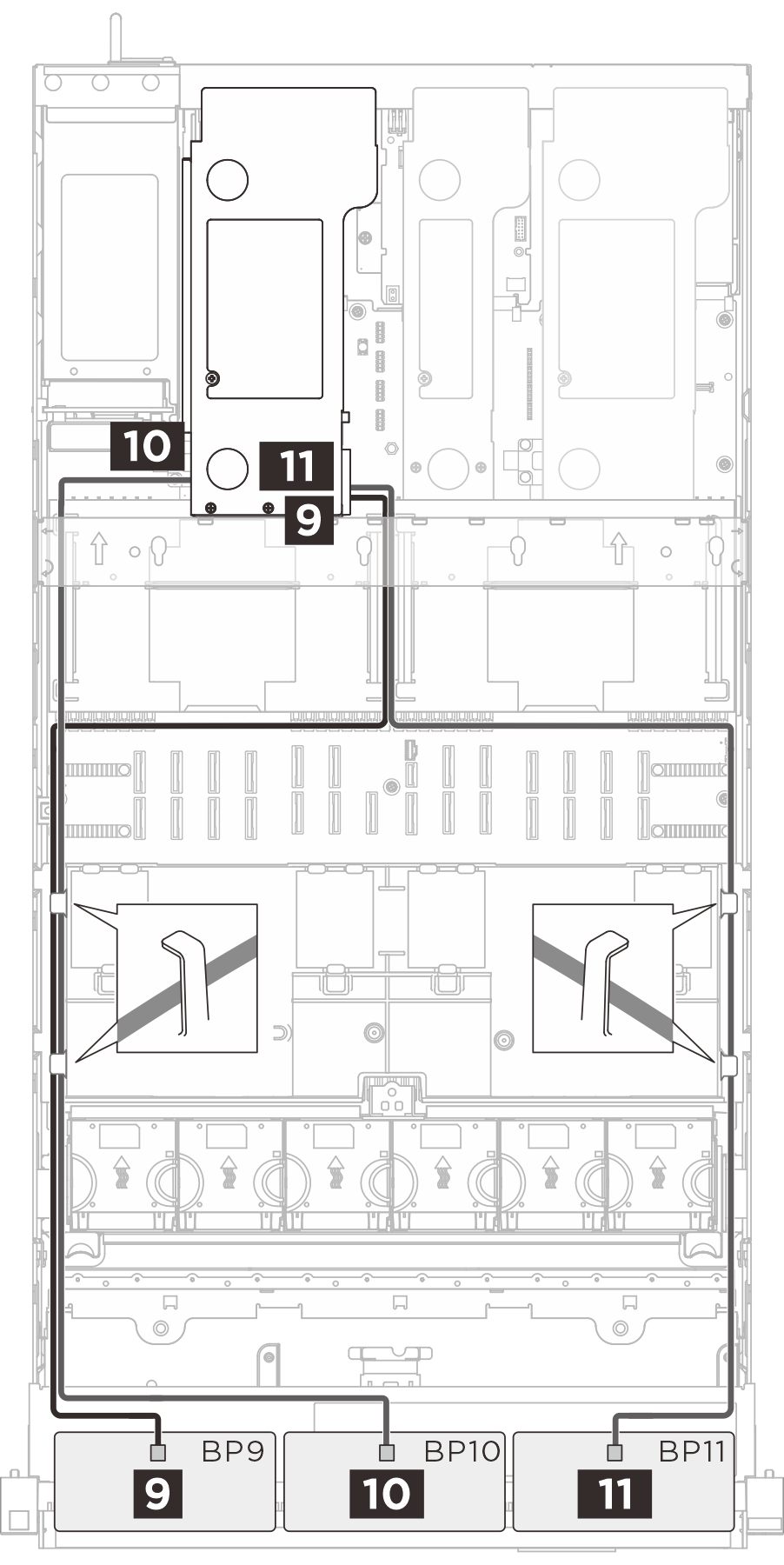

| 线缆布放到转接件 3 | 线缆布放到转接件 2 | 线缆布放到转接件 1 |
|---|---|---|
 |  |  |
| 线缆 | 从（背板） | 到（RAID/HBA 适配器） |
|---|---|---|
| 9 BP 9: SAS | 9
|
| 10 BP 10: SAS | 10
|
| 11 BP 11: SAS | 11
|
