Roteamento de cabos do backplane E3.S
Use a seção para entender o roteamento de cabos dos backplanes E3.S.
Ao direcionar os cabos, certifique-se de que todos os cabos sejam direcionados corretamente pelas guias e presilhas de cabos.

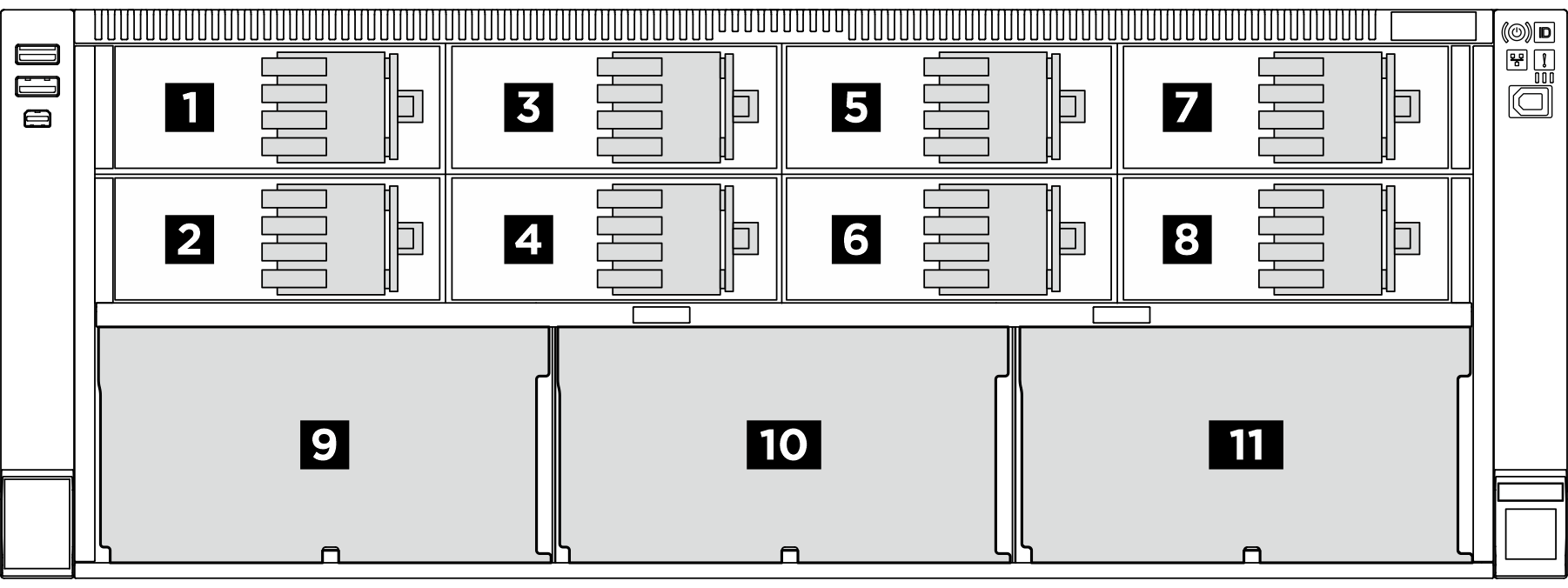

Numeração do backplane
| Backplane da unidade | Compartimento 1T E3.S | Compartimento 2T E3.S | Compartimento SAS/SATA de 2,5 polegadas |
|---|---|---|---|
| 1 Backplane 1 | 0 a 3 | 1, 3 | |
| 2 Backplane 2 | 4 a 7 | 5, 7 | |
| 3 Backplane 3 | 8 a 11 | 9, 11 | |
| 4 Backplane 4 | 12 a 15 | 13, 15 | |
| 5 Backplane 5 | 16 a 19 | 17, 19 | |
| 6 Backplane 6 | 20 a 23 | 21, 23 | |
| 7 Backplane 7 | 24 a 27 | 25, 27 | |
| 8 Backplane 8 | 28 a 31 | 29, 31 | |
| 9 Backplane 9 | 32 a 39 | ||
| 10 Backplane 10 | 40 a 47 | ||
| 11 Backplane 11 | 48 a 55 |
Os compartimentos 1T E3.S aceitam unidades 1T E3.S.
Os compartimentos 2T E3.S aceitam módulos de memória CXL (CMMs).
| Tipo de backplane | Prioridade de colocação do backplane |
|---|---|
| Backplane E3.S para compartimentos 1T E3.S | 1+2, 1+2+3+4, 1+2+3+4+5+6, 1+2+3+4+5+6+7+8 |
| Backplane E3.S para compartimentos 2T E3.S | 1+2+3+4+5+6+7+8 |
| Backplane para unidades de 8 compartimentos SAS/SATA de 2,5 polegadas | 9, 10, 11 |
Roteamento de cabos de energia

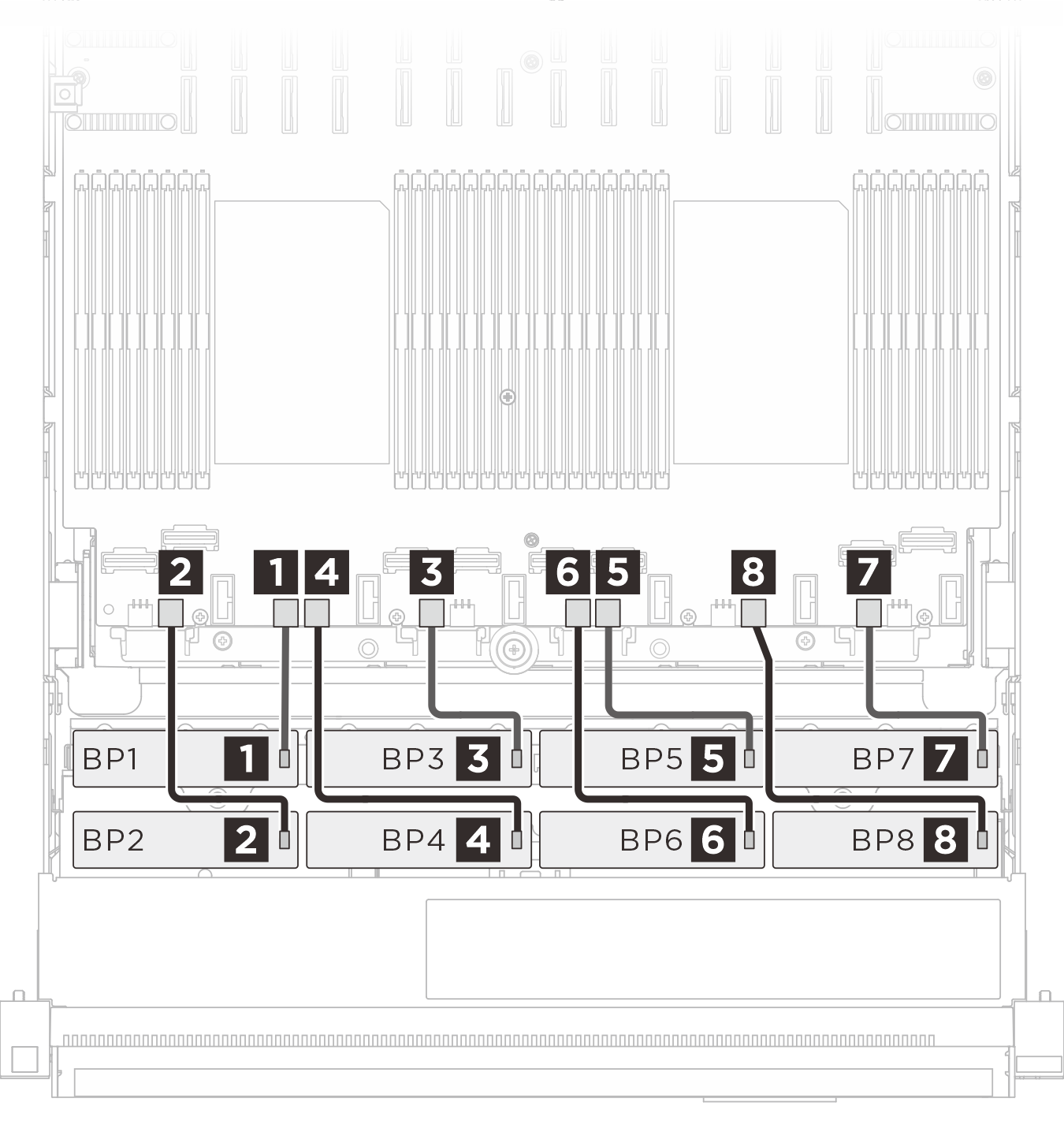

| Roteamento de cabos de alimentação do backplane E3.S | Roteamento de cabos de alimentação do backplane SAS/SATA |
|---|---|
 |  |
| Cabo | De (backplane) | Para (conjunto de placa-mãe) |
|---|---|---|
| MPIC 6p+6s to MPIC 6p+6s (230 mm) | 1 BP 1: PWR | 1 BP 3 PWR |
| MPIC 6p+6s to MPIC 6p+6s (230 mm) | 2 BP 2: PWR | 2 BP 2 PWR |
| MPIC 6p+6s to MPIC 6p+6s (230 mm) | 3 BP 3: PWR | 3 BP 5 PWR |
| MPIC 6p+6s to MPIC 6p+6s (230 mm) | 4 BP 4: PWR | 4 BP 4 PWR |
| MPIC 6p+6s to MPIC 6p+6s (230 mm) | 5 BP 5: PWR | 5 BP 8 PWR |
| MPIC 6p+6s to MPIC 6p+6s (230 mm) | 6 BP 6: PWR | 6 BP 7 PWR |
| MPIC 6p+6s to MPIC 6p+6s (230 mm) | 7 BP 7: PWR | 7 BP 11: PWR |
| MPIC 6p+6s to MPIC 6p+6s (230 mm) | 8 BP 8: PWR | 8 BP 10: PWR |
| MPIC 6p+6s to MPIC 6p+6s (150 mm) | 9 BP 9: PWR | 9 BP 1: PWR |
| MPIC 6p+6s to MPIC 6p+6s (150 mm) | 10 BP 10: PWR | 10 BP 6: PWR |
| MPIC 6p+6s to MPIC 6p+6s (150 mm) | 11 BP 11: PWR | 11 BP 9: PWR |
Roteamento de cabos de sinal 1T E3.S

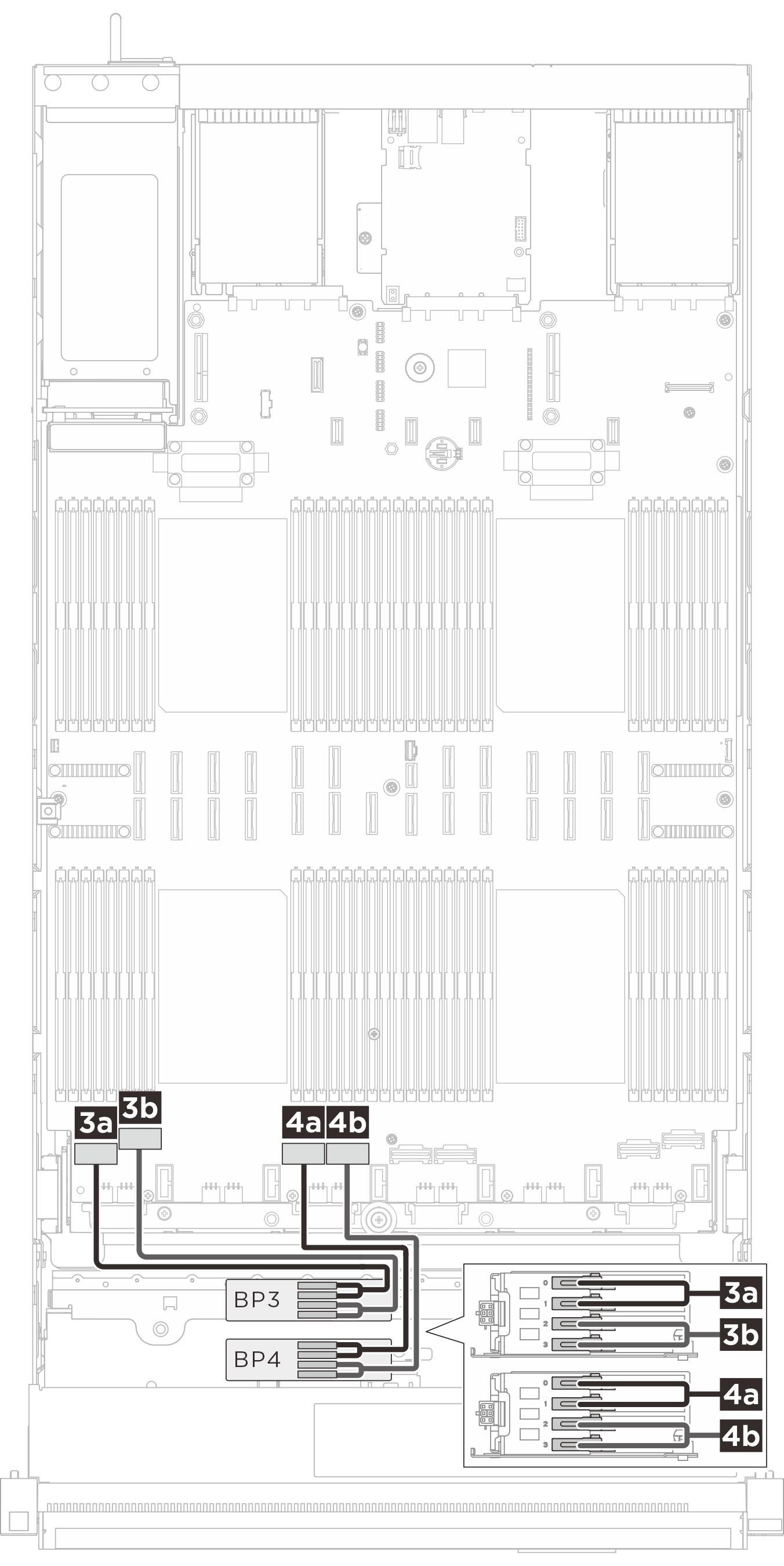

| Roteamento de cabos de sinal BP1/BP2 | Roteamento de cabos de sinal BP3/BP4 |
|---|---|
 |  |
| Cabo | De (backplane) | Para (conjunto de placa-mãe) |
|---|---|---|

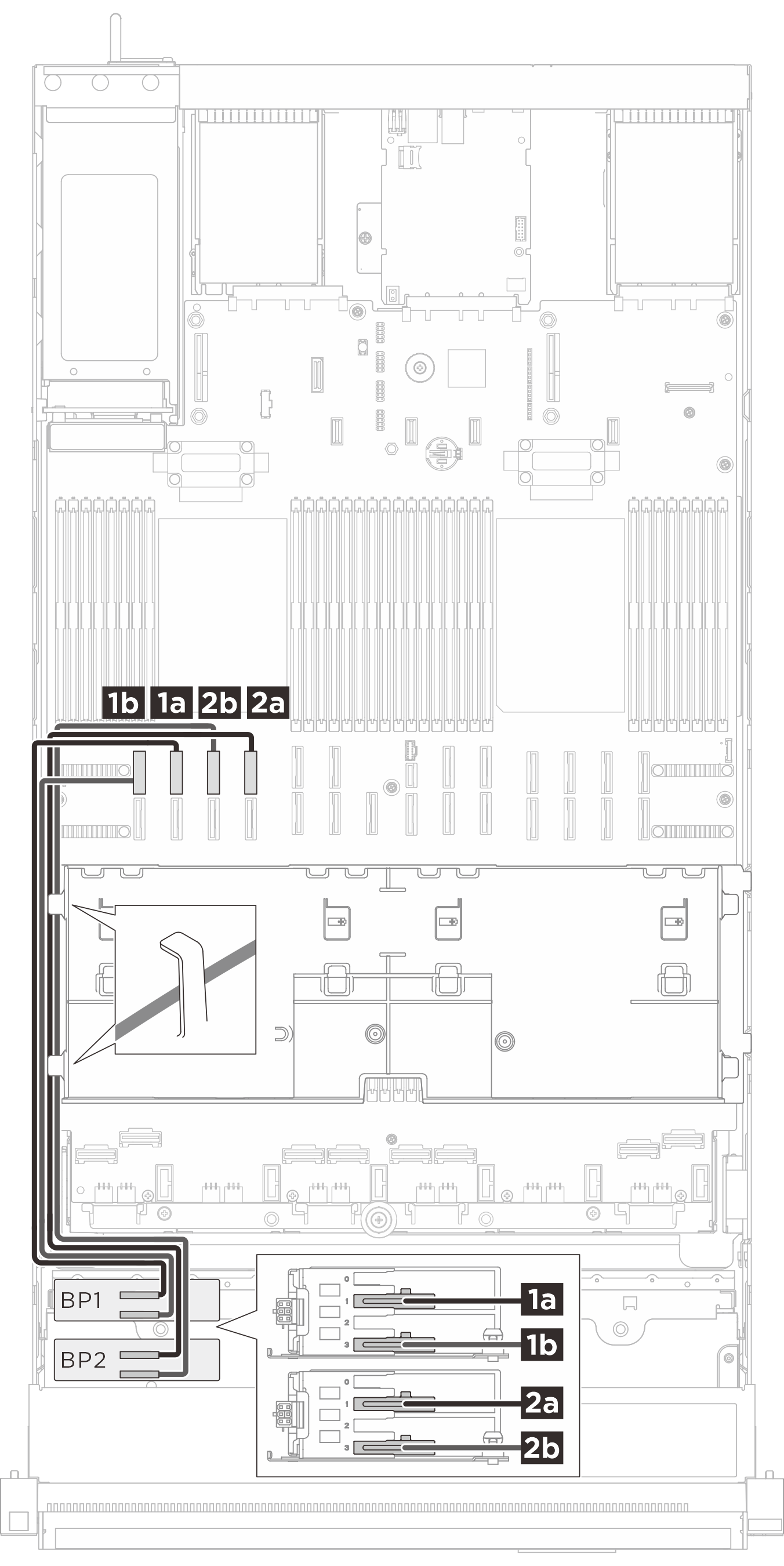

| MCIO x8 to Gen-Z 1C*2 (560 mm) | 1a BP1: Bay 0, Bay 1 | 1a NVMe 10 |
| MCIO x8 to Gen-Z 1C*2 (560 mm) | 1b BP1: Bay 2, Bay 3 | 1b NVMe 9 |
| MCIO x8 to Gen-Z 1C*2 (560 mm) | 2a BP2: Bay 0, Bay 1 | 2a NVMe 14 |
| MCIO x8 to Gen-Z 1C*2 (560 mm) | 2b BP2: Bay 2, Bay 3 | 2b NVMe 13 |

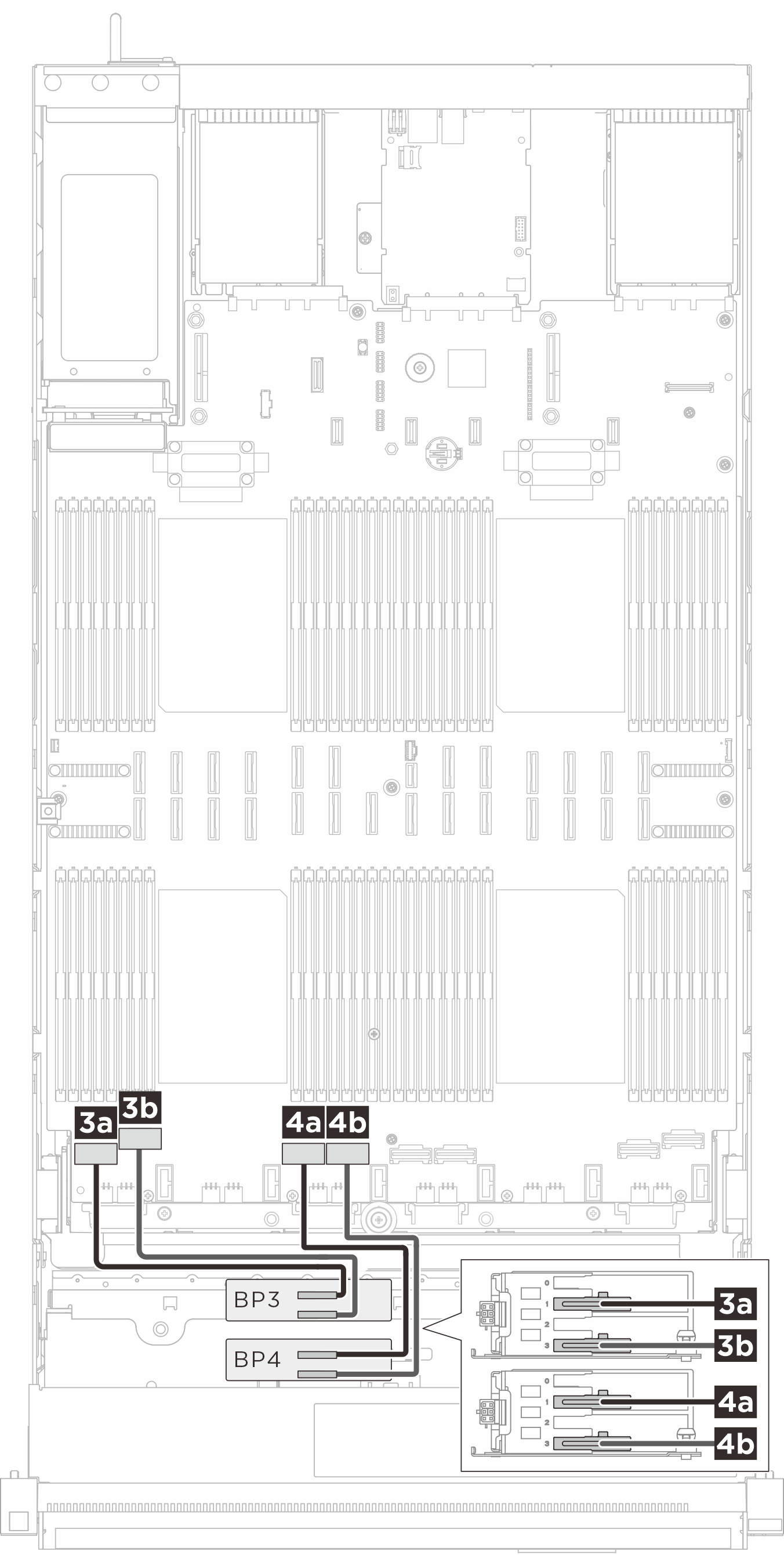

| Swift x8 to Gen-Z 1C*2 (330 mm) | 3a BP3: Bay 0, Bay 1 | 3a NVMe 1 |
| Swift x8 to Gen-Z 1C*2 (330 mm) | 3b BP3: Bay 2, Bay 3 | 3b NVMe 2 |
| Swift x8 to Gen-Z 1C*2 (330 mm) | 4a BP 4: Bay 0, Bay 1 | 4a NVMe 3 |
| Swift x8 to Gen-Z 1C*2 (330 mm) | 4b BP 4: Bay 2, Bay 3 | 4b NVMe 4 |

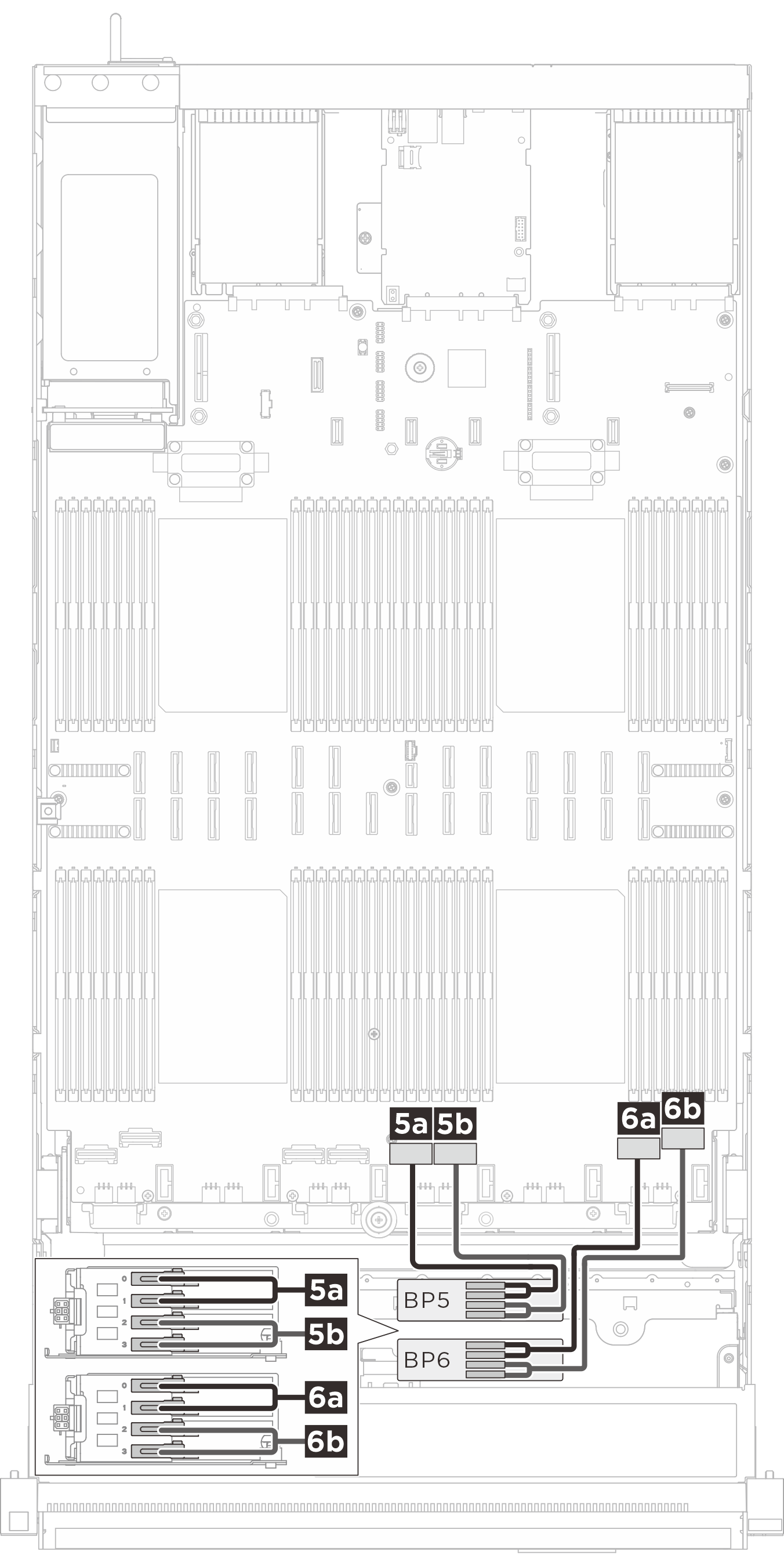

| Roteamento de cabos de sinal BP5/BP6 | Roteamento de cabos de sinal BP7/BP8 |
|---|---|
 |  |
| Cabo | De (backplane) | Para (conjunto de placa-mãe) |
|---|---|---|
| Swift x8 to Gen-Z 1C*2 (330 mm) | 5a BP 5: Bay 0, Bay 1 | 5a NVMe 5 |
| Swift x8 to Gen-Z 1C*2 (330 mm) | 5b BP 5: Bay 2, Bay 3 | 5b NVMe 6 |
| Swift x8 to Gen-Z 1C*2 (330 mm) | 6a BP 6: Bay 0, Bay 1 | 6a NVMe 7 |
| Swift x8 to Gen-Z 1C*2 (330 mm) | 6b BP 6: Bay 2, Bay 3 | 6b NVMe 8 |

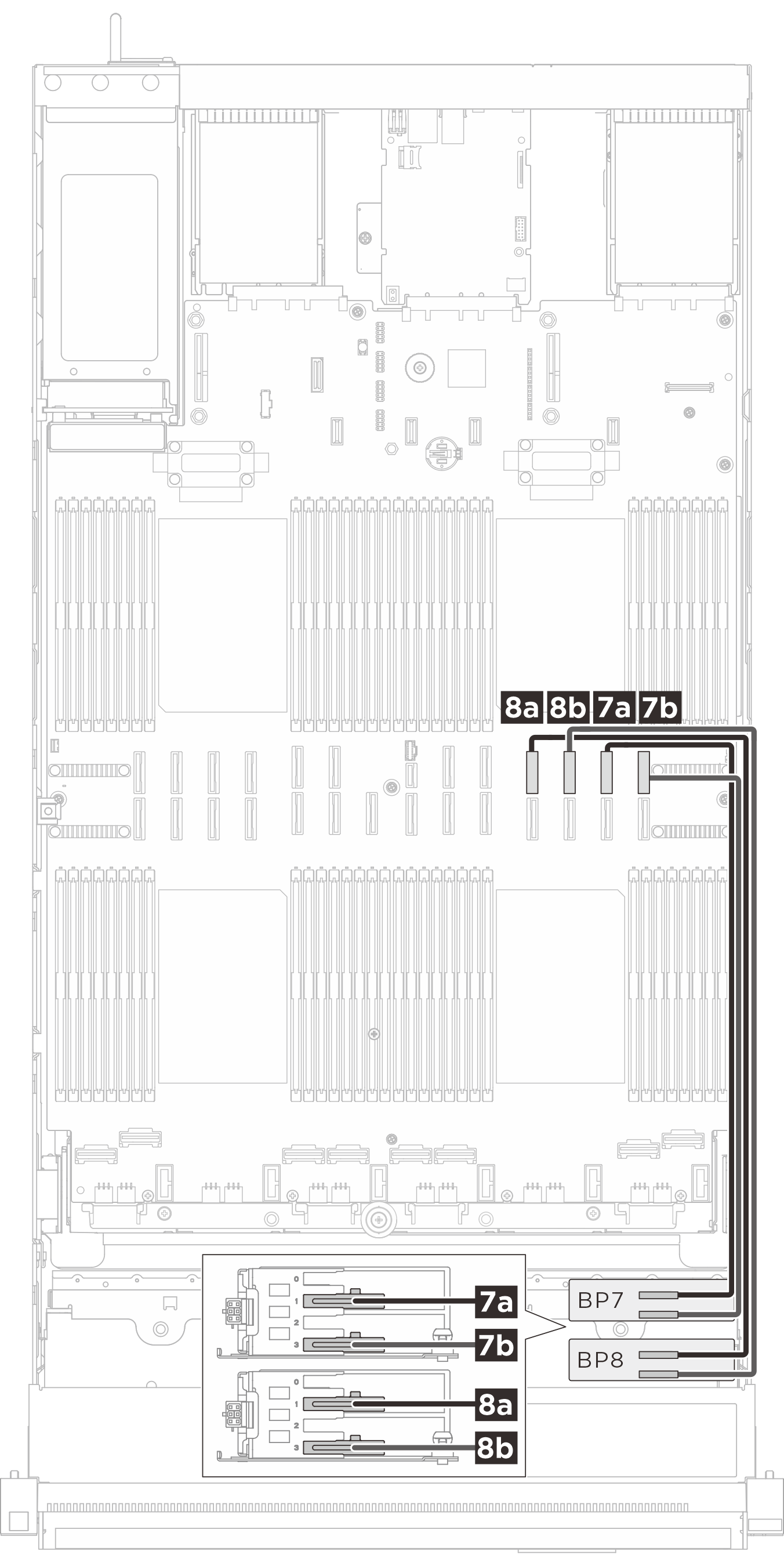

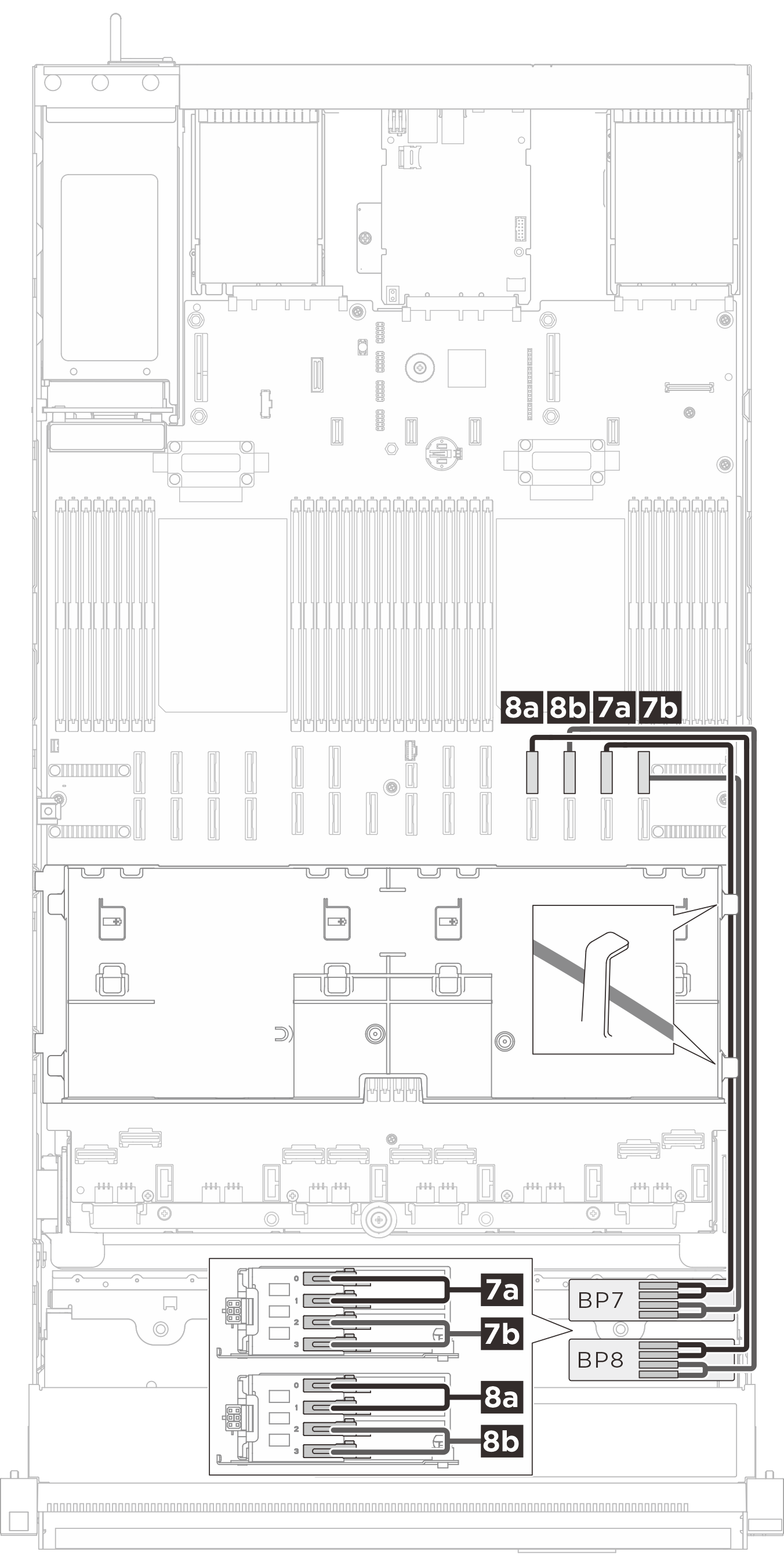

| MCIO x8 to Gen-Z 1C*2 (560 mm) | 7a BP 7: Bay 0, Bay 1 | 7a NVMe 11 |
| MCIO x8 to Gen-Z 1C*2 (560 mm) | 7b BP 7: Bay 2, Bay 3 | 7b NVMe 12 |
| MCIO x8 to Gen-Z 1C*2 (560 mm) | 8a BP 8: Bay 0, Bay 1 | 8a NVMe 15 |
| MCIO x8 to Gen-Z 1C*2 (560 mm) | 8b BP 8: Bay 2, Bay 3 | 8b NVMe 16 |
Roteamento de cabos de sinal 2T E3.S
| Roteamento de cabos de sinal BP1/BP2 | Roteamento de cabos de sinal BP3/BP4 |
|---|---|
 |  |
| Cabo | De (backplane) | Para (conjunto de placa-mãe) |
|---|---|---|

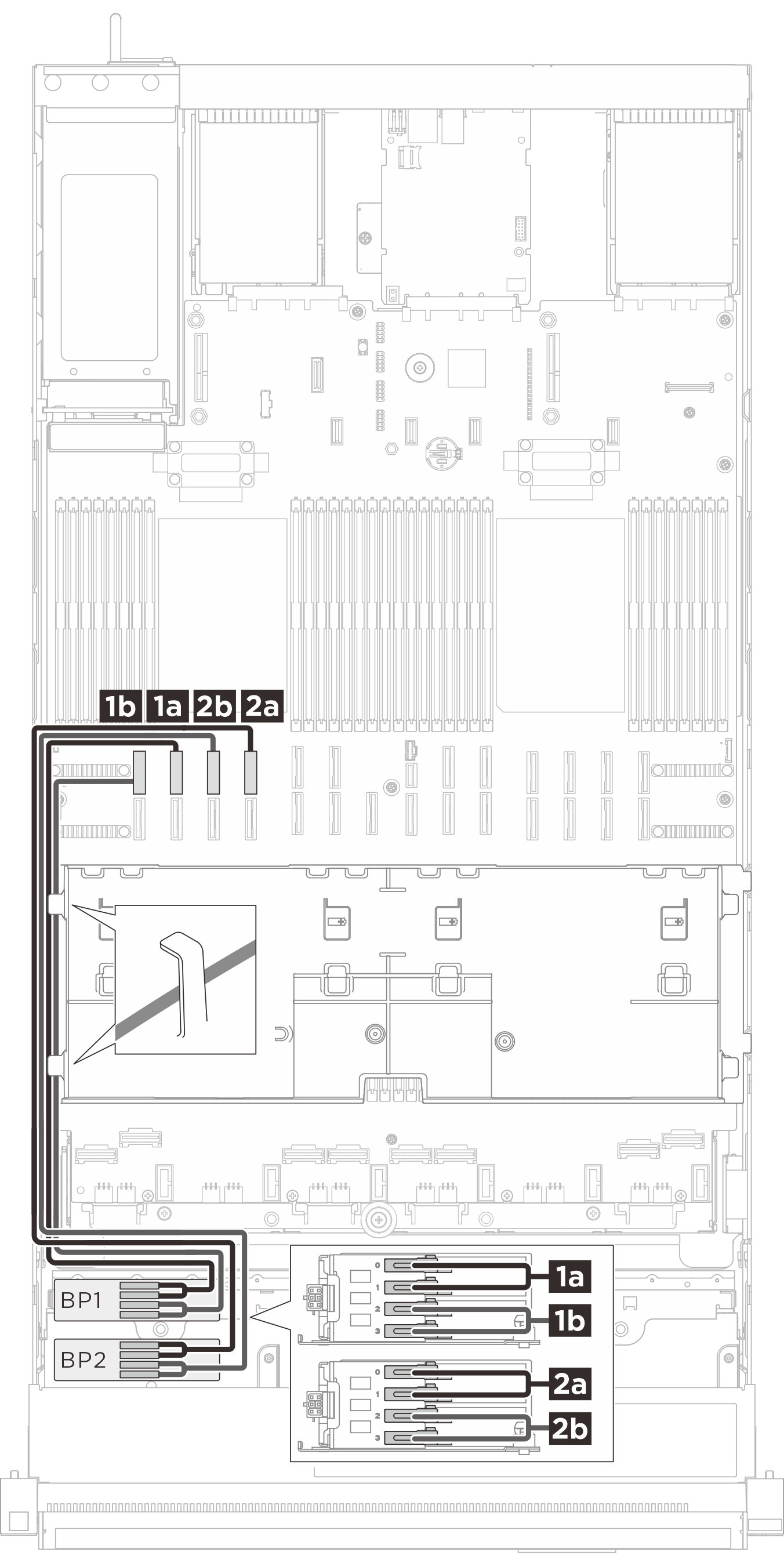

| MCIO x8 to Gen-Z 2C (560 mm) | 1a BP 1: Bay 1 | 1a NVMe 10 |
| MCIO x8 to Gen-Z 2C (560 mm) | 1b BP1: Bay 3 | 1b NVMe 9 |
| MCIO x8 to Gen-Z 2C (560 mm) | 2a BP2: Bay 1 | 2a NVMe 14 |
| MCIO x8 to Gen-Z 2C (560 mm) | 2b BP2: Bay 3 | 2b NVMe 13 |
| Swift x8 to Gen-Z 2C (330 mm) | 3a BP3: Bay 1 | 3a NVMe 1 |
| Swift x8 to Gen-Z 2C (330 mm) | 3b BP3: Bay 3 | 3b NVMe 2 |
| Swift x8 to Gen-Z 2C (330 mm) | 4a BP 4: Bay 1 | 4a NVMe 3 |
| Swift x8 to Gen-Z 2C (330 mm) | 4b BP 4: Bay 3 | 4b NVMe 4 |

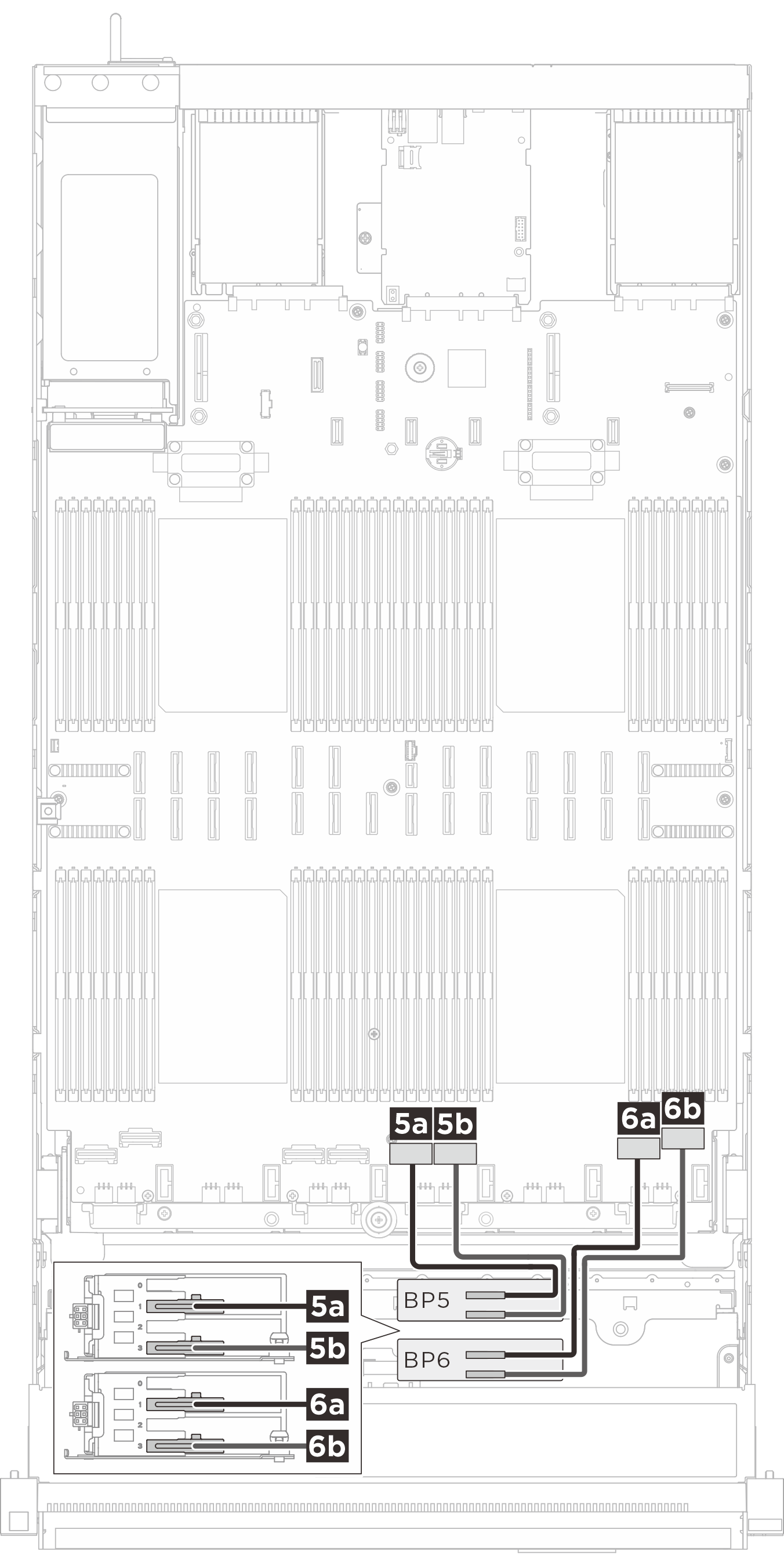

| Roteamento de cabos de sinal BP5/BP6 | Roteamento de cabos de sinal BP7/BP8 |
|---|---|
 |  |
| Cabo | De (backplane) | Para (conjunto de placa-mãe) |
|---|---|---|
| Swift x8 to Gen-Z 2C (330 mm) | 5a BP 5: Bay 1 | 5a NVMe 5 |
| Swift x8 to Gen-Z 2C (330 mm) | 5b BP 5: Bay 3 | 5b NVMe 6 |
| Swift x8 to Gen-Z 2C (330 mm) | 6a BP 6: Bay 1 | 6a NVMe 7 |
| Swift x8 to Gen-Z 2C (330 mm) | 6b BP 6: Bay 3 | 6b NVMe 8 |
| MCIO x8 to Gen-Z 2C (560 mm) | 7a BP 7: Bay 1 | 7a NVMe 11 |
| MCIO x8 to Gen-Z 2C (560 mm) | 7b BP 7: Bay 3 | 7b NVMe 12 |
| MCIO x8 to Gen-Z 2C (560 mm) | 8a BP 8: Bay 1 | 8a NVMe 15 |
| MCIO x8 to Gen-Z 2C (560 mm) | 8b BP 8: Bay 3 | 8b NVMe 16 |
Roteamento de cabo de sinal do backplane SAS/SATA
Adaptadores RAID/HBA Gen 4: 545-8i/940-8i/940-16i/440-16i
Adaptadores RAID/HBA Gen 3: 5350-8i/9350-8i/4350-16i
1 x backplane: 1 x RAID/HBA 8i
2 x backplanes: 1 x RAID/HBA 16i
3 x backplanes: 1 x RAID/HBA 8i + 1 x RAID/HBA 16i

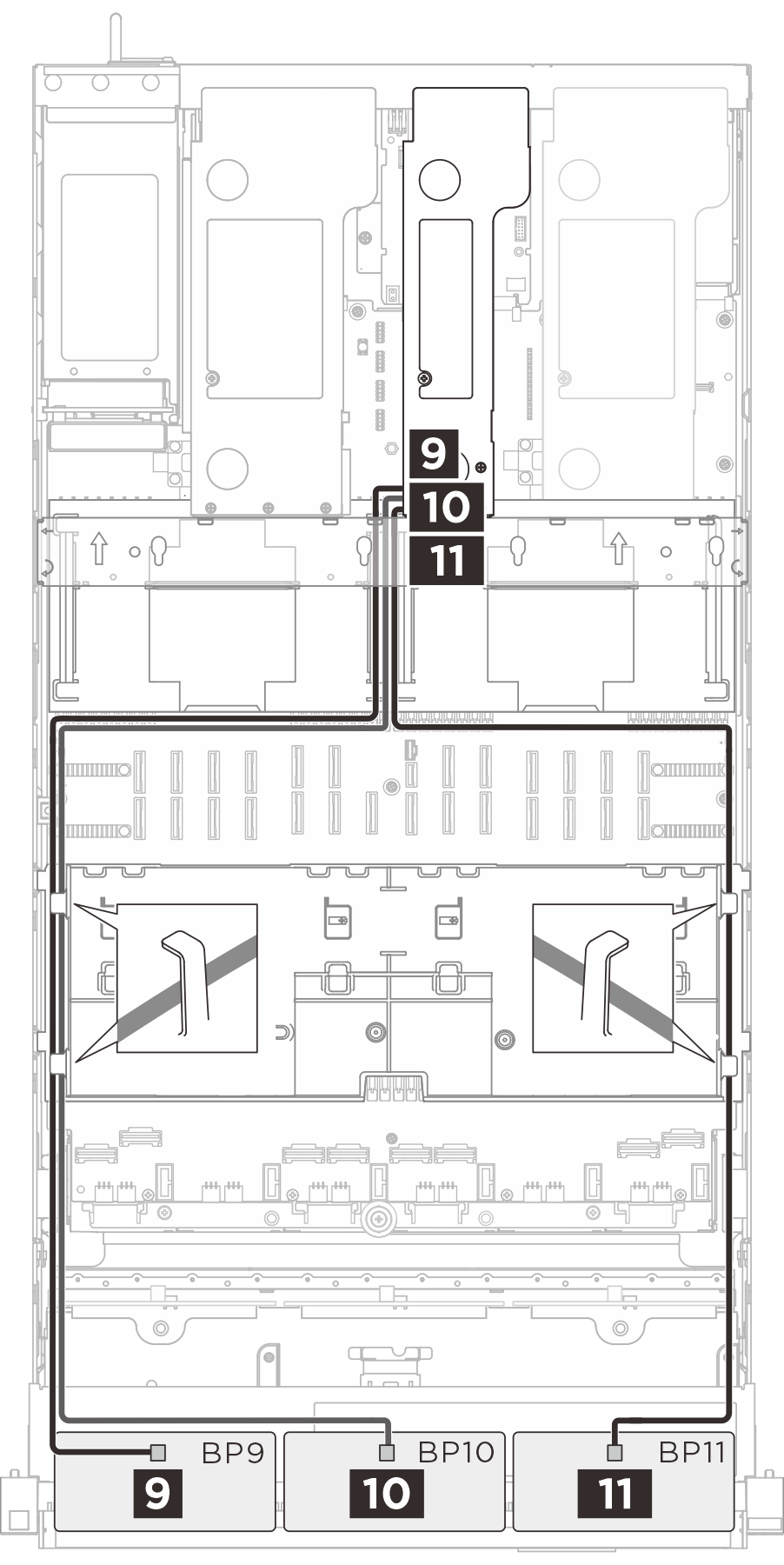

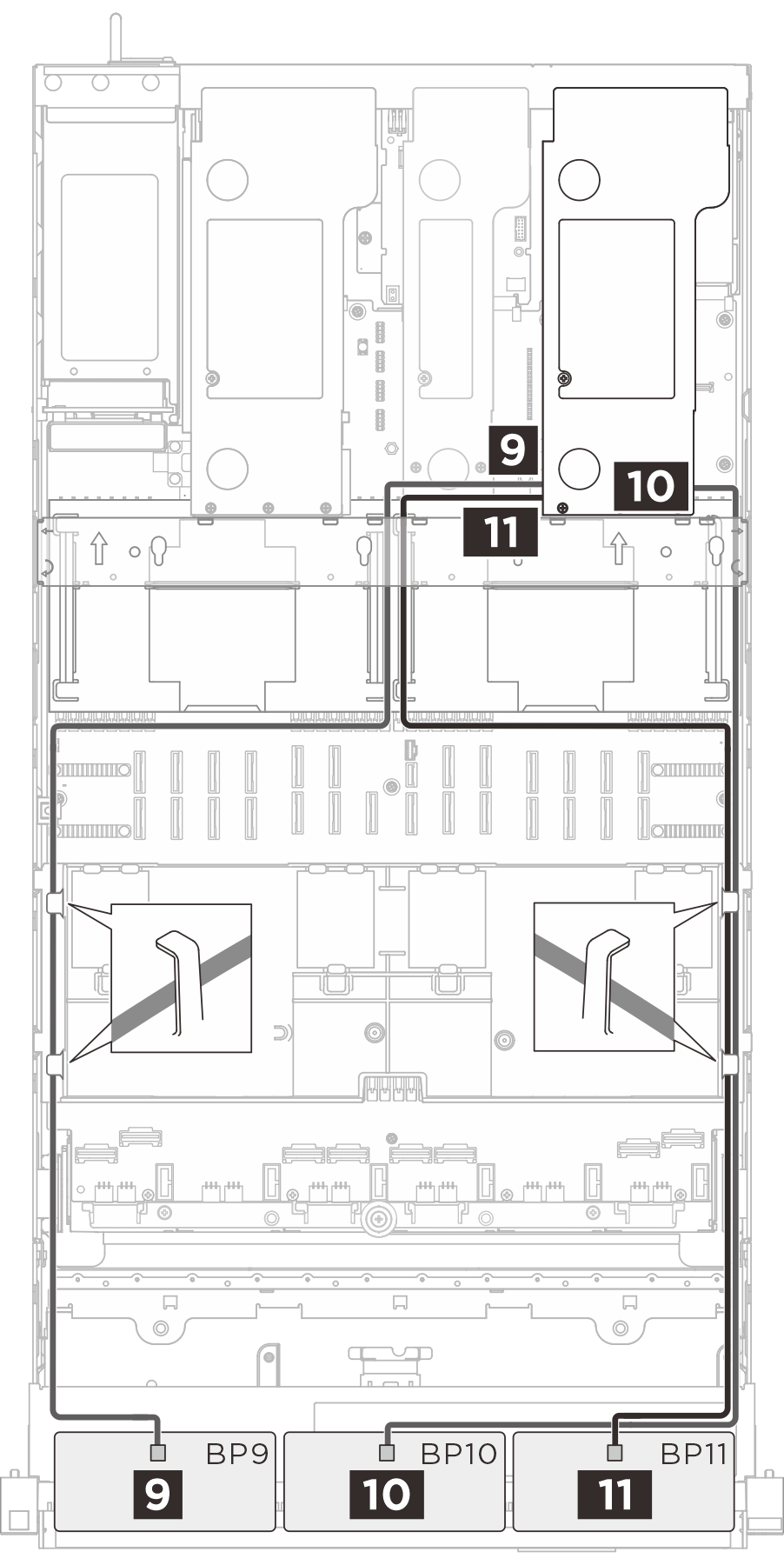

Dependendo da configuração, os adaptadores RAID/HBA serão instalados em diferentes placas riser. Com base na localização do adaptador RAID/HBA, selecione o caminho de roteamento correspondente na tabela a seguir.

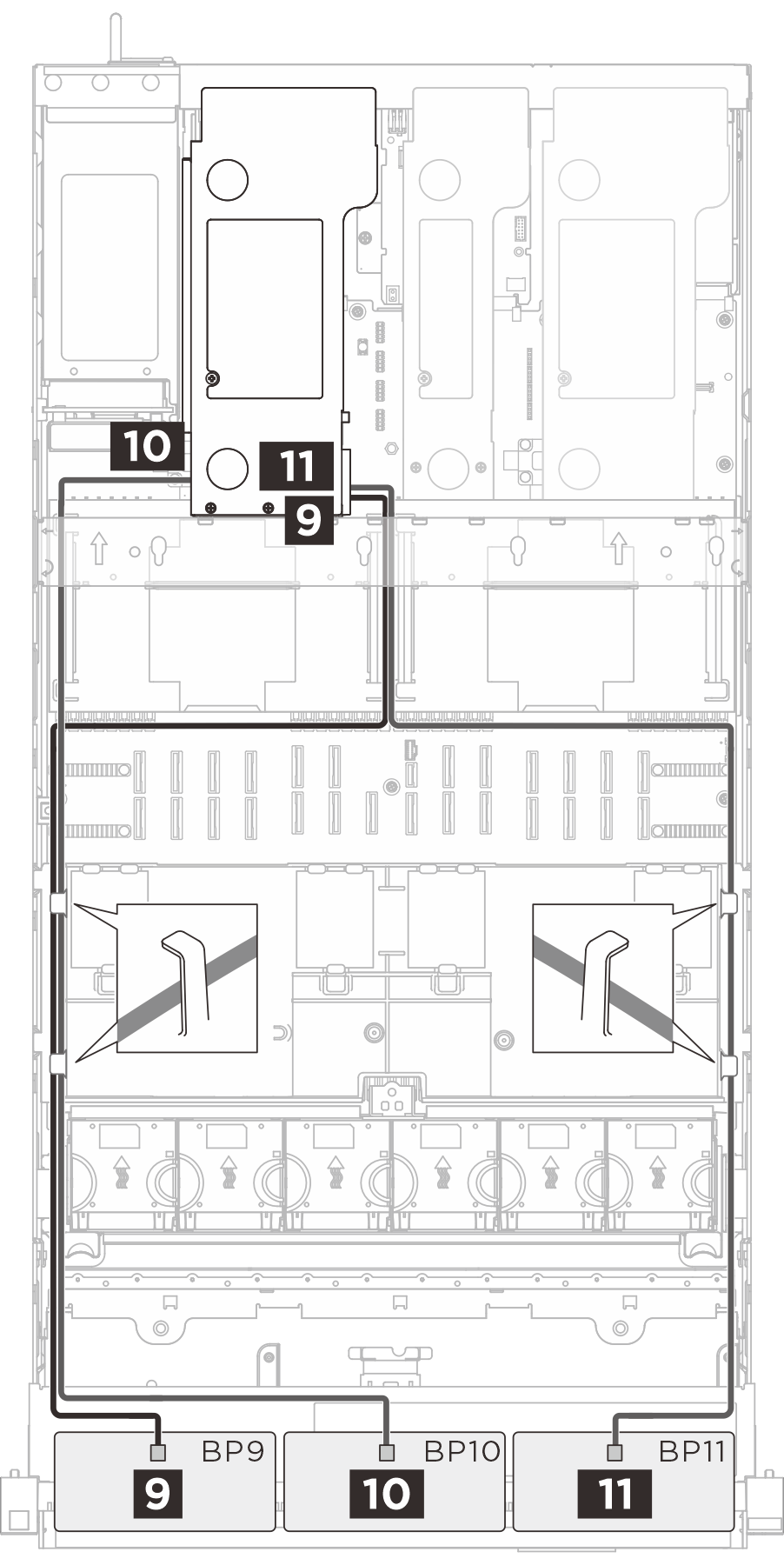

| Roteamento de cabos para placa riser 3 | Roteamento de cabos para placa riser 2 | Roteamento de cabos para placa riser 1 |
|---|---|---|
 |  |  |
| Cabo | De (backplane) | Para (adaptador RAID/HBA) |
|---|---|---|

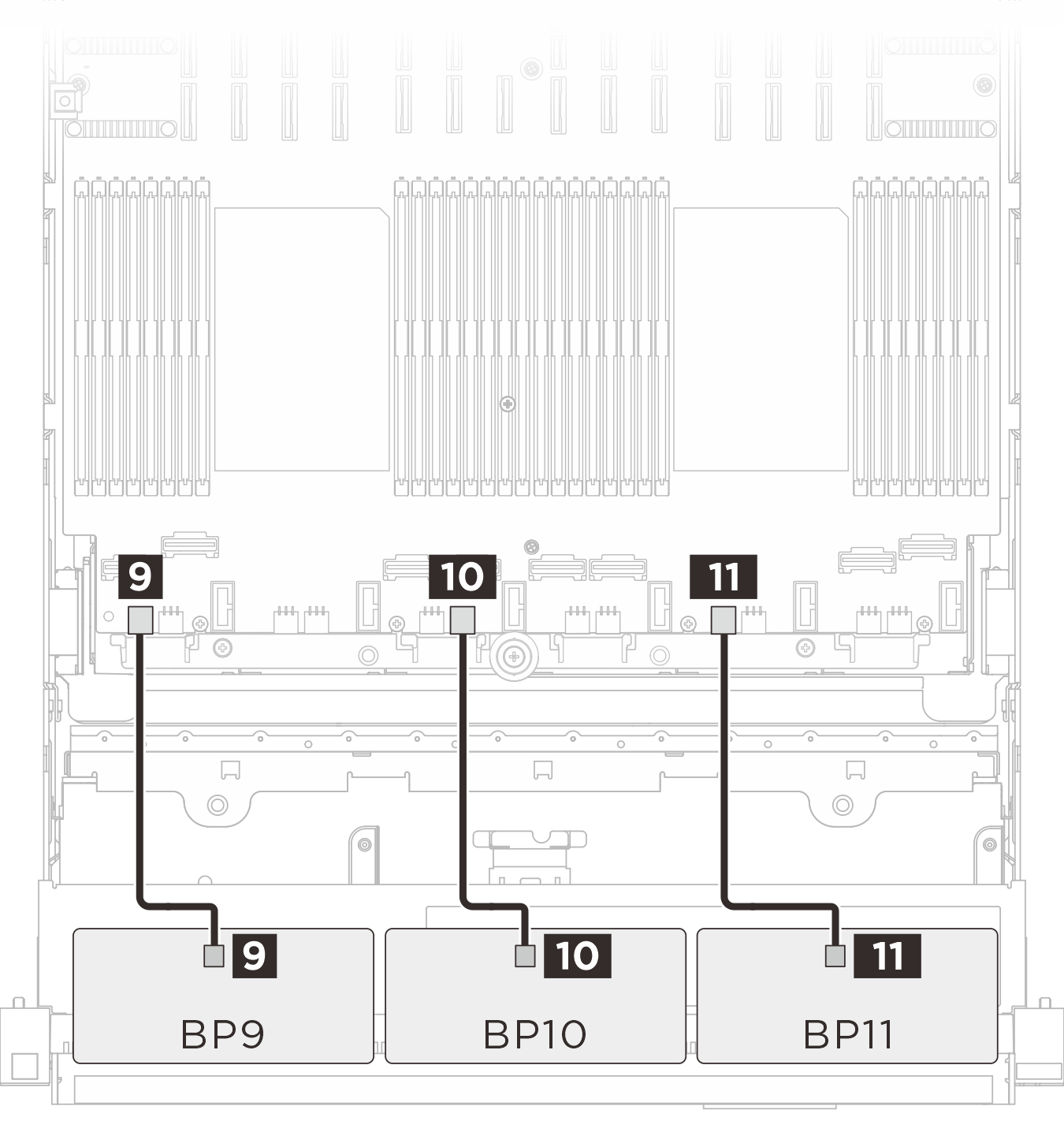

| 9 BP 9: SAS | 9
|
| 10 BP 10: SAS | 10
|
| 11 BP 11: SAS | 11
|
