1 x AnyBay backplane
Use this section to understand the signal cable routing for one AnyBay backplane.
Note
- Ensure that you observe the installation rules and sequence order in PCIe riser and adapter installation rules and order and Drive backplane installation rules and order.
- For more information on the power cable routing, see 2.5-inch drive backplane power cable routing.
- Depending on your configuration, the RAID/HBA adapter will be installed in different riser locations.
- Connections between connectors; 1↔1, 2↔2, 3↔3, ... n↔n
- When routing the cables, ensure that all cables are routed appropriately through the cable guides.
This configuration contains the following storage controller combinations:
No RAID/HBA adapters
Note
The AnyBay backplanes are used as pure NVMe backplanes when no RAID/HBA adapters are installed.

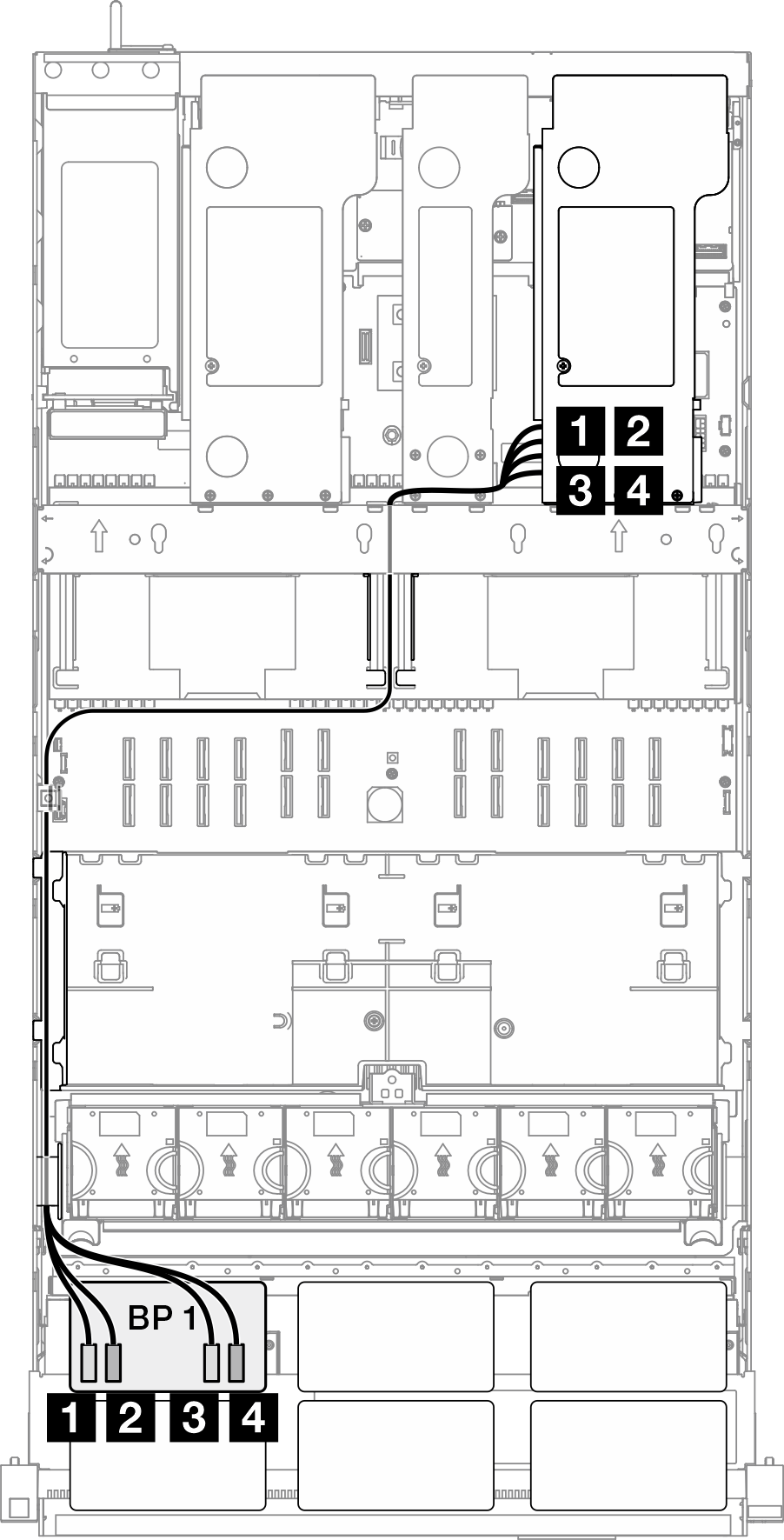

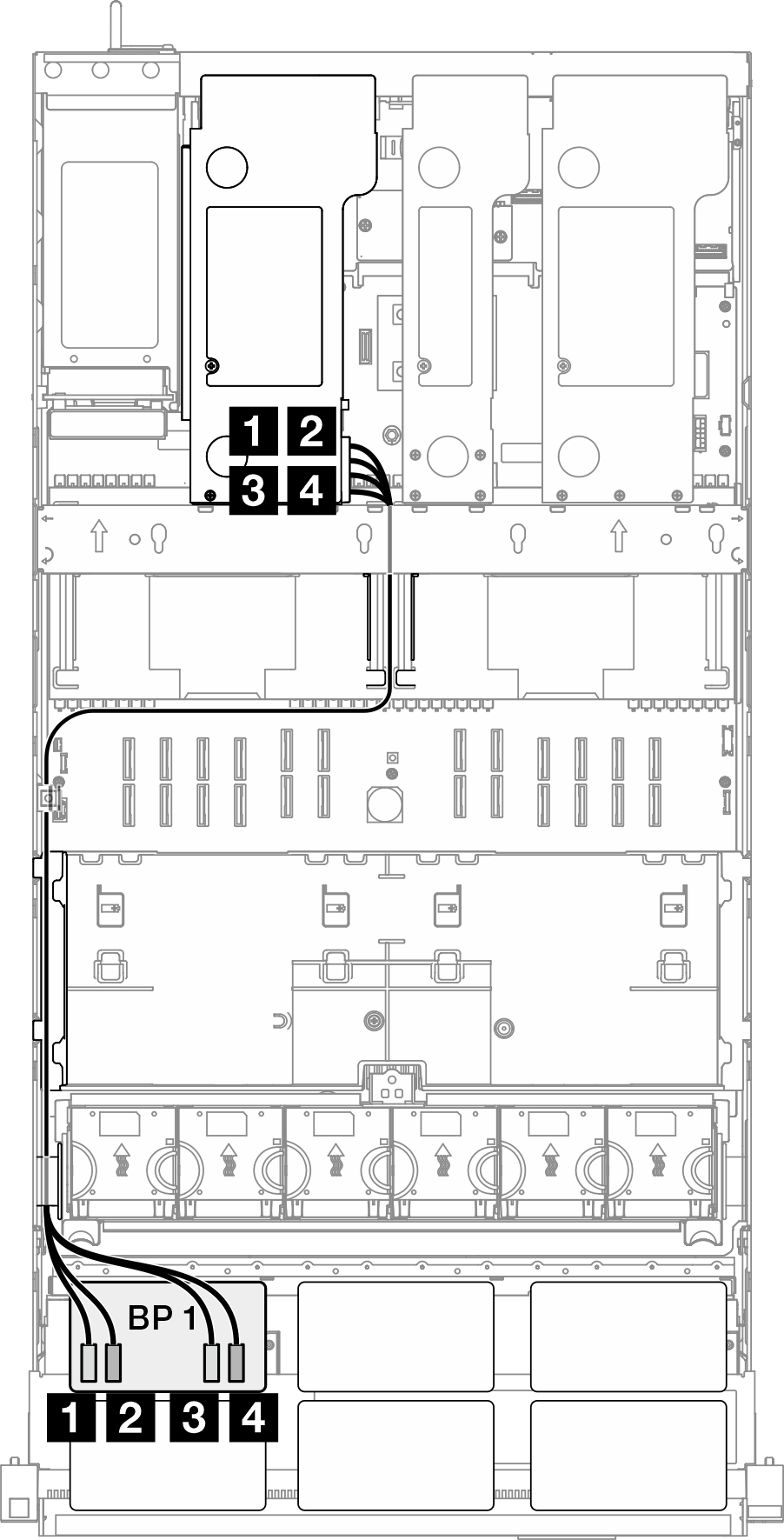

| NVMe cable routing | ||
|---|---|---|
 | ||
| From | To | Cable |
| 1 BP1: NVMe 0-1 | System board: NVMe 10 | MCIO x8 to MCIO x8 (440 mm) |
| 2 BP1: NVMe 2-3 | System board: NVMe 9 | MCIO x8 to MCIO x8 (440 mm) |
| 3 BP1: NVMe 4-5 | System board: NVMe 1 | MCIO x8 to Swift x8 (190 mm) |
| 4 BP1: NVMe 6-7 | System board: NVMe 2 | MCIO x8 to Swift x8 (190 mm) |
8i RAID/HBA adapter
| NVMe cable routing | ||
|---|---|---|
| ||
| From | To | Cable |
| 1 BP1: NVMe 0-1 | System board: NVMe 10 | MCIO x8 to MCIO x8 (440 mm) |
| 2 BP1: NVMe 2-3 | System board: NVMe 9 | MCIO x8 to MCIO x8 (440 mm) |
| 3 BP1: NVMe 4-5 | System board: NVMe 1 | MCIO x8 to Swift x8 (190 mm) |
| 4 BP1: NVMe 6-7 | System board: NVMe 2 | MCIO x8 to Swift x8 (190 mm) |
| SAS/SATA cable routing to riser 3 | SAS/SATA cable routing to riser 2 | SAS/SATA cable routing to riser 1 |
|---|---|---|
 |  |  |
Note Depending on your configuration, the RAID/HBA adapter will be installed in different riser locations. | ||
| From | To | Cable |
| 1 BP1: SAS/SATA |
|
|
8i RAID adapter (Tri-mode)
| SAS/SATA cable routing to riser 3 | SAS/SATA cable routing to riser 2 | SAS/SATA cable routing to riser 1 |
|---|---|---|
| | |
Note Depending on your configuration, the RAID/HBA adapter will be installed in different riser locations. | ||
| From | To | Cable |
| 1 BP1: SAS/SATA | 8i Gen 4: C0 | Gen 4: SlimSAS x8 to SlimSAS x8 (1000 mm) |
16i RAID/HBA adapter
| NVMe cable routing | ||
|---|---|---|
| ||
| From | To | Cable |
| 1 BP1: NVMe 0-1 | System board: NVMe 10 | MCIO x8 to MCIO x8 (440 mm) |
| 2 BP1: NVMe 2-3 | System board: NVMe 9 | MCIO x8 to MCIO x8 (440 mm) |
| 3 BP1: NVMe 4-5 | System board: NVMe 1 | MCIO x8 to Swift x8 (190 mm) |
| 4 BP1: NVMe 6-7 | System board: NVMe 2 | MCIO x8 to Swift x8 (190 mm) |
| SAS/SATA cable routing to riser 3 | SAS/SATA cable routing to riser 2 | SAS/SATA cable routing to riser 1 |
|---|---|---|
| | |
Note Depending on your configuration, the RAID/HBA adapter will be installed in different riser locations. | ||
| From | To | Cable |
| 1 BP1: SAS/SATA |
|
|
16i RAID/HBA adapter (Tri-mode)
| SAS/SATA cable routing to riser 3 | SAS/SATA cable routing to riser 2 | SAS/SATA cable routing to riser 1 |
|---|---|---|
| | |
Note Depending on your configuration, the RAID/HBA adapter will be installed in different riser locations. | ||
| From | To | Cable |
| 1 BP1: SAS/SATA | 16i Gen 4: C0 | Gen 4: SlimSAS x8 to SlimSAS x8 (1000 mm) |
32i RAID adapter
| NVMe cable routing | ||
|---|---|---|
| ||
| From | To | Cable |
| 1 BP1: NVMe 0-1 | System board: NVMe 10 | MCIO x8 to MCIO x8 (440 mm) |
| 2 BP1: NVMe 2-3 | System board: NVMe 9 | MCIO x8 to MCIO x8 (440 mm) |
| 3 BP1: NVMe 4-5 | System board: NVMe 1 | MCIO x8 to Swift x8 (190 mm) |
| 4 BP1: NVMe 6-7 | System board: NVMe 2 | MCIO x8 to Swift x8 (190 mm) |
| SAS/SATA cable routing to riser 3 | SAS/SATA cable routing to riser 1 | |
|---|---|---|
| | |
Note Depending on your configuration, the RAID/HBA adapter will be installed in different riser locations. | ||
| From | To | Cable |
| 1 BP1: SAS/SATA | 32i Gen 4: C0 | Gen 4: SlimSAS x8 to SlimSAS x8 (1000 mm) |
