PCIe riser 2 cable routing
Follow the instructions in this section to learn how to do cable routing for the PCIe riser 2.
Note
When routing the cables, make sure that all cables are routed appropriately through the corresponding cable guides and cable clips.
Six-slot PCIe riser 2 cable routing

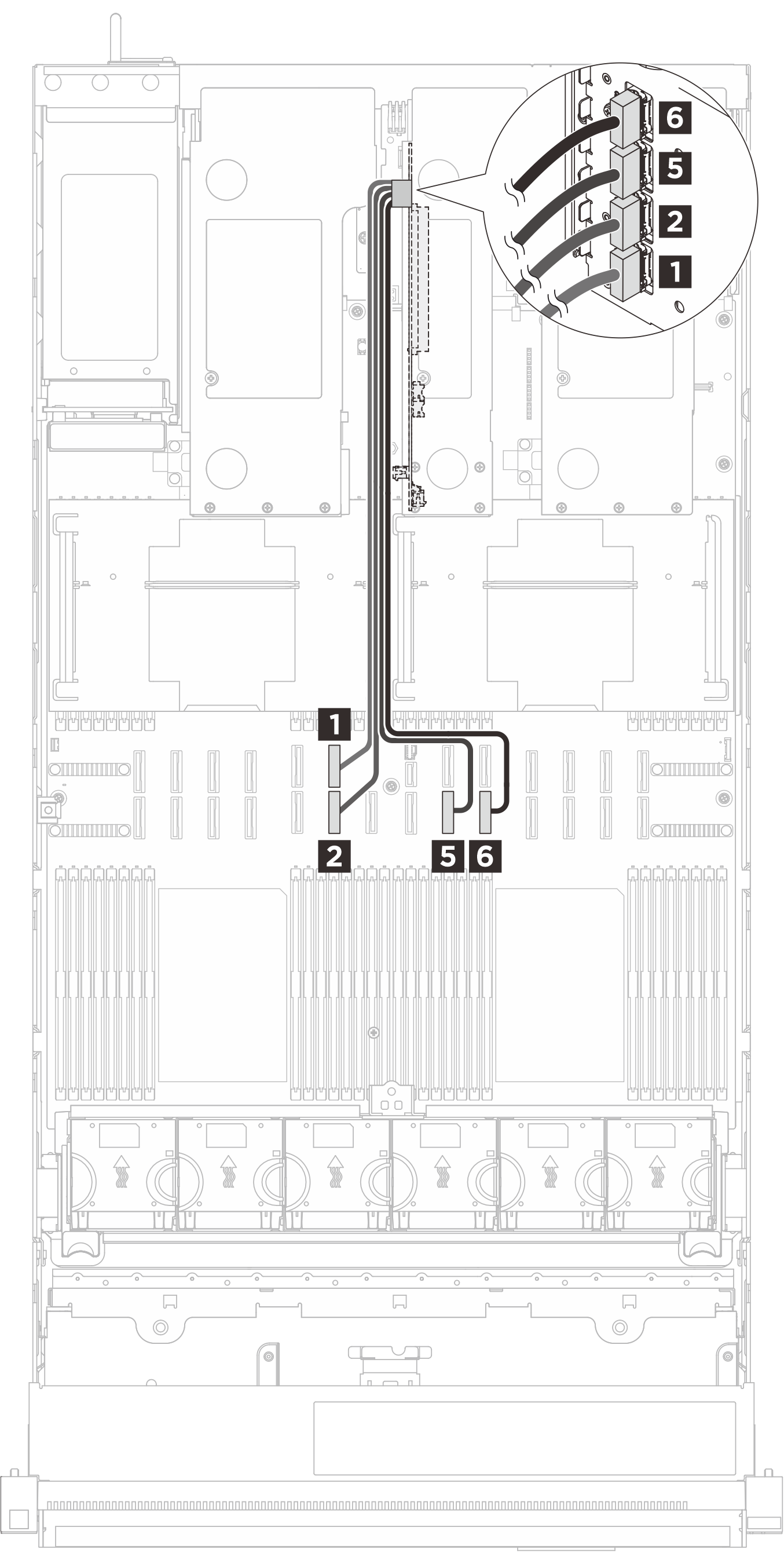

The following illustration shows cable routing for the six-slot PCIe riser 2.
 |  |
| Cable | From (riser card) | To (system board assembly) |
|---|---|---|
| MCIO x8 to Swift x8 (440 mm, flat 140 mm) | 1 R1 | 1 P18 |
| MCIO x8 to Swift x8 (440 mm, flat 140 mm) | 2 R2 | 2 P6 |
| MCIO x8 to Swift x8 (320 mm) | 3 R3 | 3 P5 |
| MCIO x8 to Swift x8 (320 mm) | 4 R4 | 4 P20 |
| MCIO x8 to Swift x8 (440 mm, flat 140 mm) | 5 R5 | 5 P9 |
| MCIO x8 to Swift x8 (500 mm, flat 140 mm) | 6 R6 | 6 P10 |
