Install a system fan-pack
Use this information to install a system fan-pack. You can install a hot-swap fan without powering off the server, which helps you avoid significant interruption to the operation of the system.
About this task
Hazardous energy present. Voltages with hazardous energy might cause heating when shorted with metal, which might result in spattered metal, burns, or both.
Read Installation Guidelines and Safety inspection checklist to ensure that you work safely.
Power off the server and peripheral devices and disconnect the power cords and all external cables. See Power off the server.
Keep static-sensitive parts in their static-protective packages until installation to prevent exposure to static electricity. Handle the parts with an electrostatic-discharge wrist strap or other grounding systems. Place the parts on a static-protective surface.
Procedure
Align the four corners of the fan to fan-pack socket and put it down.
NoteEnsure that fan installation meets Thermal rules.
Figure 1. System fan-pack installation
To install the system fan-pack for Compute Complex Neptune Core Module:

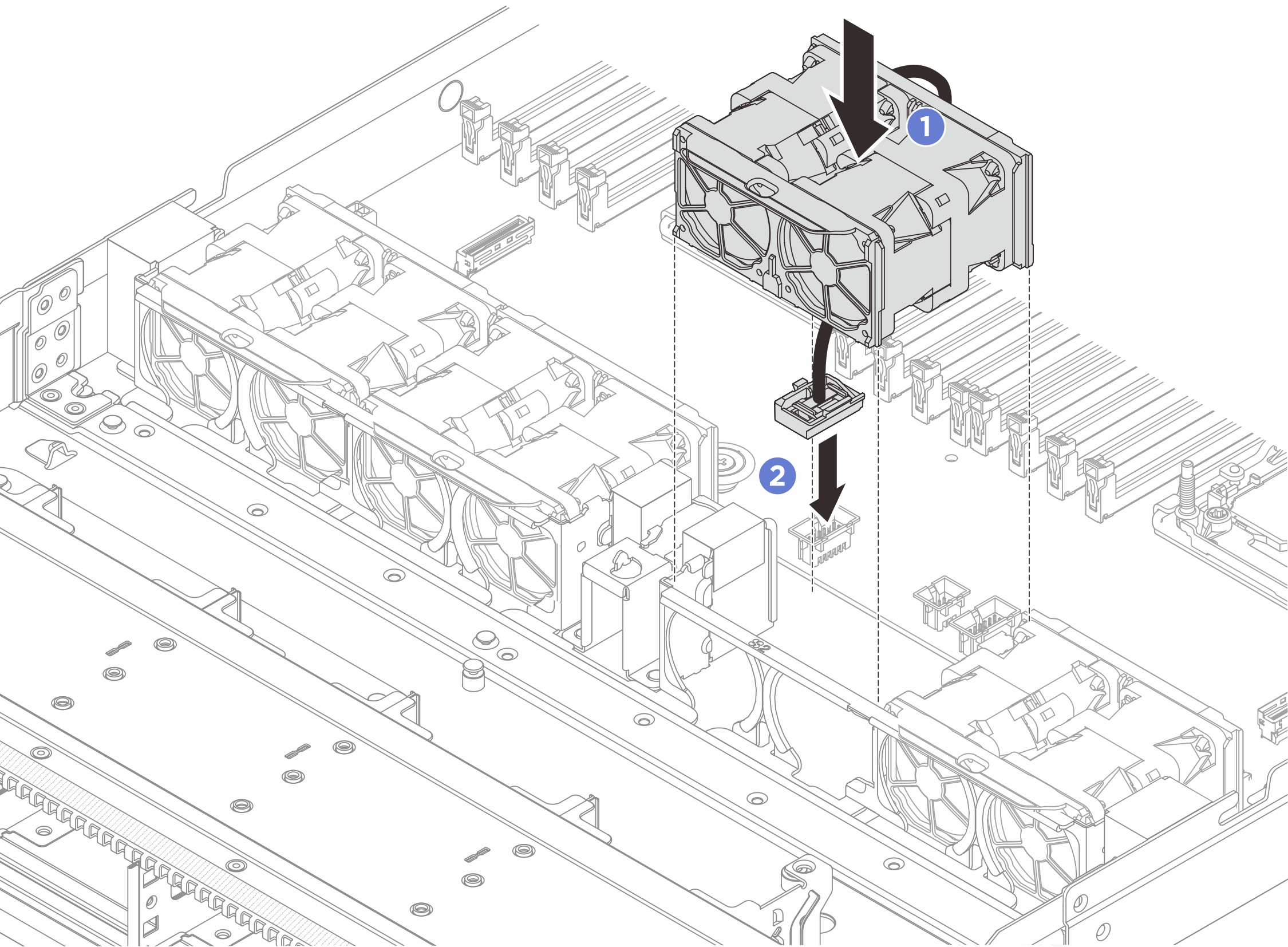

Figure 2. System fan-pack installation for Compute Complex Neptune Core Module
Align the four corners of the fan to fan-pack socket and put it down.
Connect the cable of the system fan-pack.
