Disposición de los cables de la placa posterior E3.S

En esta sección se proporciona información sobre la conexión de los cables de la placa posterior para modelos de servidor con bahías E3.S frontales.

Configuraciones E3.S admitidas

Los modelos de servidor con bahías de unidad E3.S admiten las siguientes configuraciones:


1T: unidad de intercambio en caliente E3.S; 2T: memoria sin intercambio en caliente CXL E3.S (CMM)

BP1

BP2

BP3

BP4

BP5

BP6

BP7

BP8

 Procesador 1


2x2T




4x1T



4x1T




2x2T



2x2T




4x1T



2x2T




2x2T

2x2T

2x2T




4x1T

4x1T

4x1T

4x1T



4x1T

2x2T

4x1T

2x2T



4x1T

2x2T

2x2T

2x2T

Procesador 2Procesador 1

4x1T



4x1T



2x2T



2x2T



4x1T



4x1T



4x1T



4x1T



2x2T



2x2T



2x2T



2x2T



4x1T



2x2T



4x1T



2x2T



4x1T

4x1T

4x1T



4x1T

4x1T

4x1T



2x2T

2x2T

2x2T



2x2T

2x2T

2x2T



4x1T

2x2T

2x2T



4x1T

2x2T

2x2T



4x1T

2x2T

4x1T



4x1T

2x2T

4x1T



4x1T

4x1T

4x1T

4x1T

4x1T

4x1T

4x1T

4x1T

4x1T

2x2T

2x2T

2x2T

4x1T

2x2T

2x2T

2x2T

4x1T

2x2T

4x1T

2x2T

4x1T

2x2T

4x1T

2x2T

4x1T

4x1T

4x1T

2x2T

4x1T

4x1T

4x1T

2x2T

Conexiones del cable de alimentación

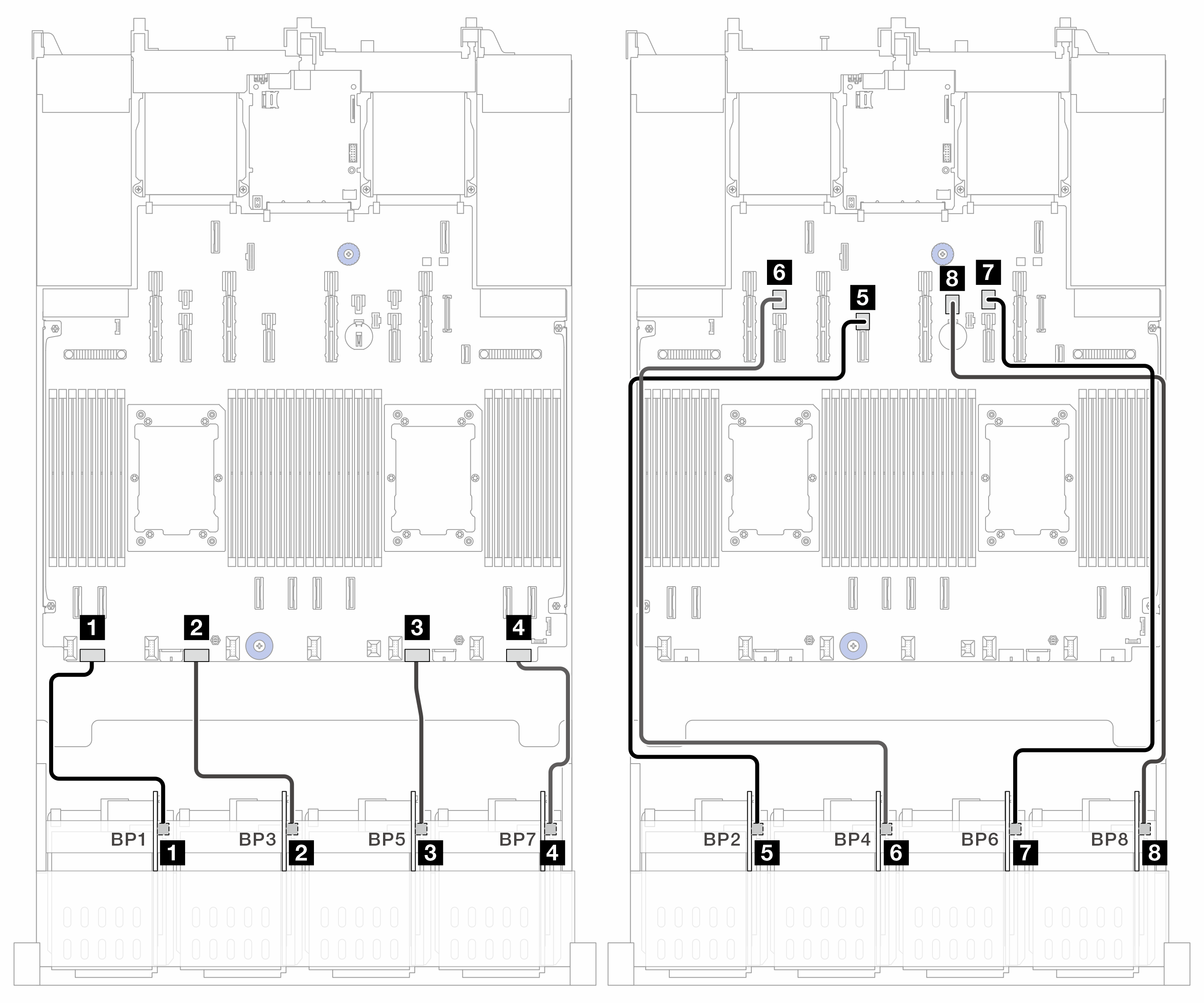

Figura 1. Conexiones del cable de alimentación

DesdeA (placa del procesador)Longitud del cable
1 BP1: PWR1 PWR 1250 mm
2 BP3: PWR2 PWR 2250 mm
3 BP5: PWR3 PWR 3250 mm
4 BP7: PWR4 PWR 4250 mm
5 BP2: PWR5 PWR 12700 mm
6 BP4: PWR6 PWR 23700 mm
7 BP6: PWR7 PWR 20700 mm
8 BP8: PWR8 PWR 21700 mm

Conexiones del cable de señal

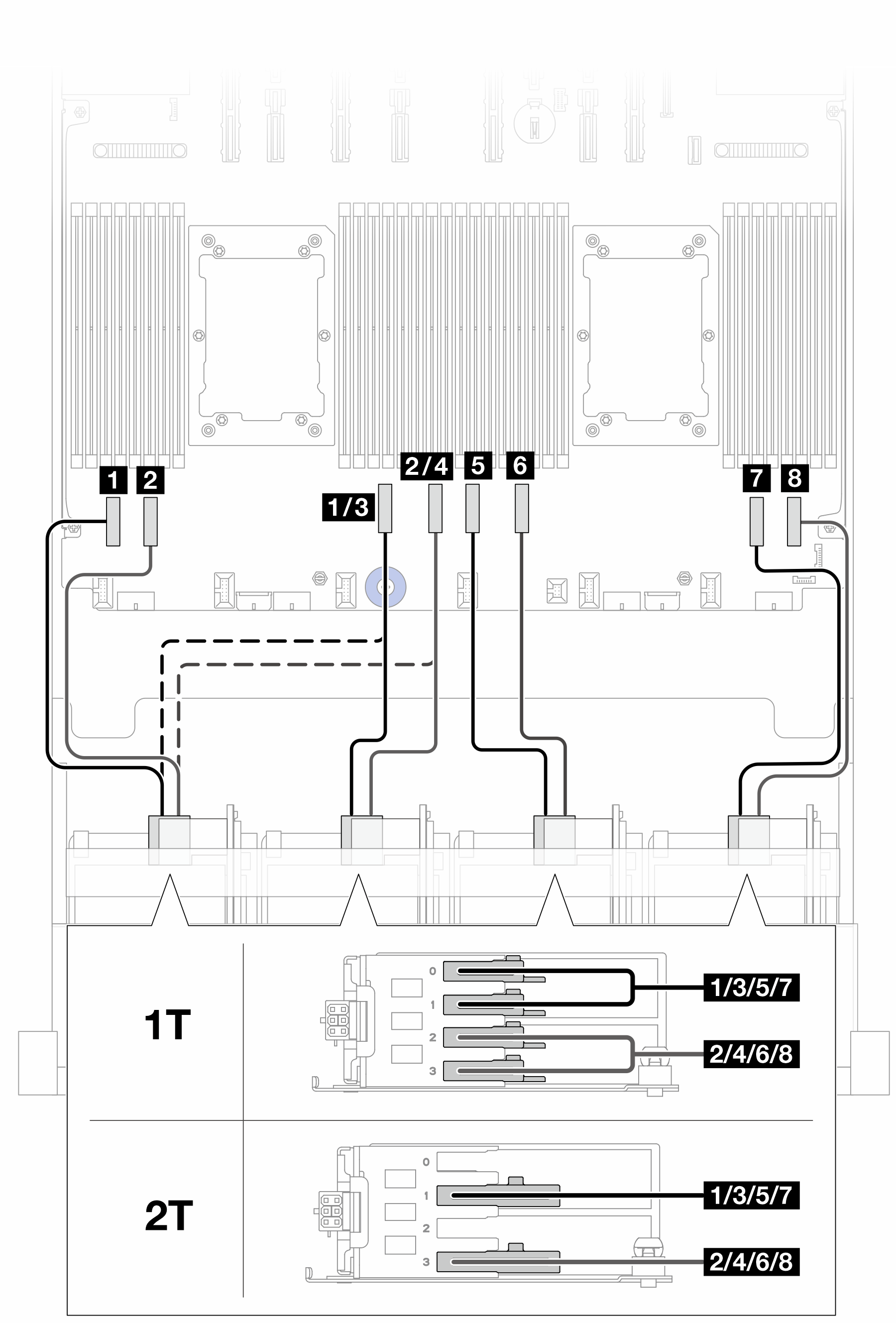

Figura 2. Conexiones del cable de señal para BP 1/3/5/7

DesdeA (placa del procesador)Longitud del cable
1
  • BP1: Bahía 0-1 (1T)

  • BP1: Bahía 1 (2T)

1
  • PCIe 8 (cuando BP3 está instalado)

  • PCIe 6 (cuando BP3 no está instalado)

300 mm
2
  • BP1: Bahía 2-3 (1T)

  • BP1: Bahía 3 (2T)

2
  • PCIe 7 (cuando BP3 está instalado)

  • PCIe 5 (cuando BP3 no está instalado)

300 mm
3
  • BP3: Bahía 0-1 (1T)

  • BP3: Bahía 1 (2T)

3 PCIe 6300 mm
4
  • BP3: Bahía 2-3 (1T)

  • BP3: Bahía 3 (2T)

4 PCIe 5300 mm
5
  • BP5: Bahía 0-1 (1T)

  • BP5: Bahía 1 (2T)

5 PCIe 4300 mm
6
  • BP5: Bahía 2-3 (1T)

  • BP5: Bahía 3 (2T)

6 PCIe 3300 mm
7
  • BP7: Bahía 0-1 (1T)

  • BP7: Bahía 1 (2T)

7 PCIe 2300 mm
8
  • BP7: Bahía 2-3 (1T)

  • BP7: Bahía 3 (2T)

8 PCIe 1300 mm

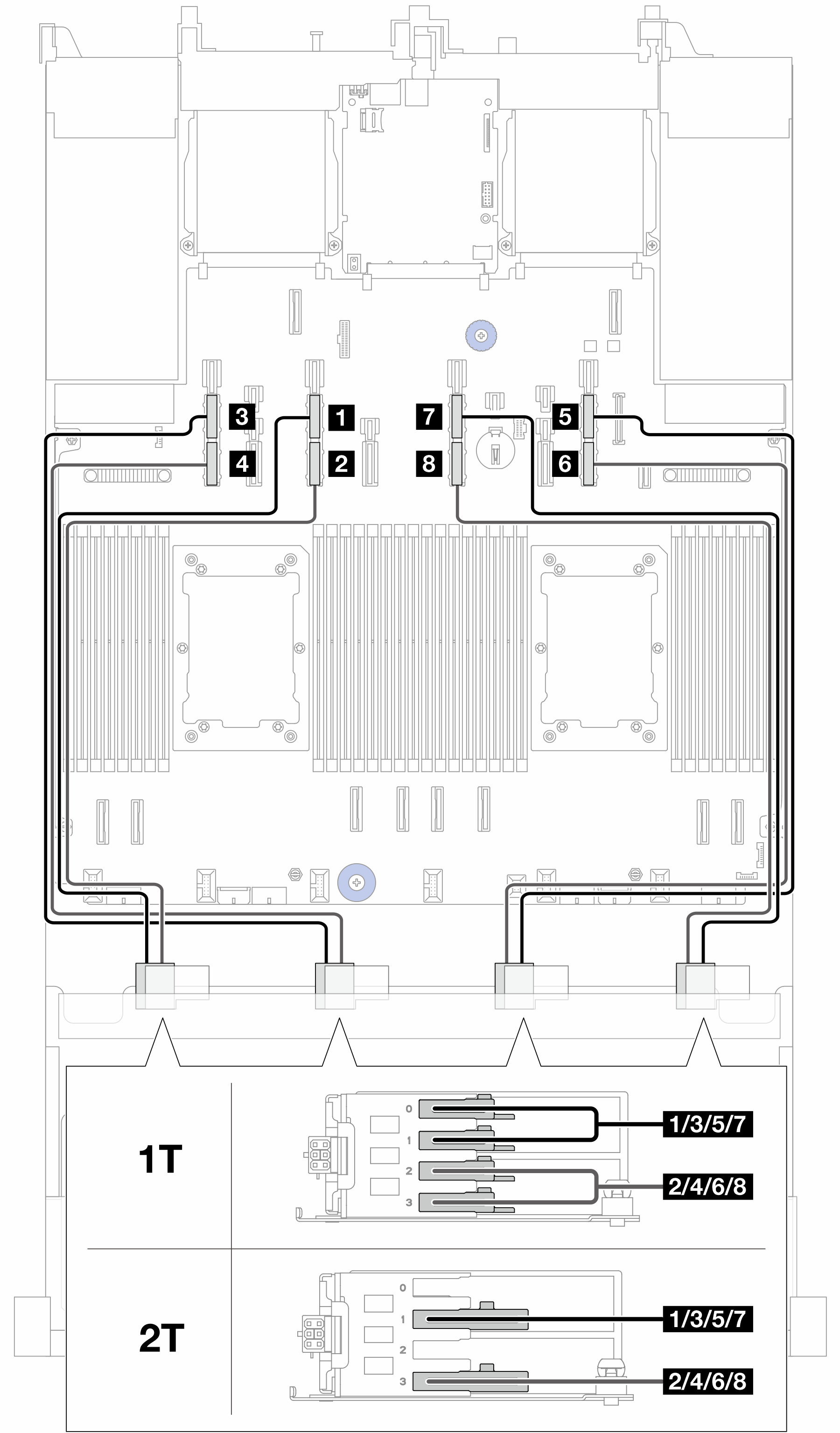

Figura 3. Conexiones del cable de señal para BP 2/4/6/8

DesdeA (placa del procesador)Longitud del cable
1
  • BP2: Bahía 0-1 (1T)

  • BP2: Bahía 1 (2T)

1 PCIe 13A630 mm
2
  • BP2: Bahía 2-3 (1T)

  • BP2: Bahía 3 (2T)

2 PCIe 13B630 mm
3
  • BP4: Bahía 0-1 (1T)

  • BP4: Bahía 1 (2T)

3 PCIe 15A630 mm
4
  • BP4: Bahía 2-3 (1T)

  • BP4: Bahía 3 (2T)

4 PCIe 15B630 mm
5
  • BP6: Bahía 0-1 (1T)

  • BP6: Bahía 1 (2T)

5 PCIe 9A630 mm
6
  • BP6: Bahía 2-3 (1T)

  • BP6: Bahía 3 (2T)

6 PCIe 9B630 mm
7
  • BP8: Bahía 0-1 (1T)

  • BP8: Bahía 1 (2T)

7 PCIe 11A630 mm
8
  • BP8: Bahía 2-3 (1T)

  • BP8: Bahía 3 (2T)

8 PCIe 11B630 mm
